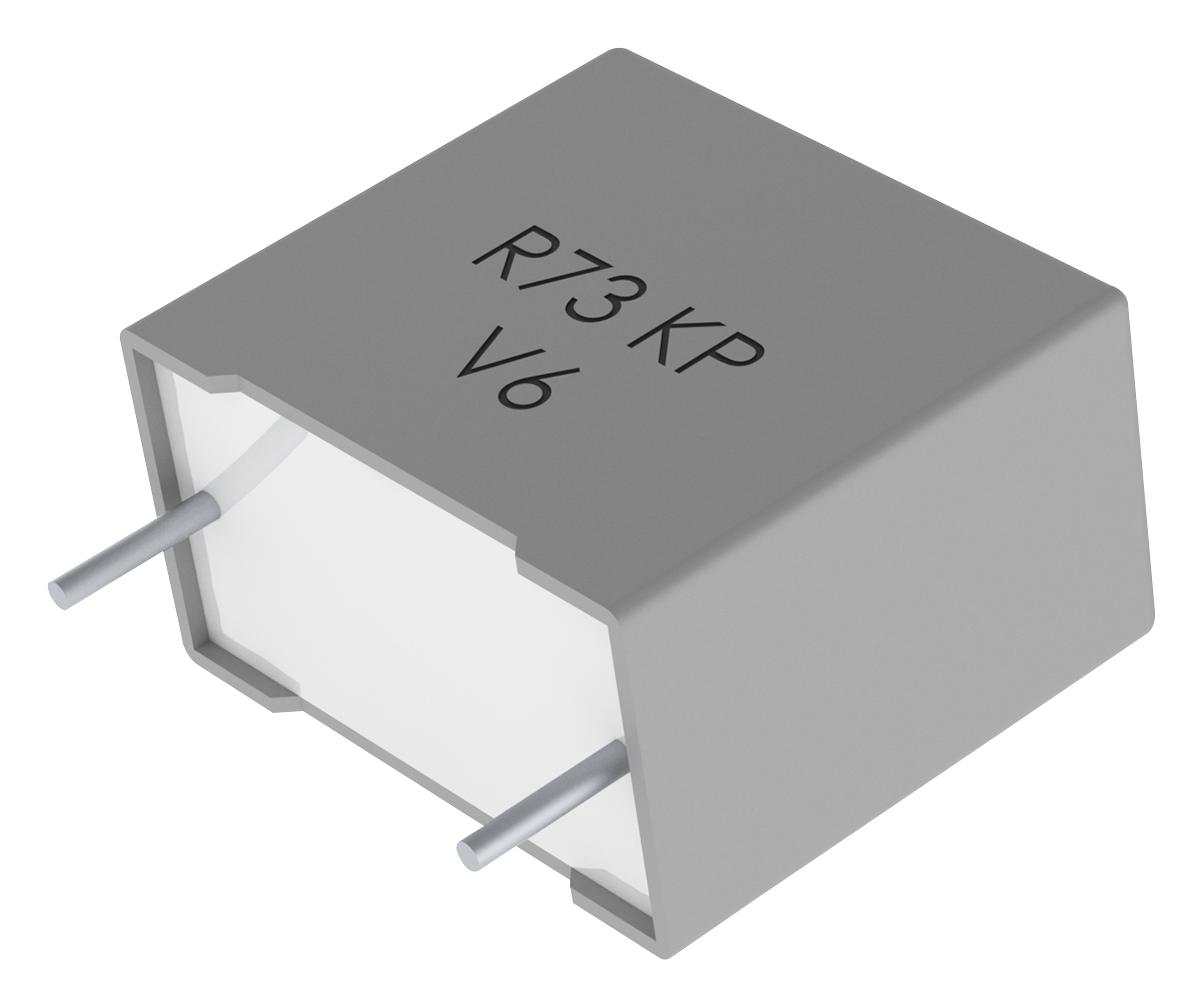

KEMET R73RI12204000J automotive polypropylene capacitor
This high-quality film/foil polypropylene capacitor features 2200 pF capacitance, 5% tolerance, 1250 VDC rating, and a -55°C to +105°C temperature range. Designed for automotive applications, it offers excellent pulse performance and RoHS compliance. The radial lead configuration includes wire leads with a 15mm lead spacing, making it suitable for precision circuits requiring stable dielectric properties and high voltage endurance. Its compact size (18mm length) ensures easy integration into various electronic systems, especially in automotive and industrial environments.
KEMET R73RI12204000J automotive polypropylene capacitor Specifications:
- Capacitance: 2200 pF
- Capacitance Tolerance: 5%
- Voltage DC: 1250 VDC
- Voltage AC: 450 VAC
- Temperature Range: -55°C to +105°C
- Rated Temperature: 85°C
- Dielectric: Film/Foil Polypropylene
- Lead Spacing: 15mm
- Dimensions: Length 18mm +0.3/-0.5mm
- Lead Type: Wire Leads
- Insulation Resistance: 100 GOhms
- Dissipation Factor: 0.03% at 1kHz
- Max dv/dt: 30000 V/us
- Inductance: 10 nH
- RoHS: Yes
- Qualifications: AEC-Q200
- Packaging: Bag, 1000 units
Buy the KEMET R73RI12204000J – Reliable Automotive Grade Polypropylene Capacitor for Industrial Applications
Purchase the KEMET R73RI12204000J today—engineered for automotive and industrial electronics. This polypropylene film capacitor offers 2200 pF capacitance, 1250 VDC voltage rating, and temperature tolerance from -55°C to +105°C. Featuring RoHS compliance, radial lead configuration with wire leads, and a compact size of 18mm, it ensures high reliability in pulse and high-voltage applications. Whether you need robust industrial components or automotive-grade capacitors, buy online now for fast delivery and dependable performance.
Get KEMET R73RI12204000J today—built for automotive precision, pulse durability, and reliable high-voltage performance.
