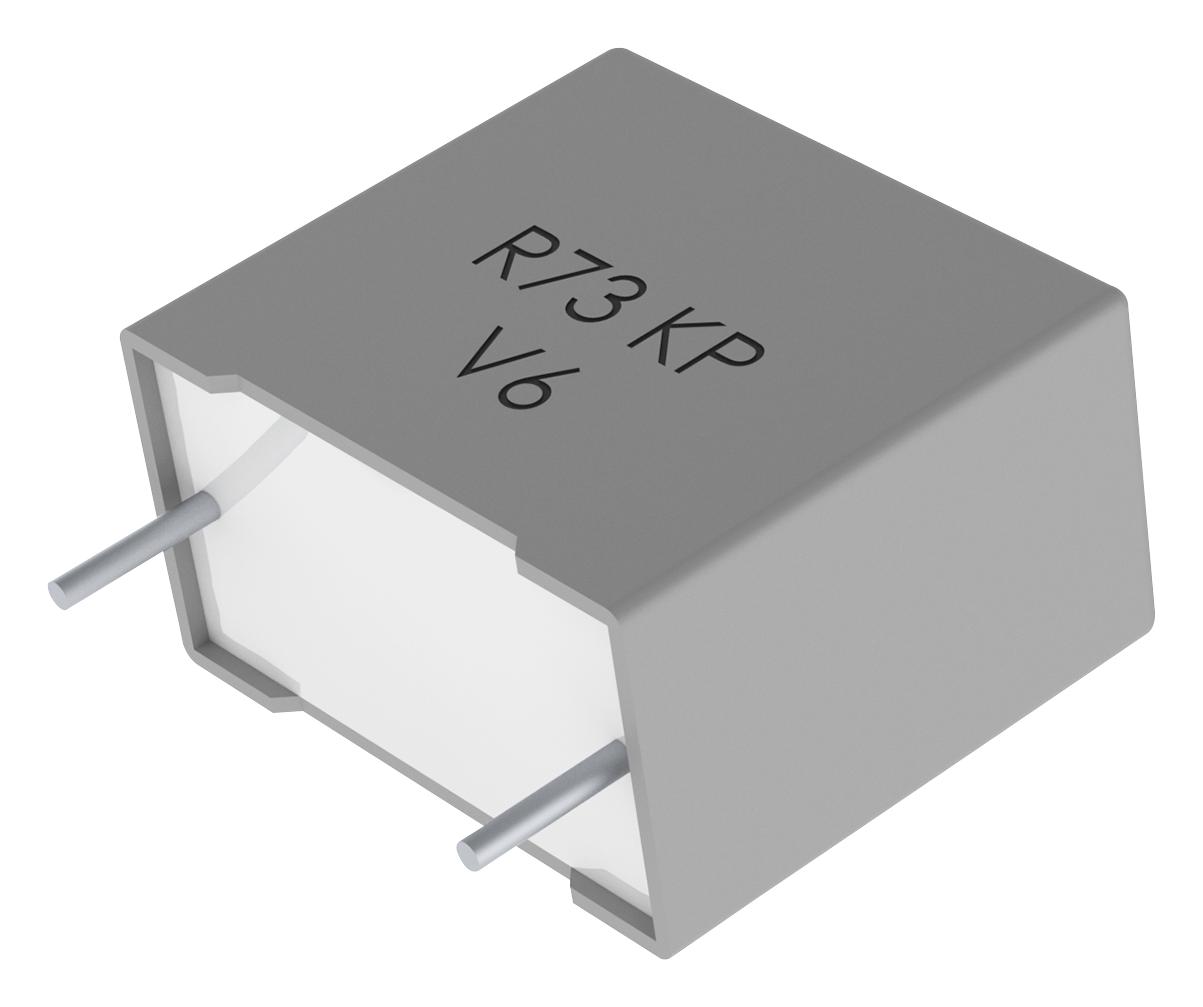

KEMET R73UI03304000J Film Capacitor
The R73U103304000J is a high-quality film capacitor designed for automotive and industrial applications, featuring polypropylene dielectric for stability and reliability. It offers 330 pF capacitance with a 5% tolerance, rated for 2000 VDC and operating within -55°C to +105°C temperature range. Constructed with wire leads, this radial style capacitor provides RoHS compliance and is qualified under AEC-Q200 standards. Its compact dimensions and high dielectric strength make it suitable for pulse and high-frequency circuits, ensuring durability and efficient performance in demanding environments.
KEMET R73UI03304000J Film Capacitor Specifications:
- Series: R73
- Dielectric: Film/Foil Polypropylene
- Style: Radial
- Features: Automotive Grade, Pulse
- RoHS: Yes
- Lead: Wire Leads
- Qualifications: AEC-Q200
- Component Weight: 1.259 grams
- Dimensions: Length 18mm +0.3/-0.5mm, Height 11mm +0.1/-0.5mm
- Capacitance: 330 pF
- Capacitance Tolerance: 5%
- Voltage AC: 500 VAC
- Voltage DC: 2000 VDC
- Temperature Range: -55°C to +105°C
- Rated Temperature: 85°C
- Dissipation Factor: 0.03% at 1kHz, 0.04% at 10kHz
- Insulation Resistance: 100 GOhms
- Packaging: Bag, Box
- Packaging Quantity: 1000 units
- Max dV/dt: 54000 V/μs
- Inductance: 10 nH
Buy the KEMET R73U103304000J – Reliable Film Capacitor for Industrial Applications
Purchase the KEMET R73U103304000J film capacitor online today and enhance your electronic systems with a reliable, high-voltage automotive-grade component. Featuring polypropylene dielectric for stability, this radial capacitor withstands voltage up to 2000 VDC, making it ideal for pulse and high-frequency applications. Its compact dimensions and RoHS compliance ensure easy integration into tight spaces, providing optimal performance under demanding conditions. Trust in KEMET's quality to deliver durability, precise capacitance, and consistent operation for your industrial and automotive projects.
Order your KEMET Series R73U103304000J high-voltage film capacitor today and ensure your projects benefit from dependable automotive-grade performance.
Frequently Asked Questions
Where can I buy KEMET R73UI03304000J?
You can click on the BUY or RFQ button to purchase R73UI03304000J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R73UI03304000J?
You can download the R73UI03304000J datasheet or visit the KEMET website for support.
Who is the manufacturer of R73UI03304000J?
KEMET
