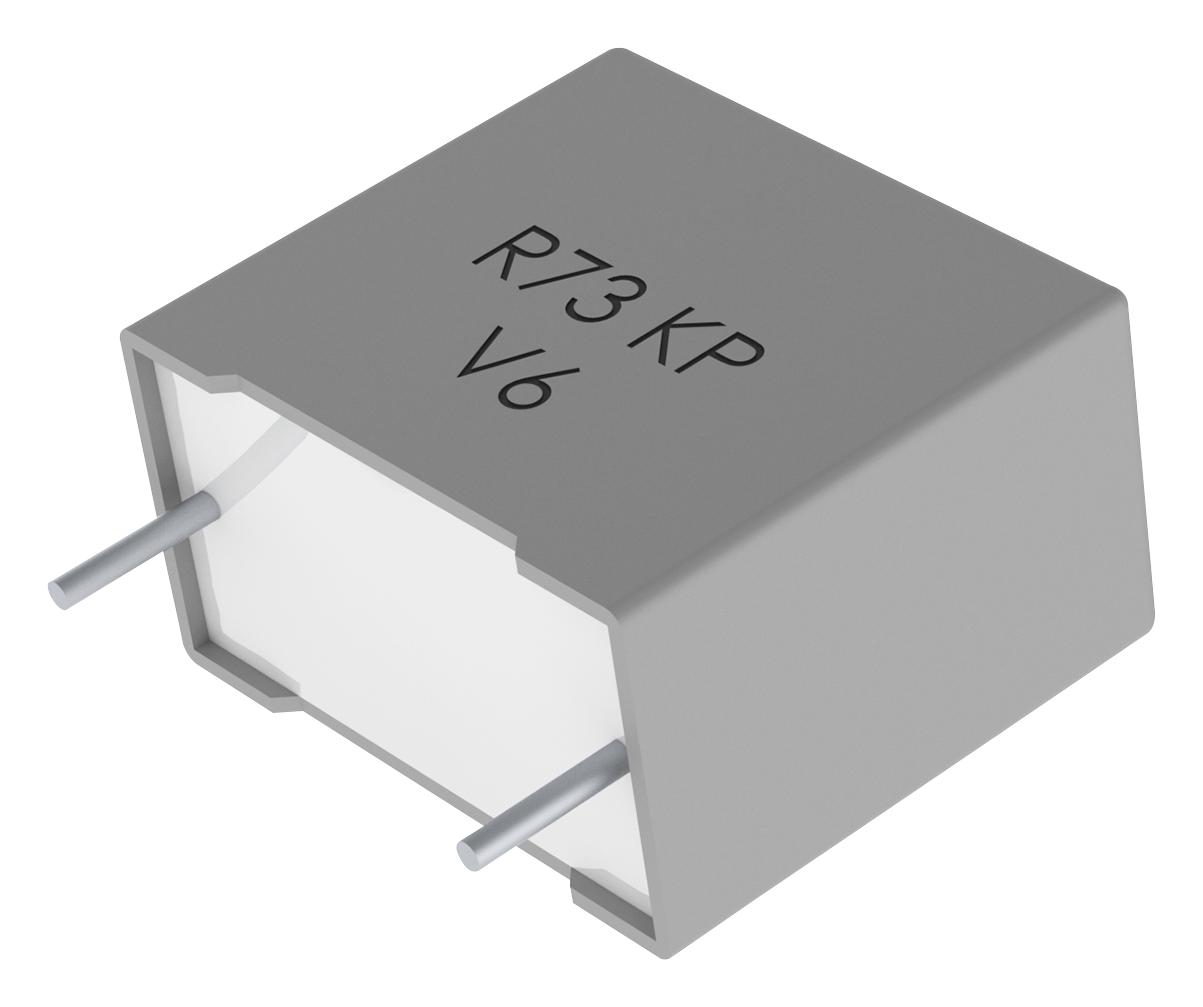

KEMET R73UI11504000J High-Voltage Film Capacitor
The R73UI11504000J is a high-quality automotive-grade film capacitor with a polypropylene dielectric, designed for pulse applications and high-voltage environments. Featuring a capacitance of 1500 pF with a 5% tolerance, it operates at a voltage of 2000 VDC and withstands temperatures from -55°C to +105°C. Its radial H-style design includes wire leads, and it complies with RoHS and AEC-Q200 standards, making it suitable for automotive and industrial applications that require reliable performance under challenging conditions.
KEMET R73UI11504000J High-Voltage Film Capacitor Specifications:
- Capacitance: 1500 pF
- Capacitance Tolerance: 5%
- Voltage DC: 2000 VDC
- Voltage AC: 500 VAC
- Temperature Range: -55°C to +105°C
- Rated Temperature: 85°C
- Dimensions: Length 18mm ±0.5mm, Height 13.5mm +0.1/-0.5mm, Lead Spacing 15mm
- Material: Film/Foil Polypropylene
- Features: Automotive Grade, Pulse
- Insulation Resistance: 100 GOhms
- Dissipation Factor: 0.03% at 1kHz
- Frequency Range: 100kHz
- Maximum dV/dt: 54000 V/us
- Packaging: Bag or Box, Quantity: 700
- RoHS Compliant: Yes
- Qualifies: AEC-Q200
- Inductance: 10 nH
Buy the Buy KEMET Automotive Grade Film Capacitor Part Number R73UI11504000J Online
Purchase the KEMET R73UI11504000J film capacitor online for superior performance in automotive and industrial pulse applications. Engineered with polypropylene dielectric, this capacitor offers 1500 pF capacitance at 2000 VDC, rated for -55°C to +105°C temperatures. Its radial design with wire leads ensures easy installation in demanding environments. Compliant with RoHS and AEC-Q200 standards, it guarantees durability and stability under high voltage and pulse conditions. Perfect for engineers and technicians seeking reliable, high-performance film capacitors for critical electronics projects.
Get KEMET R73UI11504000J today—ideal for automotive pulse applications with high-voltage reliability and polypropylene dielectric performance.
