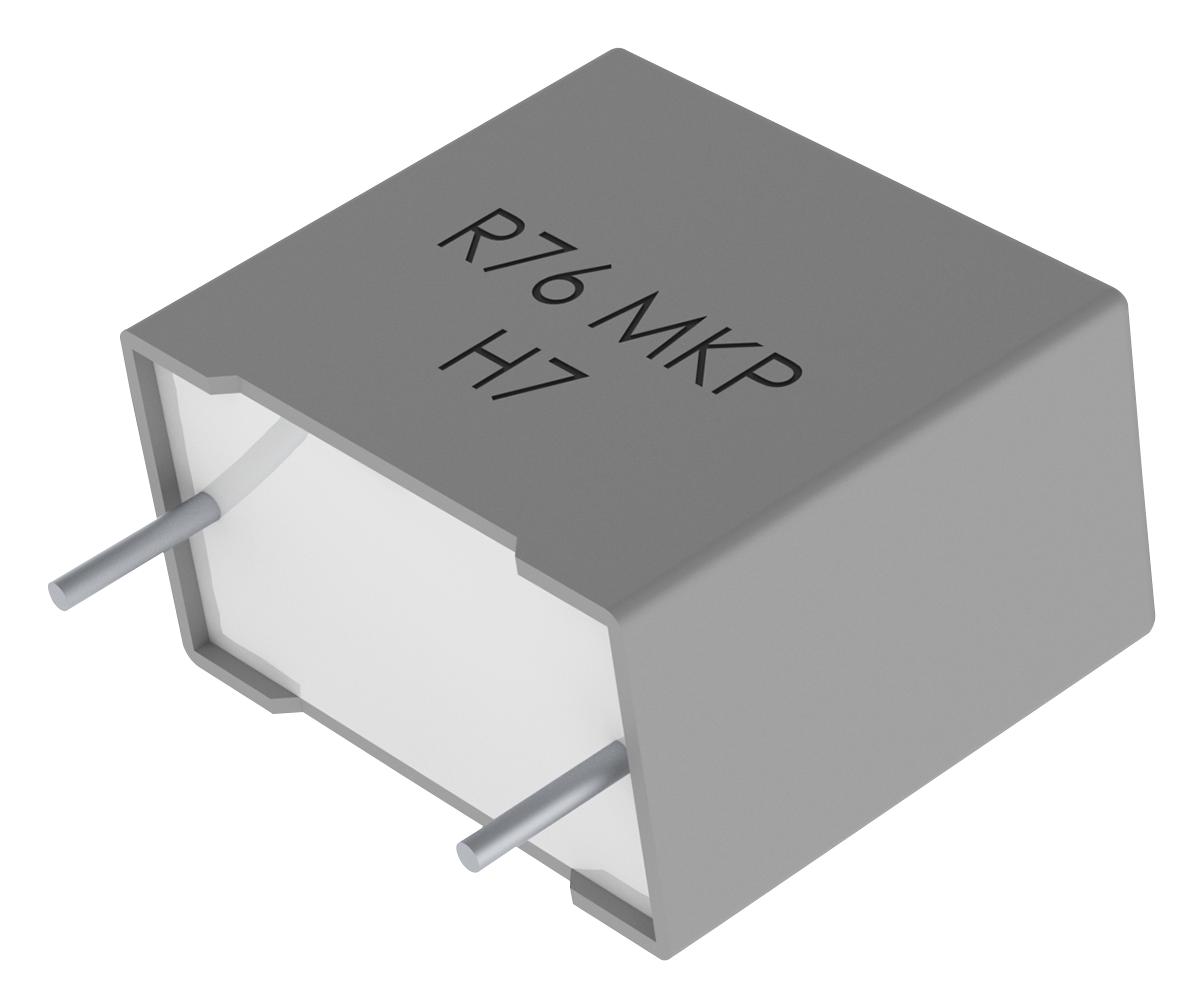

KEMET R76MI33905050J Film Capacitor
The R76MI33905050J is a high-quality automotive-grade film capacitor featuring double metallized polypropylene dielectric, rated for 0.39 uF capacitance with 5% tolerance. It has a voltage rating of 400 VDC, operates within a temperature range of -55°C to +110°C, and is designed with wire leads and radial H style. This capacitor is suitable for pulse applications, ensuring reliability and durability in automotive and industrial environments, supported by AEC-Q200 qualification, RoHS compliance, and robust ratings for insulation resistance and dissipation factor.
KEMET R76MI33905050J Film Capacitor Specifications:
- Dielectric: Double Metallized Polypropylene
- Capacitance: 0.39 uF
- Capacitance Tolerance: 5%
- Voltage DC: 400 VDC
- Voltage AC: 250 VAC
- Temperature Range: -55°C to +110°C
- Rated Temperature: 85°C
- Lead Spacing: 15mm
- Dimensions: Length 18mm +0.5/-0.5mm, Height 19mm +0.1/-0.5mm, Thickness 11mm +0.2/-0.5mm
- RoHS: Yes
- Qualification: AEC-Q200
- Dissipation Factor: 0.03% at 1kHz, 0.06% at 10kHz
- Insulation Resistance: 76.923 GOhms
- Maximum D Vidt: 900 V
- Resistance: 4.08 mOhms at 100kHz
- Ripple Current: Peak current to be determined
- Inductance: 10 nH
Buy the KEMET Series R76 Film Capacitor: R76MI33905050J
Purchase the KEMET R76MI33905050J film capacitor online and ensure high durability in automotive and industrial applications. Featuring double metallized polypropylene dielectric, 0.39 uF capacitance, 400 VDC voltage rating, and operating temperature range from -55°C to +110°C, this capacitor is ideal for pulse and demanding environments. Easy to install with wire leads and radial layout, it guarantees excellent insulation resistance, low dissipation factor, and RoHS compliance. Order now for reliable, long-lasting performance designed for professionals.
Get KEMET R76MI33905050J today—built for precision, reliability, and automotive-grade performance in pulse applications.
