KEMET R76PF21005050J Film Capacitor
The R76PF21005050J is a high-performance film capacitor built with double metallized polypropylene dielectric, designed for automotive and pulse applications. It features a 0.01 µF capacitance, 5% tolerance, and 630 VDC voltage rating, operating efficiently at temperatures up to 85°C. With lead spacing of 10mm, this radial component adheres to automotive grade standards, including AEC-Q200 qualification. Its compact size, low dissipation factor, and high insulation resistance make it ideal for demanding electronic circuits requiring reliability and stability under harsh conditions.
KEMET R76PF21005050J Film Capacitor Specifications:
- Series: R76
- Dielectric: Double Metallized Polypropylene
- Type: Radial
- Features: Automotive Grade, Pulse
- RoHS: Yes
- Lead Type: Wire Leads
- Height: 9mm +0.1/-0.5mm
- Length: 13mm +0.2/-0.5mm
- Width: 4mm +0.2/-0.5mm
- Lead Spacing: 10mm +/-0.4mm
- Capacitance: 0.01 µF
- Capacitance Tolerance: 5%
- Rated Voltage: 630 VDC
- Voltage AC: 400 VAC
- Temperature Range: -55°C to +110°C
- Rated Temperature: 85°C
- Dissipation Factor: 0.03% at 1kHz
- Insulation Resistance: 100 GOhms
- Max Dissipation Voltage: 4000 V
- Resistance: 63.66 mOhms (At 10kHz)
- Ripple Current: 2 Amps (At 85°C, 10kHz), 40 Amps (Peak)
- Inductance: 9nH

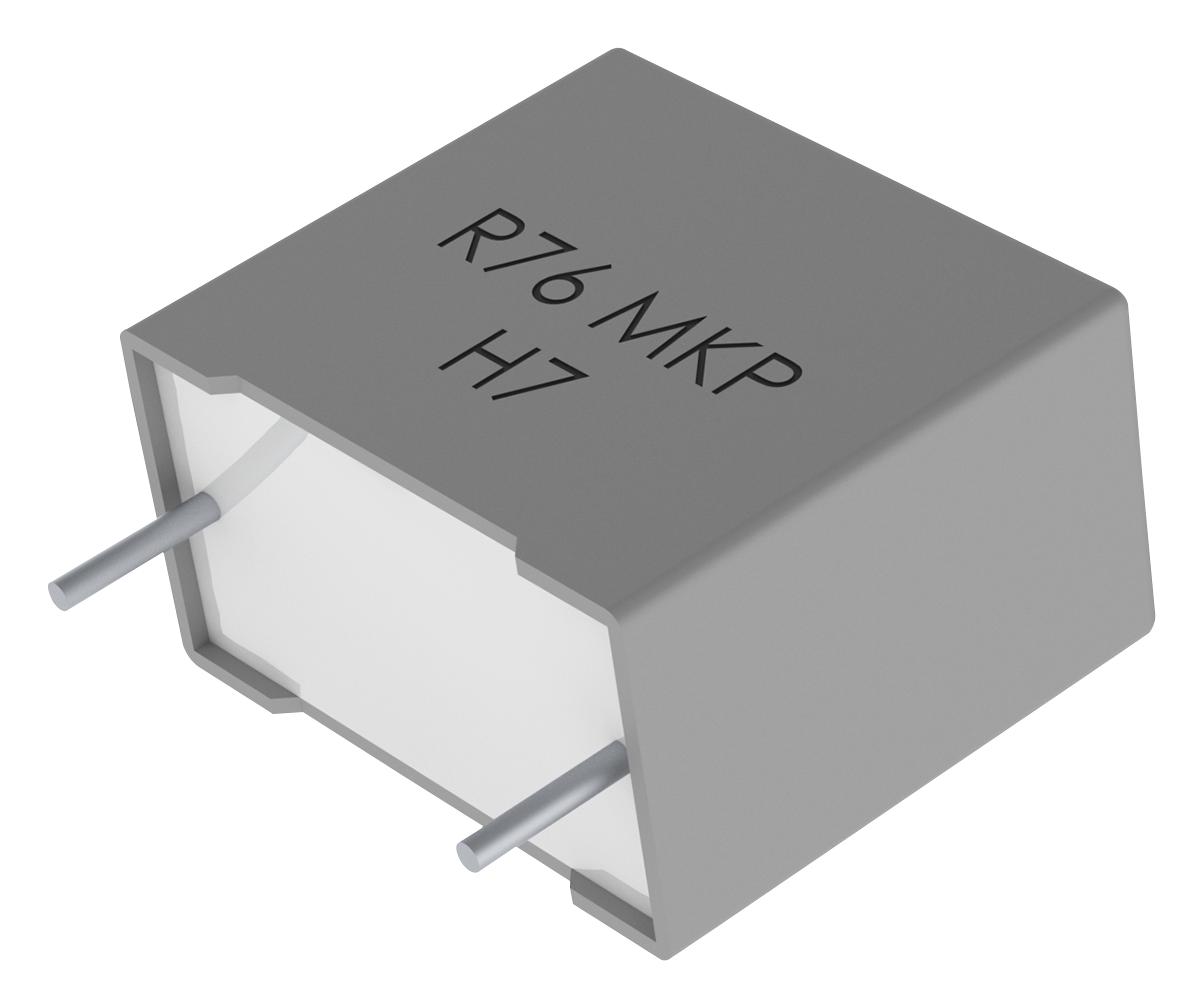

Buy the Buy KEMET Automotive Grade Film Capacitor Part Number R76PF21005050J Online
Experience the reliable performance of the KEMET R76PF21005050J film capacitor, engineered for demanding automotive and pulse circuit applications. With a capacitance of 0.01 µF, 630 VDC voltage rating, and operating temperature up to 85°C, this high-quality component ensures stability and durability under rigorous conditions. Its compact size, low dissipation factor, and robust insulation resistance make it ideal for high-voltage electronic systems requiring longevity and consistent performance. Purchase online today for trusted quality and dependable operation.
Get KEMET R76PF21005050J today—built for reliability, high voltage resistance, and optimal performance in automotive and pulse applications.
Frequently Asked Questions
Where can I buy KEMET R76PF21005050J?
You can click on the BUY or RFQ button to purchase R76PF21005050J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R76PF21005050J?
You can download the R76PF21005050J datasheet or visit the KEMET website for support.
Who is the manufacturer of R76PF21005050J?
KEMET
