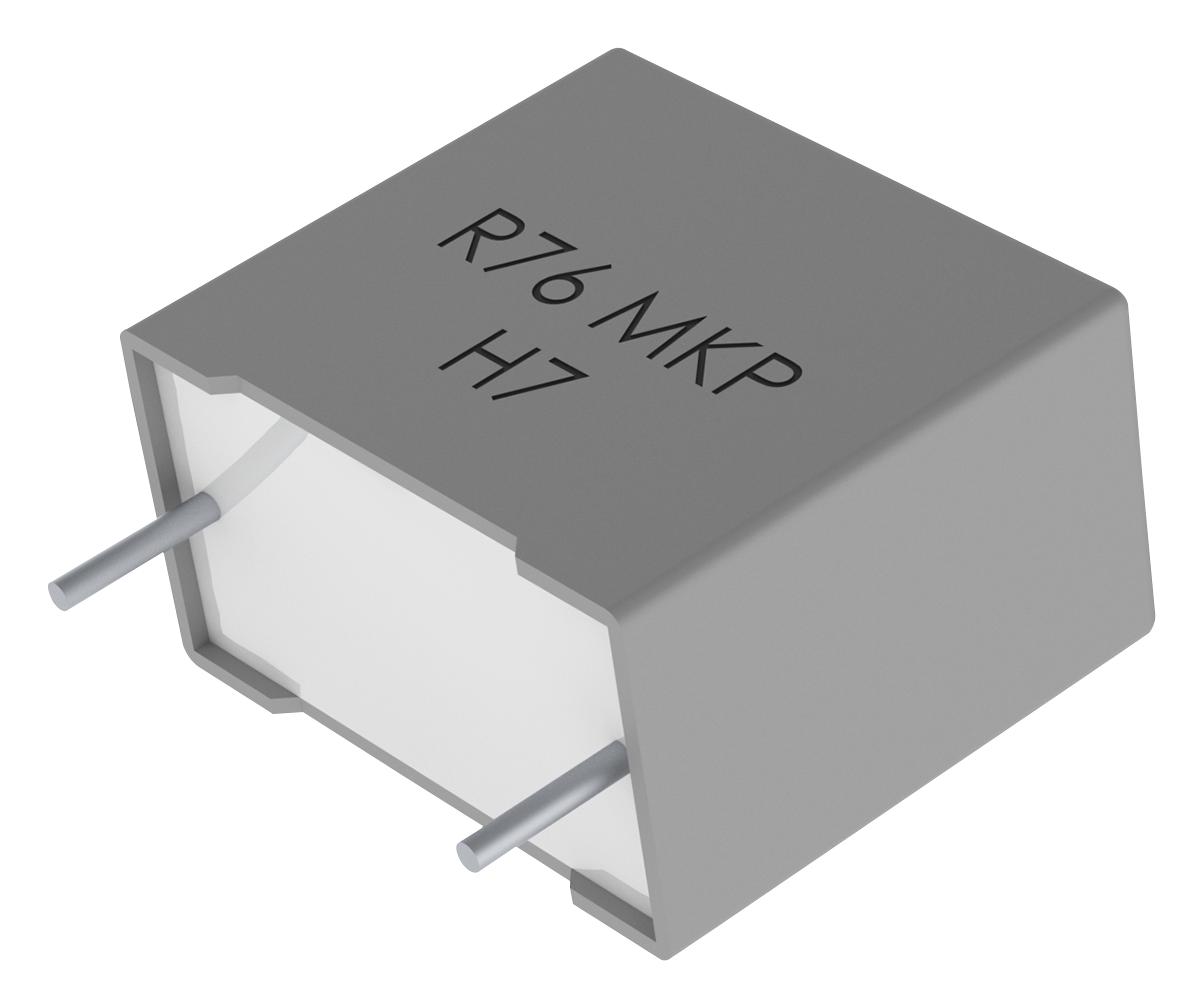

KEMET R76PI31205050J Film Capacitor
The R76PI31205050J is an automotive-grade film capacitor with double metallized polypropylene dielectric, rated at 0.12uF with a 5% tolerance. It features a radial H style with wire leads, designed for pulse applications. The capacitor supports high voltage DC operation up to 630 VDC and functions effectively within a temperature range of -55°C to +110°C. Its compact size includes 18mm length, 16mm height, and 15mm lead spacing, making it suitable for automotive and industrial electronic applications requiring reliability under demanding conditions.
KEMET R76PI31205050J Film Capacitor Specifications:
- Series: R76
- Dielectric: Double Metallized Polypropylene
- H Style: Radial
- Features: Automotive Grade, Pulse
- RoHS: Yes
- Lead Type: Wire Leads
- Qualifications: AEC-Q200
- Component Weight: 4.2 grams
- Dimensions: Length 18mm +0.5/-0.5mm, Height 16mm +0.1/-0.5mm, Lead Spacing 15mm +/-0.4mm
- Capacitance: 0.12uF
- Capacitance Tolerance: 5%
- Voltage DC: 630 VDC
- Voltage AC: 400 VAC
- Temperature Range: -55°C to +110°C
- Rated Temperature: 85°C
- Dissipation Factor: 0.03% at 1kHz, 0.06% at 10kHz
- Insulation Resistance: 100 GOhms
- Maximum Voltage: 3000 V DC
- Ripple Current: 5.8 Amps (100kHz, 85°C)
- Inductance: 10 nH
Buy the KEMET Series R76 Film Capacitors: 0.12uF 630VDC, Automotive Grade
Secure your automotive and industrial electronic projects with the KEMET R76PI31205050J film capacitor. Featuring double metallized polypropylene dielectric, rated at 0.12uF and supporting 630VDC, it offers high insulation resistance and reliable pulse performance. Its radial design with wire leads ensures easy installation in tight spaces. Built for temperatures from -55°C to +110°C, this capacitor is RoHS compliant and qualified under AEC-Q200 standards. Perfect for demanding environments requiring stable performance and durability.
Buy KEMET R76PI31205050J now and experience unmatched reliability and performance in demanding automotive applications.
Frequently Asked Questions
Where can I buy KEMET R76PI31205050J?
You can click on the BUY or RFQ button to purchase R76PI31205050J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R76PI31205050J?
You can download the R76PI31205050J datasheet or visit the KEMET website for support.
Who is the manufacturer of R76PI31205050J?
KEMET
