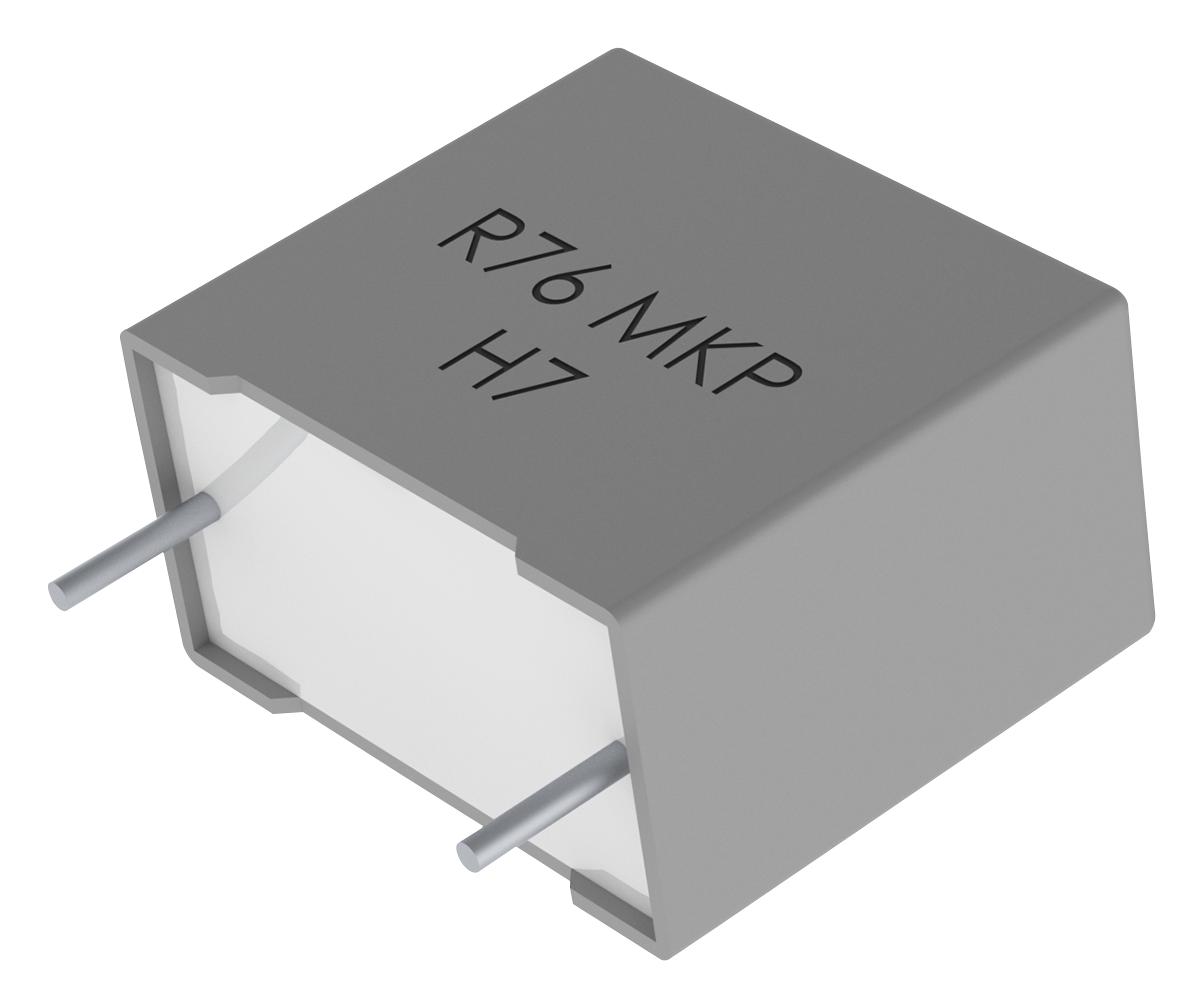

KEMET R76QF12204000J Film Capacitor
The R76QF12204000J is a high-quality automotive grade film capacitor with double metallized polypropylene dielectric. It features a capacitance of 2200 pF with a tolerance of 5%, rated voltage of 1000 VDC, and a maximum temperature of 85°C. Designed for pulse applications, it has wire leads with a lead spacing of 10mm and is suitable for atmospheric and electronic circuits requiring reliable performance under extreme conditions. Its compact radial format ensures easy integration in automotive and industrial systems, meeting strict RoHS and AEC-Q200 standards.
KEMET R76QF12204000J Film Capacitor Specifications:
- Capacitance: 2200 pF
- Capacitance Tolerance: 5%
- Rated Voltage DC: 1000 VDC
- Voltage AC: 600 VAC
- Temperature Range: -55°C to +110°C
- Maximum Operating Temperature: 85°C
- Lead Spacing: 10mm
- Dimensions: Length 13mm +0.2/-0.5mm, Height 9mm +0.1/-0.5mm, Thickness 4mm +0.2/-0.5mm
- Insulation Resistance: 100 GOhms
- Dissipation Factor: 0.03% at 1kHz
- Leakage Current Resistance: 289.37 mOhms at 100kHz
- Ripple Current: Specified for 85°C
- Dielectric Material: Double Metallized Polypropylene
- Package: Bulk, Bag
- Compliance: RoHS, AEC-Q200
- Weight: 0.7g
Buy the KEMET Series R76 Film Capacitor: R76QF12204000J
Purchase the KEMET Series R76QF12204000J film capacitor online now to ensure your automotive or industrial project benefits from dependable, high-capacity film technology. This double metallized polypropylene capacitor offers 2200 pF capacitance at 1000 VDC, with a maximum temperature of 85°C, and ensures excellent pulse handling. Its compact radial design with 10mm lead spacing simplifies installation in tight spaces. Available for quick online ordering, this component meets RoHS and AEC-Q200 standards for quality, durability, and safety in demanding applications.
Order your KEMET Series R76QF12204000J film capacitor today and enhance your automotive and industrial circuits with reliable, high-quality performance.
Frequently Asked Questions
Where can I buy KEMET R76QF12204000J?
You can click on the BUY or RFQ button to purchase R76QF12204000J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R76QF12204000J?
You can download the R76QF12204000J datasheet or visit the KEMET website for support.
Who is the manufacturer of R76QF12204000J?
KEMET
