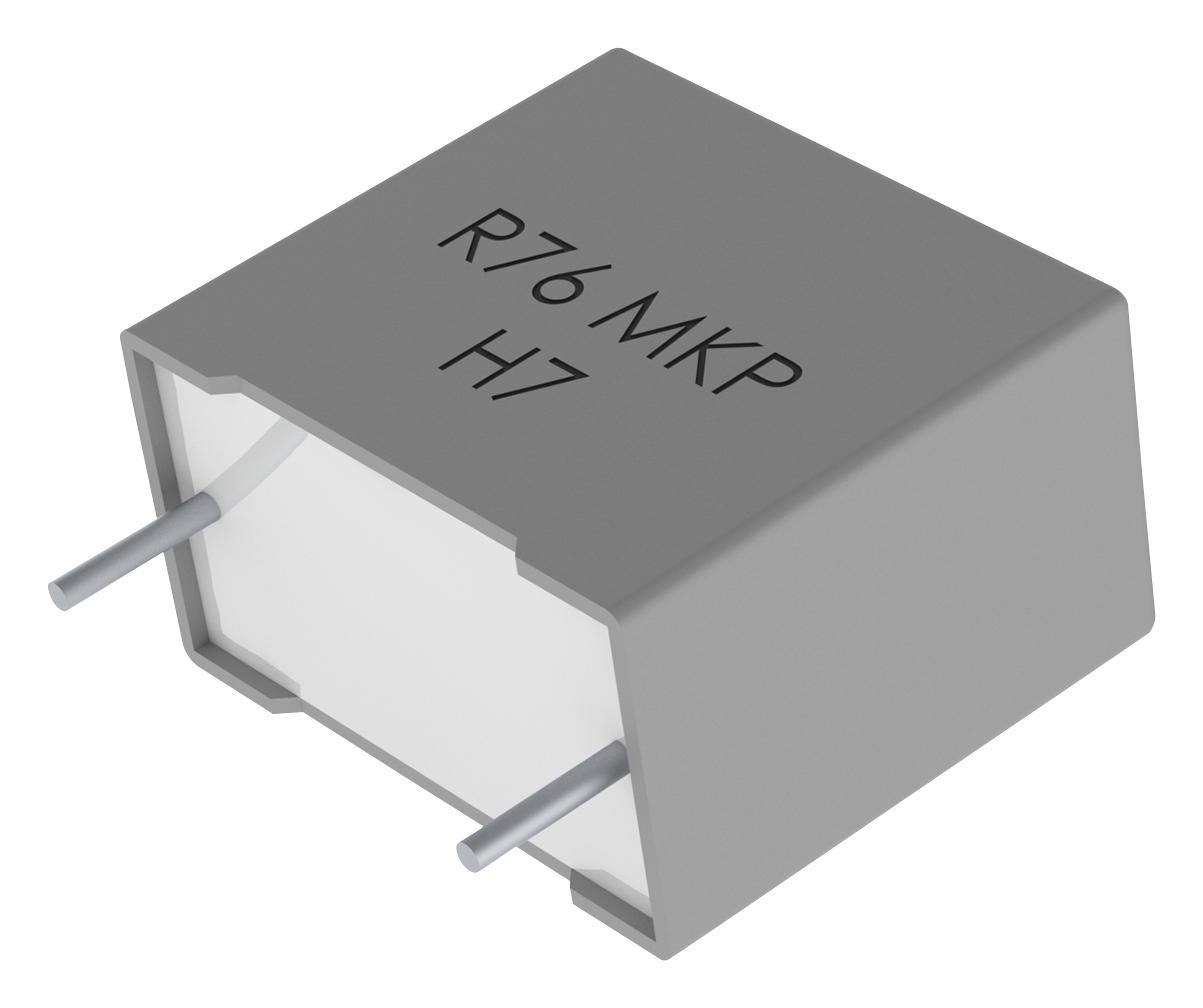

KEMET R76QF14705050J film capacitor
The R76QF14705050J is a high-quality, automotive-grade film capacitor featuring double metallized polypropylene dielectric, suitable for pulse applications. This radial component offers a capacitance of 4700 pF with a 5% tolerance, rated for 1000 VDC and operating temperatures from -55°C to +110°C. Its compact dimensions include a 13mm length, 9mm height, and 4mm thickness, with a lead spacing of 10mm. It provides excellent insulation resistance of 100 GOhms, low dissipation factor, and complies with RoHS and AEC-Q200 standards, making it ideal for automotive electronics and pulse circuits.
KEMET R76QF14705050J film capacitor Specifications:
- Capacitance: 4700 pF
- Tolerance: 5%
- Voltage DC: 1000 VDC
- Voltage AC: 600 VAC
- Temperature Range: -55°C to +110°C
- Rated Temperature: 85°C
- Dimensions: Length 13mm (+0.2/-0.5mm), Height 9mm (+0.1/-0.5mm), Thickness 4mm (+0.2/-0.5mm), Lead Spacing 10mm +/-0.4mm
- Insulation Resistance: 100 GOhms
- Dissipation Factor: 0.03% at 1kHz, 0.04% at 10kHz, 0.1% at 100kHz
- Inductance: 9nH
- RoHS Compliant: Yes
- Certification: AEC-Q200 qualified
- Weight: 0.7g
- Packaging: Bulk, Bag, Max DVI: 6500 V
- Resistance: 135.45 mOhms at 100kHz
Buy the KEMET Series R76 Capacitor: 4700 pF, 1000 VDC, Automotive Grade
Purchase the KEMET Series R76 film capacitor online today for high-quality automotive-grade performance. Featuring 4700 pF capacitance, 1000 VDC voltage rating, and a compact radial design, this capacitor is ideal for pulse applications and automotive electronics. RoHS compliant and AEC-Q200 qualified, it offers excellent insulation resistance of 100 GOhms, low dissipation factor, and operates reliably from -55°C to +110°C. Buy now to enhance your electronic systems with a trusted, durable component.
Order your KEMET Series R76 4700 pF automotive capacitor today and ensure reliable performance in your pulse and automotive electronic applications.
Frequently Asked Questions
Where can I buy KEMET R76QF14705050J?
You can click on the BUY or RFQ button to purchase R76QF14705050J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R76QF14705050J?
You can download the R76QF14705050J datasheet or visit the KEMET website for support.
Who is the manufacturer of R76QF14705050J?
KEMET
