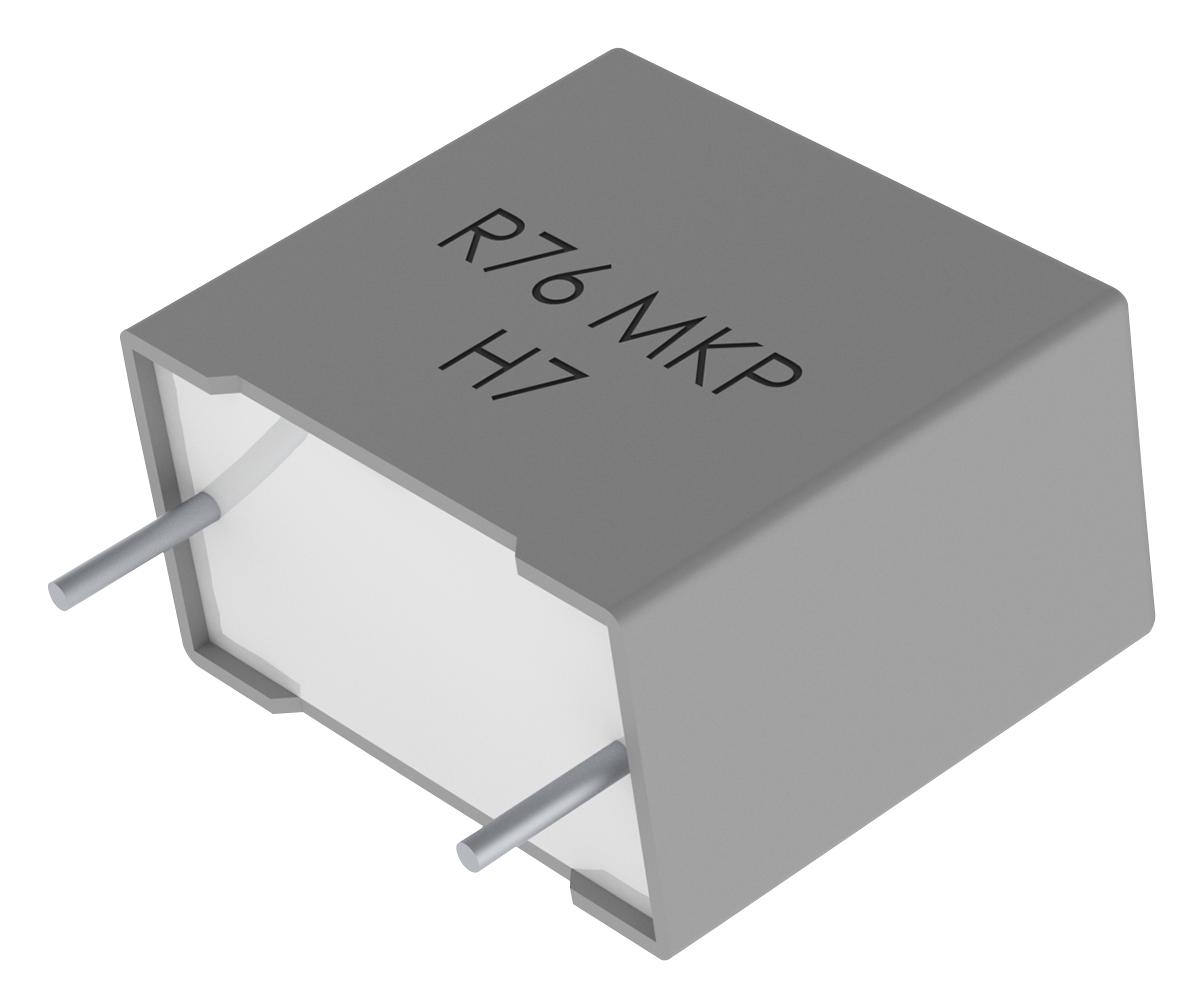

KEMET R76TW32204030J Film Capacitor
The R76TW32204030J is a high-performance film capacitor with a 0.22 uF capacitance, 5% tolerance, and a voltage rating of 1600 VDC, suitable for industrial and power applications. It features double metallized polypropylene dielectric for reliable performance at high voltages and temperature ranges from -55°C to +110°C. The radial lead design with 37.5mm spacing ensures easy mounting, and with RoHS compliance, this capacitor provides durability and high insulation resistance, making it ideal for pulse and general-purpose uses in demanding environments.
KEMET R76TW32204030J Film Capacitor Specifications:
- Capacitance: 0.22 uF
- Capacitance Tolerance: 5%
- Voltage DC: 1600 VDC
- Voltage AC: 650 VAC
- Temperature Range: -55°C to +110°C
- Rated Temperature: 85°C
- Dimensions: Length 41.5mm +0.3/-0.7mm, Height 24mm +0.1/-0.7mm, Thickness 13mm +0.3/-0.7mm, Lead Spacing 37.5mm +/-0.4mm
- Insulation Resistance: 100 GOhms
- Maximum Dissipation Factor: 0.03% at 1kHz, 0.06% at 10kHz
- Ripple Current: 8.5 Amps (100kHz, 85°C)
- Resistance: 10.85 mOhms at 100kHz
- Packaging: Tray containing 216 units
- Features: Pulse capable, RoHS compliant
- Dielectric: Double Metallized Polypropylene
- Lead Type: Wire Leads
- External Diameter: 37.5mm
- Weight: 14.7g
- Inductance: 20 nH
Buy the KEMET Series R76 Film Capacitor: R76TW32204030J
Purchase the KEMET R76TW32204030J film capacitor online today for your power electronics and industrial projects. Designed with double metallized polypropylene dielectric, it offers high voltage tolerance up to 1600 VDC, excellent insulation resistance, and precise capacitance of 0.22 uF. Its radial lead design with 37.5mm spacing ensures easy installation. RoHS compliant and capable of handling pulse currents, this capacitor is perfect for demanding environments requiring high durability, stability, and high-temperature performance. Order now for fast delivery and reliable operation.
Get KEMET R76TW32204030J today—built for high-voltage power and pulse applications with reliable durability.
Frequently Asked Questions
Where can I buy KEMET R76TW32204030J?
You can click on the BUY or RFQ button to purchase R76TW32204030J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R76TW32204030J?
You can download the R76TW32204030J datasheet or visit the KEMET website for support.
Who is the manufacturer of R76TW32204030J?
KEMET
