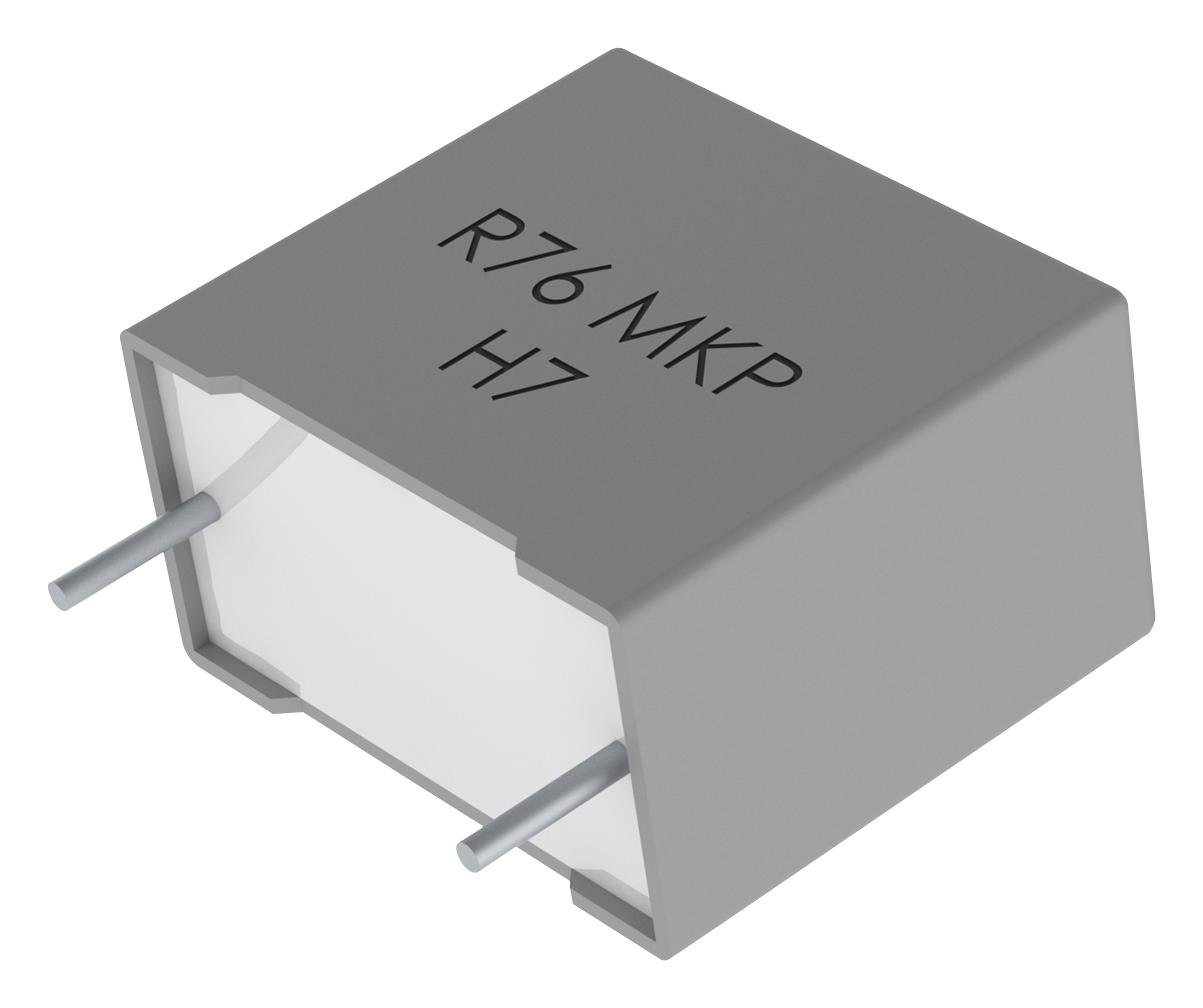

KEMET R76UI0100SE40J Film Capacitor
This automotive-grade film capacitor features double metallized polypropylene dielectric with a capacitance of 100 pF and a tolerance of 5%. Rated for 2000 VDC and capable of operating within -55°C to +110°C, it is suitable for pulse applications. The radial lead design includes a 15mm lead spacing and robust specifications such as low dissipation factor and high insulation resistance. Ideal for automotive electronics and high-voltage pulse handling, this capacitor ensures reliability and performance in demanding industrial environments.
KEMET R76UI0100SE40J Film Capacitor Specifications:
- Series: R76
- Dielectric: Double Metallized Polypropylene
- Type: Radial
- Features: Automotive Grade, Pulse
- RoHS: Yes
- Lead: Cut
- Qualifications: AEC-Q200
- Weight: 1.328 g
- Dimensions: Length 18mm +0.3/-0.5mm, Height 10mm +0.1/-0.5mm, Diameter 4mm +0.2/-0.5mm, Lead Spacing 15mm +/-0.4mm
- Capacitance: 100 pF
- Capacitance Tolerance: 5%
- Voltage AC: 700 VAC
- Voltage DC: 2000 VDC
- Temperature Range: -55/+110°C
- Rated Temperature: 85°C
- Dissipation Factor: 0.03% at 1kHz, 0.04% at 10kHz, 0.1% at 100kHz
- Insulation Resistance: 100 GOhms
- Max Dissipation Voltage: 11000 V
- Packaging: Bulk
- Resistance: 6366.2 mOhms (at 10kHz)
- Packaging Quantity: 2500
- Ripple Current: 0 Amps (at 100kHz 85°C), 1 Amps (Peak)
- Inductance: 10 nH
Buy the KEMET R76UI0100SE40J – Reliable Polypropylene Film Capacitor for Industrial Applications
Discover the superior quality of this automotive-grade film capacitor, designed with double metallized polypropylene dielectric for high-voltage pulse applications. Capable of operating at 2000 VDC with a precise capacitance of 100 pF and a tolerance of 5%, it is built for robust industrial and automotive environments. Featuring a radial lead design with 15mm spacing, this capacitor ensures reliable performance under extreme temperatures from -55°C to +110°C. Perfect for high-voltage, high-reliability applications requiring low dissipation factor and high insulation resistance, order online today for fast delivery.
Buy KEMET R76UI0100SE40J now and experience unmatched reliability and performance in high-voltage pulse and automotive electronic applications.
Frequently Asked Questions
Where can I buy KEMET R76UI0100SE40J?
You can click on the BUY or RFQ button to purchase R76UI0100SE40J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R76UI0100SE40J?
You can download the R76UI0100SE40J datasheet or visit the KEMET website for support.
Who is the manufacturer of R76UI0100SE40J?
KEMET
