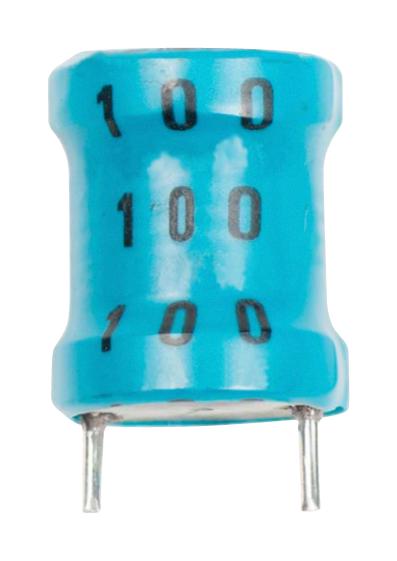

KEMET SBC9681551 Power Inductor
The SBC9 power inductor features a ferrite core with 680 uH inductance and 10% tolerance, suitable for DC-DC converters. It has radial leads, a compact size of 7.5mm +/-0.5mm, and a maximum diameter of 12mm. Capable of operating in temperatures from -20°C to +105°C, it provides a current of 0.55 Amps with a DC resistance of 1.05 Ohms. Packaged in bulk with a quantity of 2000, this shieldless, nickel-zinc ferrite inductor is ideal for high-frequency power applications requiring robust and reliable inductance.
KEMET SBC9681551 Power Inductor Specifications:
- Inductance: 680 uH
- Inductance Tolerance: 10%
- Dimensions: Diameter 12mm MAX, Length 15.5mm MAX, Lead Spacing 7.5mm +/-0.5mm, Body Width 6.5mm +/-1mm, Lead Diameter 0.8mm
- Core Material: Ferrite
- Current Rating: 0.55 Amps
- DC Resistance: 1.05 Ohms
- Temperature Range: -20°C to +105°C
- Shielded: No
- Packaging: Bulk, Quantity: 2000
- Weight: 4.65 grams
Buy the KEMET Series SBC9 Power Inductor: SBC9681551
Order the KEMET SBC9681551 power inductor online today for your high-performance electronic applications. This 680 uH ferrite core inductor with 10% tolerance ensures stable inductance in DC-DC converters. Its compact size of 7.5mm and diameter of 12mm makes it ideal for space-constrained designs. Capable of operating from -20°C to +105°C, it handles up to 0.55 Amps with a low DC resistance of 1.05 Ohms. Packaged in bulk with 2000 pieces, it's perfect for high-frequency power supplies requiring durability and consistent performance.
Get KEMET SBC9681551 today—designed for high-frequency power and high reliability in your DC-DC converter applications.
Frequently Asked Questions
Where can I buy KEMET SBC9681551?
You can click on the BUY or RFQ button to purchase SBC9681551 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part SBC9681551?
You can download the SBC9681551 datasheet or visit the KEMET website for support.
Who is the manufacturer of SBC9681551?
KEMET
