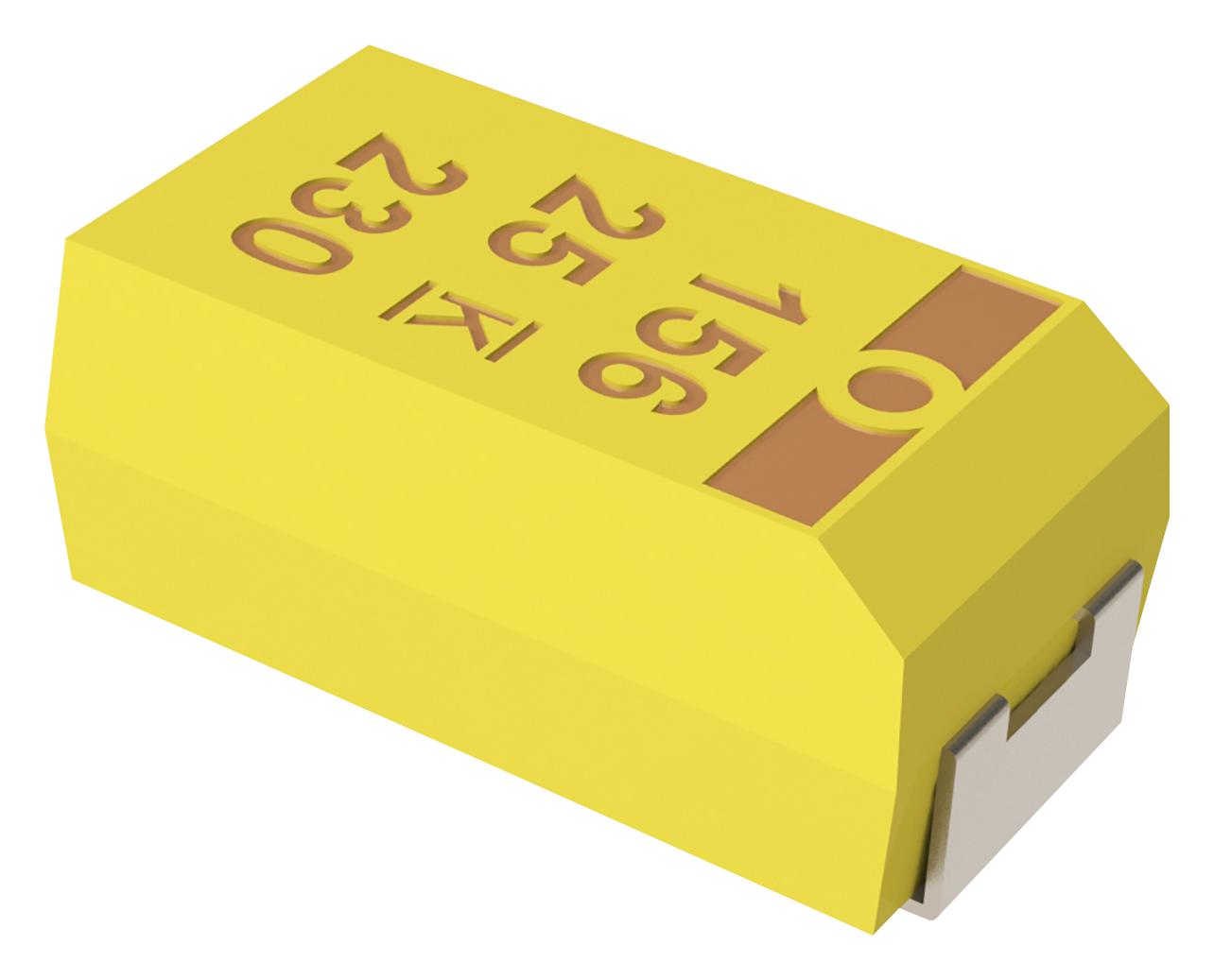

KEMET T494B475K010AT SMD Tantalum Capacitor
The T494 series SMD Tantalum Capacitor is designed for highly automated surface mount assembly, meeting or exceeding EIA standard 535BAAC requirements. It features symmetrical and compliant terminations, with options for matte tin, tin/lead, or gold plating compatible with various attachment methods. The capacitor is laser-marked for easy identification, halogen-free, and undergoes 100% surge current testing across specified sizes. It offers capacitance values from 0.1µF to 470µF, voltage ratings from 2.5V to 50V, and is available in low-profile, moisture-sensitive level-1 packages suitable for a wide range of electronic applications.
KEMET T494B475K010AT SMD Tantalum Capacitor Specifications:
- Capacitance: 4.7 uF
- Capacitance Tolerance: 10%
- Voltage DC: 10 VDC (85C), 6.7 VDC (125C)
- Temperature Range: -55/+125°C
- Rated Temperature: 85°C
- Dissipation Factor: 6% 120Hz 25C
- Resistance: 1.5 Ohms (100kHz 25C)
- Ripple Current: 214.2 mA (85°C), 95.2 mA (125°C)
- Leakage Current: 0.5 µA (5min 25°C)
- Dimensions: Length 3.5mm ±0.2mm, Width 2.8mm ±0.2mm, Height Max 2.1mm
- Footprint: 3528
- Termination: Tin
- RoHS Compliant: Yes
- Packaging: T&R, 178mm, Quantity: 2000
- Series: 1494
- Dielectric: MnO2 Tantalum
- Style: SMD Chip
- Features: Low ESR, Molded
- Certifications: RoHS
- Shelf Life: 156 Weeks
- MSL: 1
Buy the KEMET T494B475K010AT – Reliable Tantalum Capacitor for Industrial Applications
Purchase the KEMET T494B475K010AT SMD tantalum capacitor online today to ensure your electronics are equipped with reliable, low-ESR components. Designed for surface mount assembly, this high-quality capacitor features symmetrical terminations, halogen-free materials, and undergoes rigorous surge testing, making it ideal for demanding industrial, aerospace, or consumer electronic applications. Its compact size, RoHS compliance, and robust performance guarantee long-term stability and efficiency in your circuit designs. Buy now for fast delivery and confident integration into your projects.
Get KEMET T494B475K010AT today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy KEMET T494B475K010AT?
You can click on the BUY or RFQ button to purchase T494B475K010AT from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part T494B475K010AT?
You can download the T494B475K010AT datasheet or visit the KEMET website for support.
Who is the manufacturer of T494B475K010AT?
KEMET
