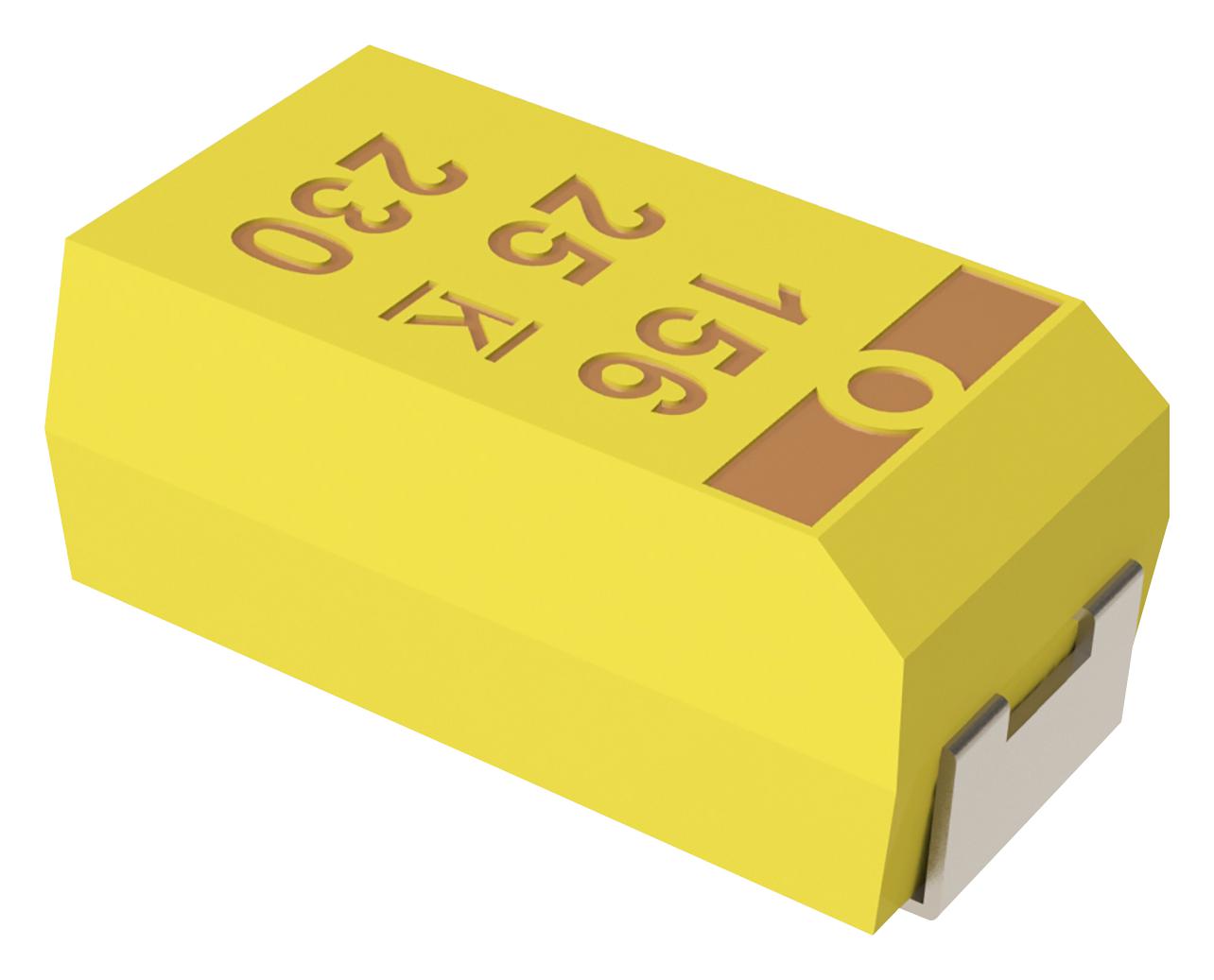

KEMET T494D477M006AT Tantalum Capacitor
This high-quality SMD MnO2 tantalum capacitor offers a 470 uF capacitance with 20% tolerance and a maximum voltage of 6.3 VDC. Featuring low ESR, molded construction, and RoHS compliance, it ensures reliable performance in demanding electronic circuits. With a compact height of up to 3.1mm and precise dimensions, it's suitable for surface-mount applications requiring stability, durability, and efficient energy storage. Ideal for power management, filtering, and smoothing applications in compact electronic devices and circuit boards.
KEMET T494D477M006AT Tantalum Capacitor Specifications:
- Capacitance: 470 uF
- Capacitance Tolerance: 20%
- Voltage DC: 6.3 VDC (85C), 4.22 VDC (125C)
- Temperature Range: -55/+125°C
- Rated Temperature: 85°C
- Dissipation Factor: 12% at 120Hz 25°C
- Resistance: 0.15 Ohms at 100kHz 25°C
- Ripple Current: 900 mA at 85°C, 400 mA at 125°C
- Leakage Current: 29.6 uA after 5 min at 25°C
- Dimensions: Length 7.3mm ±0.3mm, Width 4.3mm ±0.3mm, Height 3.1mm max
- RoHS Compliant: Yes
- Termination: Tin
- Packaging: T&R, 178mm, Quantity: 500
Buy the KEMET Series 1494 Capacitor: T494D477M006AT
Experience reliable performance with this high-quality tantalum capacitor. Featuring 470 microfarads capacitance, 6.3 VDC voltage rating, and low ESR, it is perfect for power regulation and filtering in compact electronic devices. Its molded design and RoHS compliance ensure durability, safety, and environmental friendliness. Designed for surface-mount applications, it offers precise dimensions of 7.3mm by 4.3mm with a maximum height of 3.1mm, providing efficient energy storage and stability for demanding circuits. Purchase online now for quick delivery and guaranteed quality.
Get KEMET T494D477M006AT today—built for precision and long-lasting durability in power management applications.
Frequently Asked Questions
Where can I buy KEMET T494D477M006AT?
You can click on the BUY or RFQ button to purchase T494D477M006AT from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part T494D477M006AT?
You can download the T494D477M006AT datasheet or visit the KEMET website for support.
Who is the manufacturer of T494D477M006AT?
KEMET
