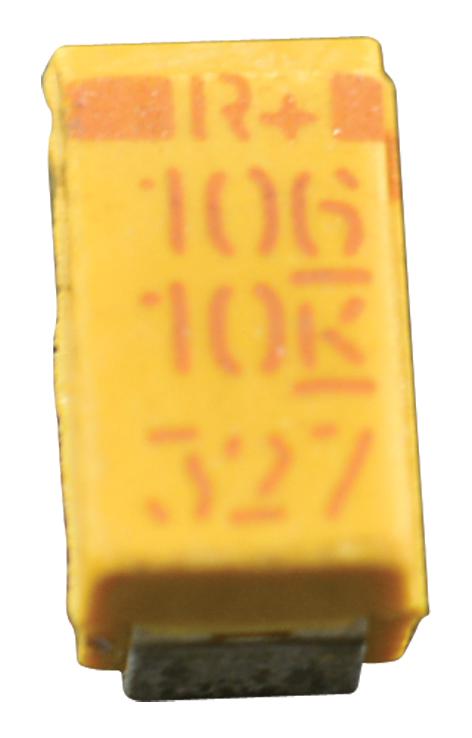

KEMET T495A106K010ATE1K8 Tantalum Capacitor
The T495 series capacitors are low ESR, surge-resistant manganese dioxide (MnO2) polarized tantalum chip capacitors designed for demanding applications requiring high surge and ripple current capabilities. They offer low ESR, high ripple capacity, excellent stability, and resistance to high inrush currents through proprietary design and materials. Available in capacitance values from 0.1µF to 1000µF with sizes like 1206 and 1210, rated voltages from 2.5VDC to 50VDC, and operating temperature from -55°C to 125°C, they meet industry standards and undergo rigorous aging testing.
KEMET T495A106K010ATE1K8 Tantalum Capacitor Specifications:
- Capacitance: 10 µF
- Capacitance Tolerance: 10%
- Rated Voltage DC: 10 VDC at 85°C, 6.7 VDC at 125°C
- Temperature Range: -55°C to +125°C
- Dimensions: Length 3.2mm, Width 1.6mm, Height 1.6mm
- Failure Rate: N/A
- Dissipation Factor: 6% at 120Hz 25°C
- REF Resistance: 1800 mOhms at 100kHz 25°C
- Ripple Current: 81.6 mA at 85°C
- Leakage Current: 1 µA
- Material: MnO2 Tantalum
- Mounting Type: SMD Chip
- Case Size: 3216
- RoHS Compliant: Yes
- Terminal: Tin
- Operation Temperature: -55°C to +125°C
- Packaging: T&R, 178mm
- Packaging Quantity: 2000 units
Buy the KEMET 7495 T495A106KO10ATE1K8 – Reliable Tantalum Capacitors for Industrial Applications
Purchase the T495 series tantalum capacitors online today to ensure your electronics benefit from low ESR, high ripple current capacity, and outstanding stability across a wide temperature range. Perfect for demanding industrial and high-reliability applications, these capacitors provide an optimal combination of performance, durability, and compliance with industry standards. With quick delivery, easy ordering, and technical support, buying online simplifies integrating high-quality tantalum capacitors into your electronic designs for enhanced performance and long-term reliability.
Buy KEMET T495A106KO10ATE1K8 now and experience unmatched reliability and high surge current handling for your demanding electronic applications.
Frequently Asked Questions
Where can I buy KEMET T495A106K010ATE1K8?
You can click on the BUY or RFQ button to purchase T495A106K010ATE1K8 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part T495A106K010ATE1K8?
You can download the T495A106K010ATE1K8 datasheet or visit the KEMET website for support.
Who is the manufacturer of T495A106K010ATE1K8?
KEMET
