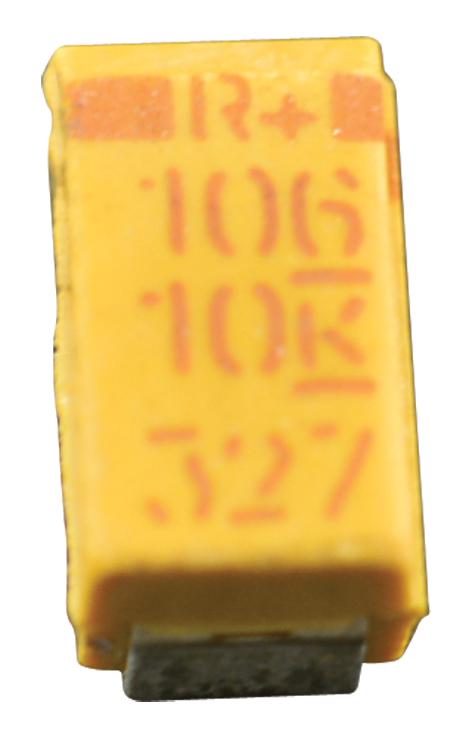

KEMET T495D106K035ATE250 Tantalum Capacitor
The T495D106K035ATE250 is a reliable SMD MnO2 tantalum capacitor designed for industrial applications. It offers a capacitance of 10 uF with a tolerance of 10%, rated at 35 VDC and operating within a temperature range of -55°C to +125°C. Key features include low ESR, molded construction, and tin termination, making it suitable for high-reliability environments. Its compact size and robust construction ensure optimal performance in power supply filtering and decoupling applications, supporting demanding electronic systems with consistent, stable operation.
KEMET T495D106K035ATE250 Tantalum Capacitor Specifications:
- Capacitance: 10 uF
- Capacitance Tolerance: 10%
- Voltage DC: 35 V
- Temperature Range: -55°C to +125°C
- Rated Temperature: 85°C
- Dissipation Factor: 6% at 120Hz 25°C
- Resistance: 250 mOhms (LO0kHz 25°C), 775 mA (rms, 100kHz 25°C)
- Ripple Current: 697.5 mA (rms, 85°C), 310 mA (rms, 125°C)
- Leakage Current: 3.5 uA (5 min, 25°C)
- Dimensions: Height Max = 3.1mm, Length 7.3mm +/-0.3mm, Width 4.3mm +/-0.3mm, Max Diameter 2.8mm +/-0.3mm
- Material: MnO2 Tantalum, Molded, Low ESR
- Termination: Tin
- Compliance: RoHS
Buy the KEMET T495D106K035ATE250 – Reliable Tantalum Capacitor for Industrial Applications
Order the T495D106K035ATE250 tantalum capacitor online today to ensure your electronic projects and industrial systems operate with high reliability. This low ESR, molded MnO2 SMD component offers excellent stability, efficient filtering, and durability across a wide temperature range. Easy to integrate into power supply circuits, its tin termination guarantees robust connections, making it ideal for demanding applications. Purchase now for fast delivery and enhance your electronic design with a proven, high-quality capacitor suited for diverse industrial and commercial uses.
Buy KEMET T495D106K035ATE250 now and experience unmatched reliability and performance in your electronic circuits.
Frequently Asked Questions
Where can I buy KEMET T495D106K035ATE250?
You can click on the BUY or RFQ button to purchase T495D106K035ATE250 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part T495D106K035ATE250?
You can download the T495D106K035ATE250 datasheet or visit the KEMET website for support.
Who is the manufacturer of T495D106K035ATE250?
KEMET
