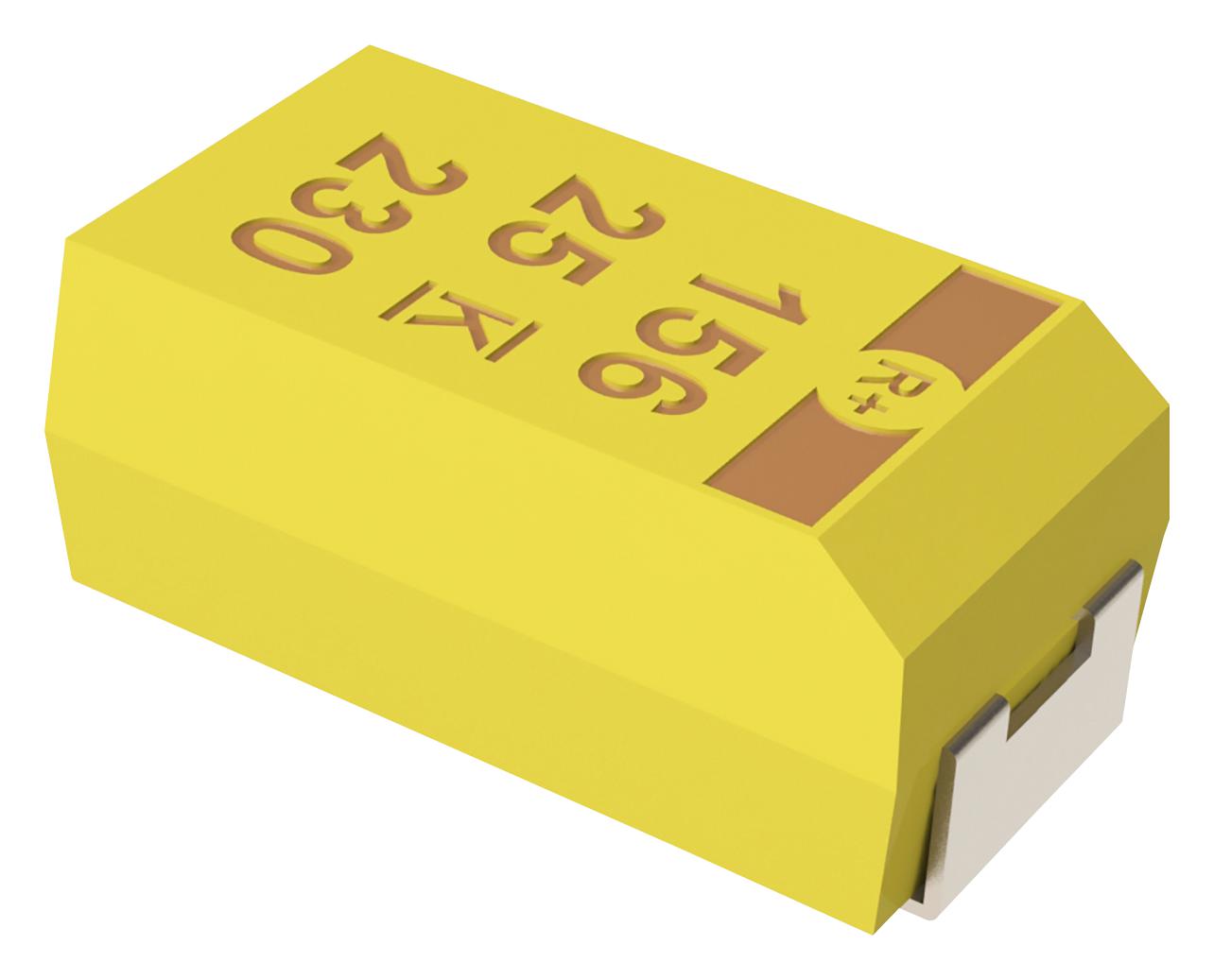

KEMET T495X686K020ATE200 Tantalum Capacitor
The T495X686K020ATE200 is a high-quality SMD tantalum capacitor with a capacitance of 68 uF and a voltage rating of 20 VDC, suitable for various electronic applications. Manufactured with MnO2 dielectric and low ESR technology, it offers excellent performance with a low dissipation factor and reliable operation over a wide temperature range of -55°C to +125°C. Its molded construction ensures durability and ease of placement in surface-mount assemblies. Weighing approximately 652 mg, this capacitor supports high ripple currents and maintains stability in demanding environments. Ideal for power supply filtering, decoupling, and timing circuits, ensuring reliable performance in compact designs.
KEMET T495X686K020ATE200 Tantalum Capacitor Specifications:
- Capacitance: 68 uF
- Voltage Rating: 20 VDC at 85°C, 13.4 VDC at 125°C
- Capacitance Tolerance: 10%
- Dimensions: Length 4.3mm ±0.3mm, Height 4mm ±0.3mm, Width 4.3mm ±0.3mm
- Temperature Range: -55°C to +125°C
- Dissipation Factor: 6% at 120Hz, 25°C
- Leakage Current: 13.6 μA at specified conditions
- Resistance (ESR): 200 mΩ at 100kHz, 25°C
- Ripple Current: 363.2 mA at 85°C
- Rated Temperature: 85°C
- Body Material: Molded MnO2 Tantalum
- Termination: Tin-plated
- Packaging: T&R, 178mm reel, Quantity: 500
- RoHS Compliant: Yes
- Component Weight: 652.04 mg
- Shelf Life: 156 weeks
- MSL: 1
Buy the Buy aYAGEO T495X686K020ATE200 Part Number T495X686K020ATE200 Online
Purchase the aYAGEO T495X686K020ATE200 tantalum capacitor online today. With 68 uF capacitance, 20 VDC rating, low ESR, molded design, and broad temperature range, this component is perfect for power supply, decoupling, and filtering applications. Its compact size and high reliability ensure optimal performance in demanding electronic circuits. Enjoy quick delivery, competitive prices, and secure checkout while upgrading your projects with top-quality passive components. Order now to keep your designs efficient and dependable.
Order your aYAGEO Series T495X686K020ATE200 today and enjoy reliable power filtering for your electronic projects.
Frequently Asked Questions
Where can I buy KEMET T495X686K020ATE200?
You can click on the BUY or RFQ button to purchase T495X686K020ATE200 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part T495X686K020ATE200?
You can download the T495X686K020ATE200 datasheet or visit the KEMET website for support.
Who is the manufacturer of T495X686K020ATE200?
KEMET
