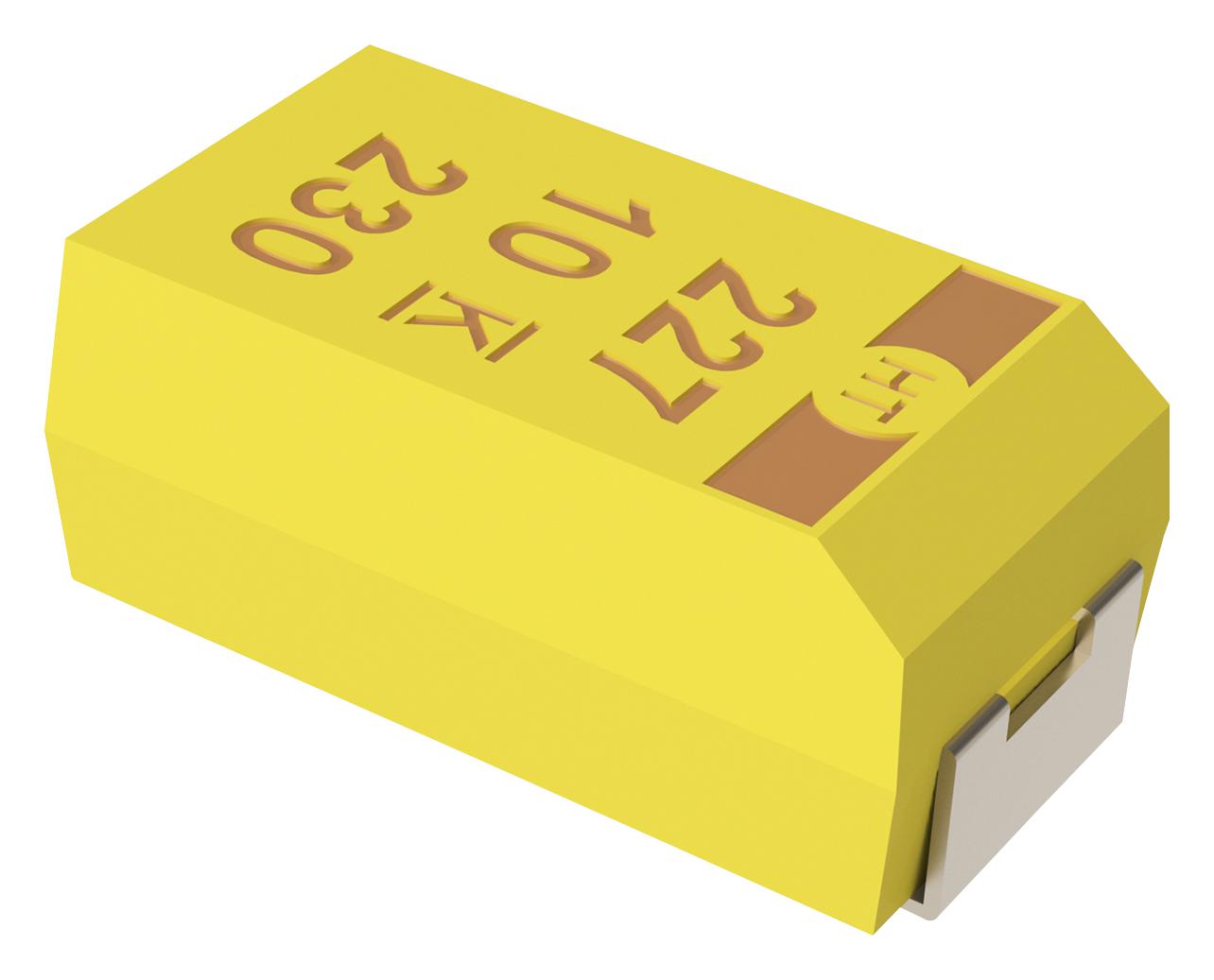

KEMET T498X476K035ATE500 High-Temperature Tantalum Capacitor
The T498X476K035ATE500 is a high-temperature, 47 uF tantalum capacitor with a 10% tolerance rated at 35 VDC. Designed for automotive and industrial applications, it operates reliably up to 150°C, featuring a molded MnO2 dielectric and SMD chip style for easy surface mounting. It is RoHS compliant, has a maximum height of 4.3mm, and includes features like low ESR at 85°C, leakage current of 16.5 uA, and robust qualification under AEC-Q200 standards, ensuring long-term durability in demanding environments.
KEMET T498X476K035ATE500 High-Temperature Tantalum Capacitor Specifications:
- Capacitance: 47 uF
- Capacitance Tolerance: 10%
- Voltage: 35 VDC
- Operating Temperature Range: -55°C to +150°C
- Maximum Height: 4.3mm
- Dimensons: Length 7.3mm ±0.3mm, Width 4.3mm ±0.3mm
- Leakage Current: 16.5 uA
- Dissipation Factor: 6% at 120Hz, 25°C
- Ripple Current: 516.6 mA (rms, 85°C), 172.2 mA (rms, 150°C)
- Qualification: RoHS, AEC-Q200
- Packaging: T&R, 178mm reel, Quantity: 500
Buy the KEMET Series 1498 Tantalum Capacitor: T498X476K035ATE500
Acquire the high-temperature tantalum capacitor designed for demanding environments. The 47uF, 35V component features molded MnO2 dielectric, surface-mount SMD style, and is RoHS compliant. Its robust construction guarantees performance up to 150°C, making it ideal for automotive, industrial, and power applications. With low leakage current, excellent stability, and AEC-Q200 qualification, this capacitor ensures long-lasting reliability and efficiency. Order online now and benefit from quick delivery and superior quality standards tailored for your electronic projects.
Get KEMET T498X476K035ATE500 today—built for automotive reliability and high-temperature performance.
Frequently Asked Questions
Where can I buy KEMET T498X476K035ATE500?
You can click on the BUY or RFQ button to purchase T498X476K035ATE500 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part T498X476K035ATE500?
You can download the T498X476K035ATE500 datasheet or visit the KEMET website for support.
Who is the manufacturer of T498X476K035ATE500?
KEMET
