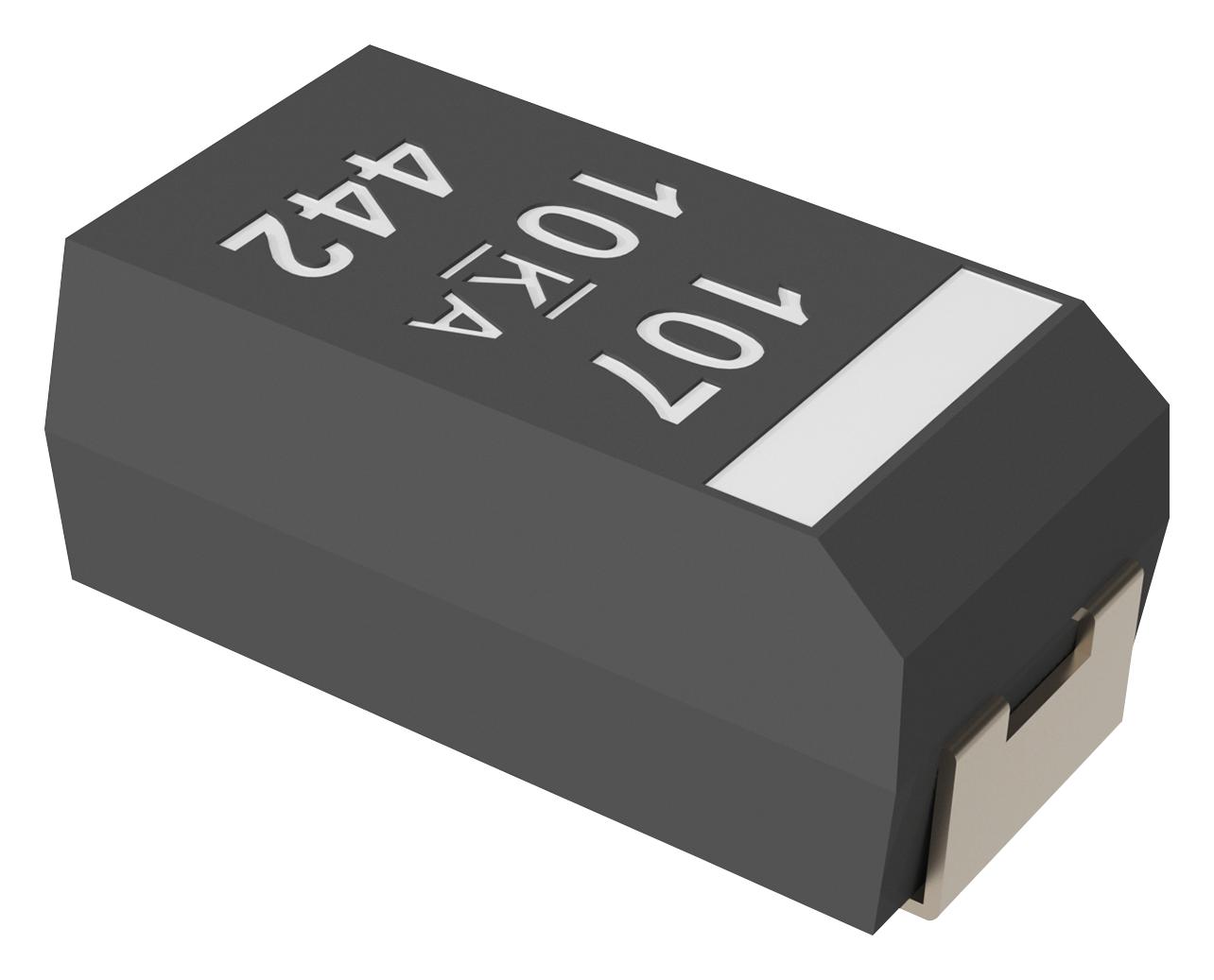

KEMET T520Y687M006ATE018 Polymer Tantalum Capacitor
This polymer tantalum SMD capacitor features a 680 uF capacitance with 20% tolerance, rated at 6.3 VDC for reliable use in various electronic applications. It boasts a low ESR of 18 mOhms, non-combustible construction, and a molded design for durability. The component has a maximum height of 4mm, measures 7.3mm by 4.3mm, and is suitable for surface-mount technology. It is RoHS compliant, with tin terminations, and offers excellent stability over a temperature range of -55°C to +105°C, making it ideal for industrial, automotive, and consumer electronics.
KEMET T520Y687M006ATE018 Polymer Tantalum Capacitor Specifications:
- Capacitance: 680 uF
- Capacitance Tolerance: 20%
- Rated Voltage: 6.3 VDC at 105°C
- Temperature Range: -55°C to +105°C
- Dimensions: Length 7.3mm ±0.3mm, Width 4.3mm ±0.3mm, Height Max 4mm
- ESR: 18 mOhms (100kHz 25°C)
- Leakage Current: 428.4 uA (5 min at 25°C)
- Ripple Current: 3700 mA (85°C, 100kHz)
- Failure Rate: N/A
- Termination: Tin
- Material: Polymer Tantalum, Molded
- RoHS: Yes
- Shelf Life: 52 Weeks
- Packaging: T&R, 178mm, Quantity: 500
Buy the KEMET T520Y687M006ATE018 – Reliable Polymer Tantalum SMD for Industrial Applications
Purchase the KEMET T520Y687M006ATE018 polymer tantalum surface-mount capacitor online today. Designed with a 680 uF capacitance, 6.3 VDC rating, and low ESR, this molded component ensures reliable performance in industrial, automotive, and consumer electronics. Its compact size of 7.3mm by 4.3mm and height of 4mm make it perfect for space-constrained designs. RoHS compliant with tin termination, it provides excellent stability from -55°C to +105°C, delivering durable, high-quality performance across various applications.
Get KEMET T520Y687M006ATE018 today—engineered for high stability, low ESR, and long-lasting durability in demanding electronic environments.
Frequently Asked Questions
Where can I buy KEMET T520Y687M006ATE018?
You can click on the BUY or RFQ button to purchase T520Y687M006ATE018 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part T520Y687M006ATE018?
You can download the T520Y687M006ATE018 datasheet or visit the KEMET website for support.
Who is the manufacturer of T520Y687M006ATE018?
KEMET
