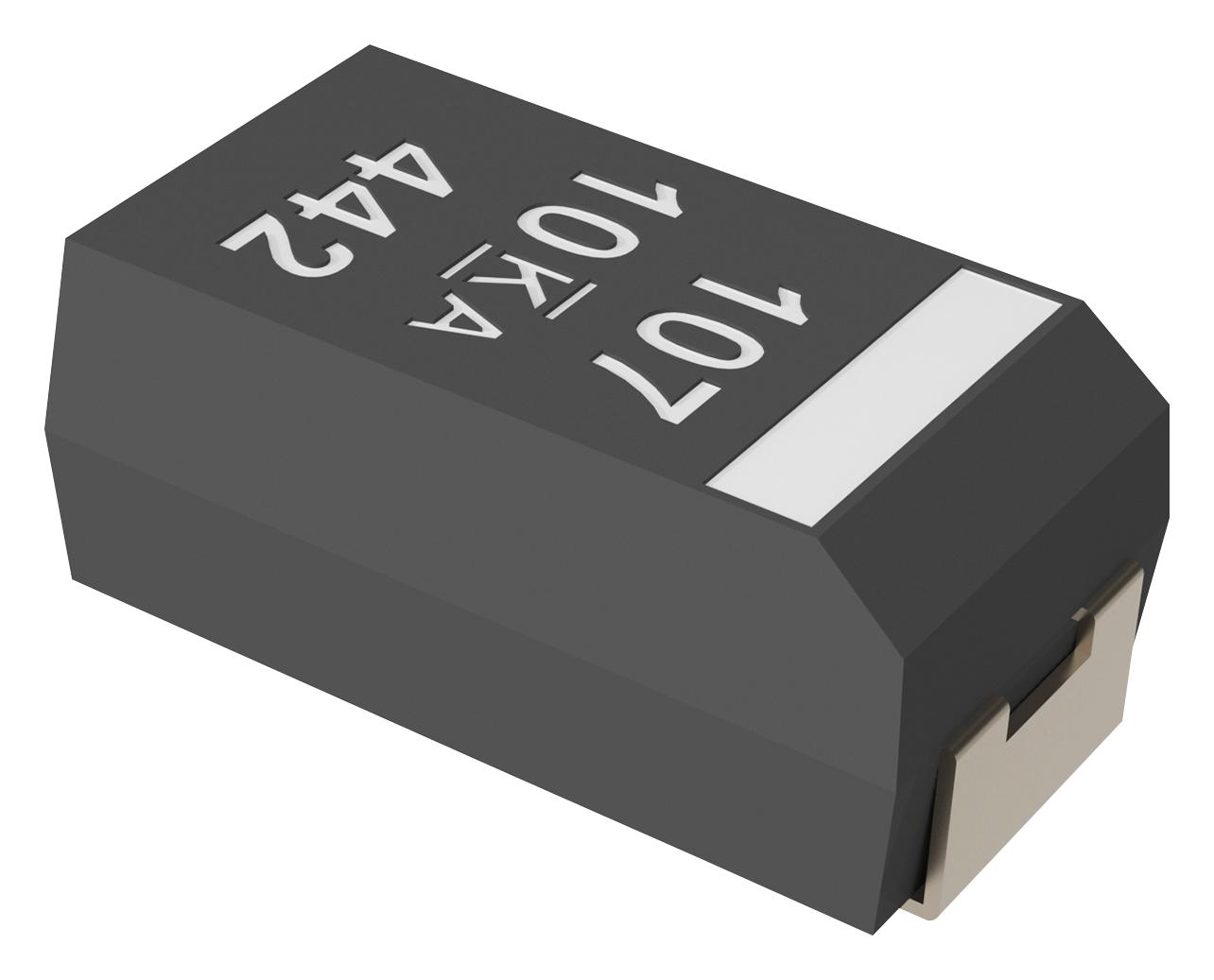

KEMET T521B335M050ATE200 Polymer Tantalum Capacitor
The T521B335M050ATE200 is a high-quality polymer tantalum SMD chip capacitor with a capacitance of 3.3 uF, 20% tolerance, and a voltage rating of 50 VDC. Designed with low ESR and non-combustible features, it is ideal for high-reliability applications requiring stable performance and durability. Its compact 3528 footprint measures 3.5mm x 2.8mm, with a maximum height of 2mm. This capacitor withstands temperatures from -55°C to +105°C and has a lifespan of 2000 hours, making it suitable for various electronic circuits and industrial uses.
KEMET T521B335M050ATE200 Polymer Tantalum Capacitor Specifications:
- Capacitance: 3.3 uF
- Capacitance Tolerance: 20%
- Rated Voltage: 50 VDC
- Temperature Range: -55°C to +105°C
- Maximum Height: 2mm
- Dimensions: 3.5mm x 2.8mm
- Ripple Current: 250 mA at 85°C
- Leakage Current: 16.5 µA (5 min at 25°C)
- Resistance: 200 mOhms at 100 kHz, 25°C
- Packaging: Tape & Reel, 2000 units
- Features: Low ESR, Non-Combustible, Molded Polymer
- Termination: Tin
- Shelf Life: 52 Weeks
- Biased Life: 2000 hours at 105°C
- Dissipation Factor: 8% at 120Hz, 25°C
- Humidity: 90% RH, 500 hours, no failure
- Compliance: RoHS
Buy the KEMET Series T521 Tantalum Polymer Capacitor: T521B335M050ATE200
Purchase the KEMET T521B335M050ATE200 polymer tantalum SMD capacitor online today. With a capacitance of 3.3 uF, 50 VDC voltage rating, and low ESR, it ensures reliable performance in demanding electronic applications. Its compact size of 3.5mm x 2.8mm makes it suitable for space-constrained designs, while its temperature range of -55°C to +105°C and a lifespan of 2000 hours guarantee durability and stability. Ideal for industrial, medical, and consumer electronics, buy now to upgrade your circuit reliability with proven quality.
Order your KEMET Series T521B335M050ATE200 high-reliability polymer tantalum capacitor today and enhance your electronic designs with dependable, low-ESR performance.
