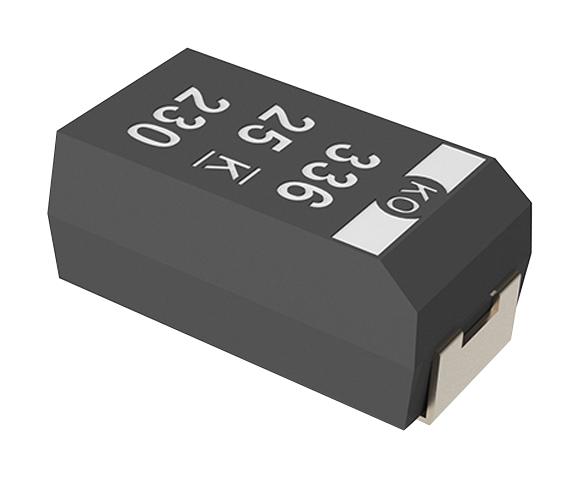

KEMET T521D106M050ATE120 Polymer Tantalum Capacitor
The T521 series is an organic surface-mount Tantalum Capacitor with a conductive polymer cathode, offering ultra-low ESR, excellent high-frequency capacitance retention, and long lifespan. It combines the advantages of low ESR akin to multilayer ceramics, high capacitance comparable to aluminum electrolytics, and efficient volumetric design of tantalum capacitors. Designed for high-voltage, demanding electronic circuits, it features a compact, halogen-free epoxy package for stability and reliability over temperature variations. Suitable for high ripple current applications, it is 100% surge tested for enhanced durability.
KEMET T521D106M050ATE120 Polymer Tantalum Capacitor Specifications:
- Capacitance: 10 uF
- Capacitance Tolerance: 20%
- Voltage: 50 VDC
- Temperature Range: -55/+125°C
- Rated Temperature: 105°C
- Lifetime: 2000 hours @ 125°C
- Leakage Current: 50 μA at 25°C
- Dissipation Factor: 10% at 120Hz, 25°C
- Resistance: 120 mOhms (100kHz, 25°C)
- Ripple Current: 1620 mA (rms, 85°C)
- Dimensions: Length 7.3mm ±0.3mm, Height Max 3.1mm, Footprint 7.3mm
- Terminations: Tin-plated
- Packaging: T&R, 178mm reel, Quantity: 500
- Compliance: RoHS
Buy the KEMET T521D106M050ATE120 – Reliable High-Voltage Polymer Tantalum Capacitor for Industrial Applications
Order the KEMET T521D106M050ATE120 polymer tantalum capacitor online today and enhance your electronic designs with low ESR, high reliability, and excellent high-frequency performance. Perfect for high-voltage, demanding applications requiring long lifespan, stable operation, and high ripple current handling. With this capacitor, you get precision manufacturing, robust construction, and proven durability, ensuring your project’s success. Elevate your circuit performance—buy now and experience quality that lasts in challenging environments.
Buy KEMET T521D106M050ATE120 now and experience unmatched reliability, low ESR, and high ripple current capability for demanding electronic projects.
Frequently Asked Questions
Where can I buy KEMET T521D106M050ATE120?
You can click on the BUY or RFQ button to purchase T521D106M050ATE120 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part T521D106M050ATE120?
You can download the T521D106M050ATE120 datasheet or visit the KEMET website for support.
Who is the manufacturer of T521D106M050ATE120?
KEMET
