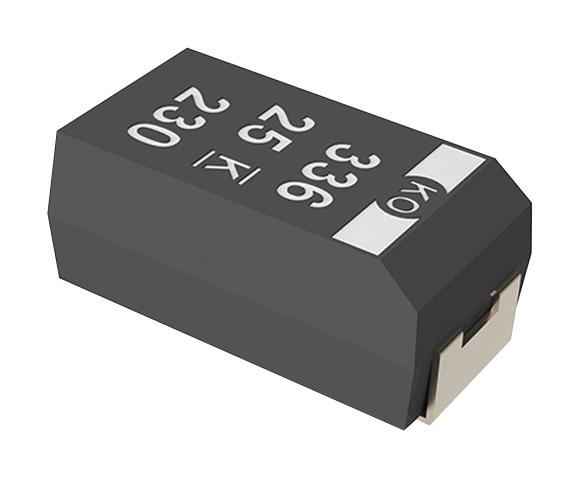

KEMET T521T336M016ATE045 Tantalum Capacitor
The T521 series organic surface-mount Tantalum Capacitor features a conductive polymer cathode, offering very low ESR and excellent capacitance retention at high frequencies. It combines the low ESR performance of multilayer ceramic capacitors, the high capacitance of aluminum electrolytic capacitors, and the volumetric efficiency of tantalum in a compact package. This KO-CAP series provides long operational life, high ripple current capacity, and reliable high-voltage performance, making it ideal for critical electronic applications. Each unit undergoes 100% surge current testing for quality assurance, ensuring stable operation in demanding environments.
KEMET T521T336M016ATE045 Tantalum Capacitor Specifications:
- Capacitance: 33 uF
- Capacitance Tolerance: 20%
- Voltage DC: 16 VDC at 105°C
- Temperature Range: -55/+105°C
- Rated Temperature: 105°C
- Height Max: 1.2mm
- Footprint: 3528
- Dissipation Factor: 8% at 120Hz 25°C
- Leakage Current: 52.8 μA (5 min at 25°C)
- Resistance: 45 mOhms (100kHz 25°C)
- Ripple Current: 1323 mA (rms, 85°C), 472.5 mA (rms, 105°C)
- Shelf Life: 52 Weeks
- MSL: 3
- Component Weight: 54.84 mg
- RoHS Compliant: Yes
Buy the KEMET Series T521 Tantalum Capacitor: T521T336M016ATE045
Purchase the KEMET T521T336M016ATE045 Tantalum Capacitor online today. Designed with a conductive polymer cathode, it offers exceptionally low ESR, high ripple current capacity, and stable performance over wide temperature ranges. Its compact 3528 footprint makes it ideal for space-constrained applications, providing reliable high-voltage operation and long operational life. Perfect for high-frequency circuits, power supplies, and embedded electronics, this capacitor ensures consistent performance in demanding environments. Buy now for quality that meets the highest standards of reliability and durability.
Get KEMET T521T336M016ATE045 today—built for high-performance and long-lasting durability in demanding electronic circuits.
