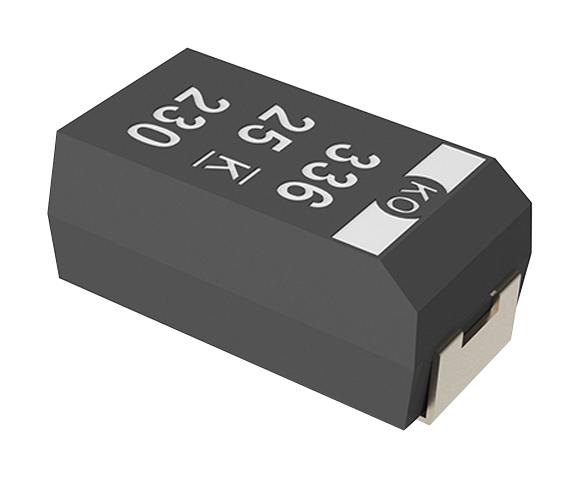

KEMET T521X186M050ATE070 Tantalum Capacitor
The T521 series organic surface-mount Tantalum Capacitor features a conductive polymer cathode, offering very low ESR and enhanced high-frequency capacitance. It combines benefits of multilayer ceramic and aluminum electrolytic capacitors in a compact, reliable package with stable temperature characteristics and high ripple current capability. Designed for high-voltage applications, it exhibits long operational life, low profile, halogen-free epoxy, and is 100% surge tested. This capacitor is an ideal alternative to liquid electrolyte capacitors, suitable for various demanding electronic circuits requiring durability and consistent performance.
KEMET T521X186M050ATE070 Tantalum Capacitor Specifications:
- Capacitance: 18 uF
- Capacitance Tolerance: 20%
- Rated Voltage: 50 VDC
- Temperature Range: -55/+125°C
- Rated Temperature: 105°C
- Dimensions: Length 7.3mm +/-0.3mm, Height Max 4.3mm, B 0.5mm +/-0.15mm, A 3.6mm MIN, P 1.7mm
- Resistance: 70 mOhms (100kHz 25C)
- Dissipation Factor: 10% 120Hz 25C
- Leakage Current: 90 uA (at 25°C)
- Life: 2000 hours at 125°C
- Shelf Life: 52 weeks
- MSL: 3
- Packaging: T&R, 178mm reel, Quantity: 500
- RoHS Compliant: Yes
- Features: Low ESR, High Voltage, Molded, Non-Combustible, Halogen-Free
- Certifications: RoHS Compliant
- Construction: Polymer Tantalum, Molded, Surface-Mount
- Material: Conductive Polymer Cathode
Buy the KEMET Series T521 Tantalum Capacitor: T521X186M050ATE070
Discover the high-quality T521 series tantalum capacitor featuring low ESR, stable performance, and high ripple current capabilities. Ideal for demanding applications requiring high reliability, this surface-mount device is designed for long operational life and high voltage operation. Its compact form factor, halogen-free construction, and surge testing ensure durability and safety in various electronic circuits. Perfect for high-frequency applications, this capacitor enhances the overall stability and efficiency of your devices. Buy online today to ensure your project benefits from proven quality and consistent performance.
Order your KEMET Series T521X186M050ATE070 tantalum capacitor today and experience high reliability, low ESR, and excellent high-frequency performance for your demanding projects.
Frequently Asked Questions
Where can I buy KEMET T521X186M050ATE070?
You can click on the BUY or RFQ button to purchase T521X186M050ATE070 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part T521X186M050ATE070?
You can download the T521X186M050ATE070 datasheet or visit the KEMET website for support.
Who is the manufacturer of T521X186M050ATE070?
KEMET
