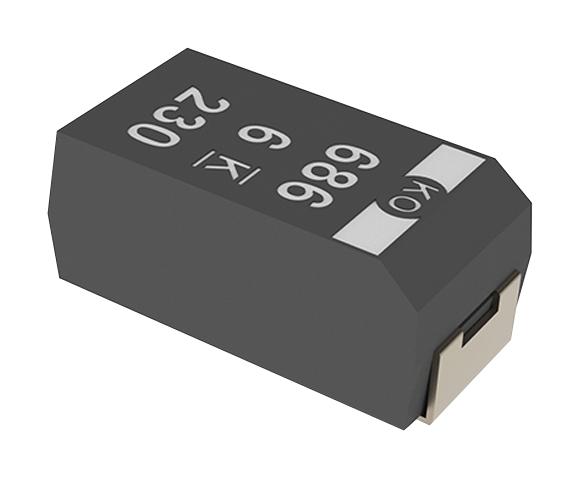

KEMET T525D337M2R5ATE025 Polymer Tantalum Capacitor
The T525 series organic surface-mount Tantalum Capacitor features a conductive polymer cathode, providing very low ESR and excellent capacitance retention at high frequencies. Combining the low ESR qualities of multilayer ceramic capacitors, the high capacitance of aluminum electrolytic capacitors, and the volumetric efficiency of tantalum, this KO-CAP series offers a compact, reliable solution. It boasts a long operational lifespan, high ripple current capability, and stable performance up to 125°C, suitable for automotive, industrial, and military high-temperature applications. Its features include low ESR, high frequency retention, volumetric efficiency, surge testing, and halogen-free casing.
KEMET T525D337M2R5ATE025 Polymer Tantalum Capacitor Specifications:
- Physical Size: 7.3 mm (L) x 4.0 mm (W) x 2.0 mm (H)
- Capacitance: 33 μF
- Capacitance Tolerance: ±20%
- Rated Voltage: 2.5 V
- Temperature Range: -55°C to 125°C
- ESR: ≤ 25 mΩ at 100 kHz
- Leakage Current: ≤ 0.1 CV at rated voltage for 5 minutes
- Surge Current: 100% tested
- Package: RoHS, Halogen Free, EIA standard case sizes
- Material: Conductive polymer cathode, TaO₂ dielectric
- Power Capability: Supports high ripple currents and transient conditions
Buy the Buy KEMET T525 Series Polymer Tantalum Part Number T525D337M2R5ATE025 Online
Discover the high-performance KEMET T525 series polymer tantalum capacitor with ultra-low ESR, high temperature stability, and excellent ripple current handling. Perfect for demanding automotive, industrial, and military applications, it guarantees reliability and long life. Order online now to benefit from fast delivery, competitive prices, and expert support. Whether you need a specific capacitance and voltage rating or custom solutions, our platform offers secure, easy purchasing with worldwide technical assistance to help you complete your project efficiently.
Order your KEMET T525 series high temperature low ESR polymer tantalum capacitor today and ensure reliable performance in demanding automotive and industrial projects.
Frequently Asked Questions
Where can I buy KEMET T525D337M2R5ATE025?
You can click on the BUY or RFQ button to purchase T525D337M2R5ATE025 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part T525D337M2R5ATE025?
You can download the T525D337M2R5ATE025 datasheet or visit the KEMET website for support.
Who is the manufacturer of T525D337M2R5ATE025?
KEMET
