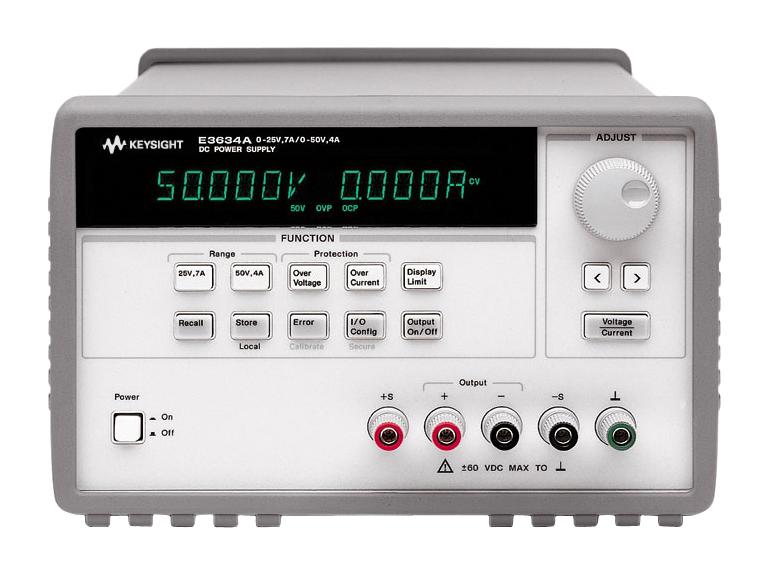

KEYSIGHT TECHNOLOGIES E3634A programmable power supply
The Keysight 200W GPIB single-output E3634A is a high-performance programmable DC power supply ideal for manual and automated testing applications. It provides low noise, precise regulation for voltage and current, and dual-range output options. Featuring remote sensing, GPIB and RS-232 interfaces, and save/recall functions, it ensures accurate measurements and reliable operation. Overvoltage and overcurrent protections safeguard connected devices. The versatile design includes front and rear terminals for easy wiring, making it suitable for test & measurement, power management, and research environments. The package includes the power supply, guides, reference CD, and power cord.
KEYSIGHT TECHNOLOGIES E3634A programmable power supply Specifications:
- Power Rating: 200 W
- Output Voltage: 0 to +25 V, -25 V, and +6 V (triple outputs)
- Output Current: Up to 7 A (for +25 V and -25 V), 5 A (for 6 V)
- Line Regulation: <0.01% + 2 mV
- Load Regulation: <0.01% + 2 mV
- Ripple and Noise: <3604 μVrms / 2 mVp-p (voltage), <2 mArms (current)
- Accuracy (12 months): 0.05% + 10 mV / 0.2% + 10 mA
- Transient Response: Less than 50 μs to recover within 15 mV
- Remote Sensing: Yes
- Interfaces: GPIB and RS-232 standard
- Dimensions: 213 mm W x 183 mm H x 348 mm D
- Weight: 8.2 kg (18 lbs) net
- Input Power: 100/115/230 Vac options, 50/60 Hz
- Protection: Overvoltage and overcurrent protections
- Compliance: CSA, IEC, CE, CISPR-11 Group 1 Class A
Buy the Keysight Series E3634A DC Power Supply: 200W 25V 7A
Upgrade your laboratory or testing setup with the Keysight Series E3634A 200W programmable power supply, offering precise control, low noise, and dual-range output. Featuring GPIB and RS-232 interfaces, remote sensing, and advanced protections, it ensures accurate measurements and reliable performance across test and measurement, R&D, and power management applications. Easily connect to your automation systems and enjoy quick setup with front and rear terminals for flexible wiring options. Buy online today and bring dependable testing power to your projects, backed by comprehensive documentation and support.
Order your Keysight Series E3634A 200W programmable power supply today and enhance your test accuracy with reliable, low-noise power in demanding environments.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES E3634A?
You can click on the BUY or RFQ button to purchase E3634A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part E3634A?
You can download the E3634A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of E3634A?
KEYSIGHT TECHNOLOGIES
