KEYSIGHT TECHNOLOGIES E3648A CAL Datasheet & Stock

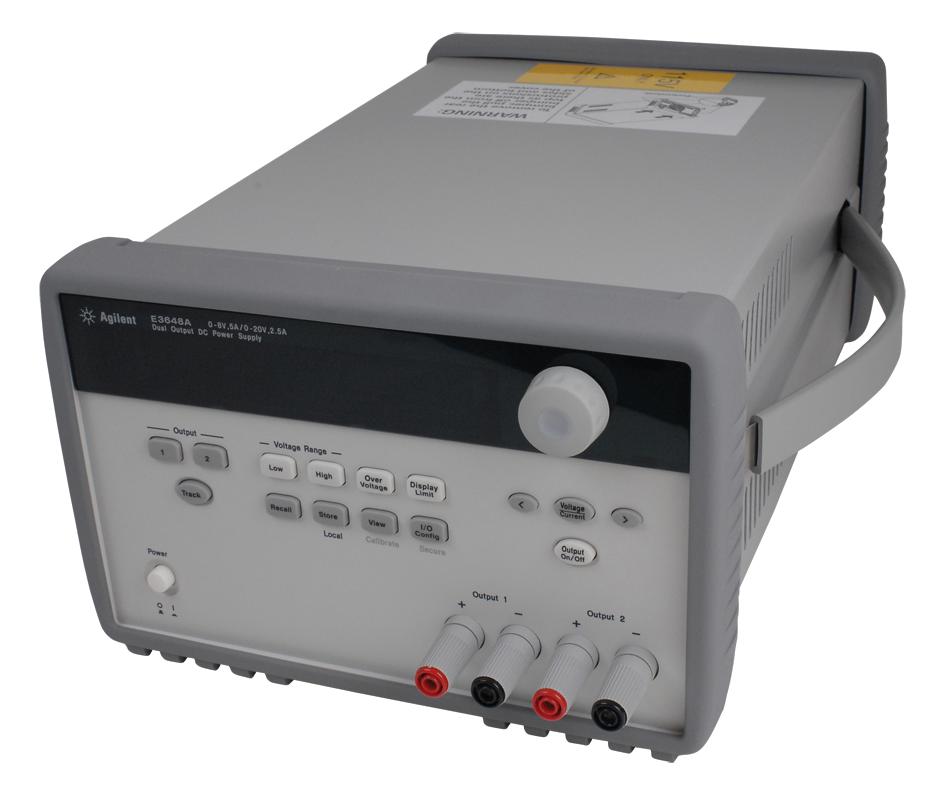

The E3648A CAL from Keysight Technologies is an E364xA series 100W, dual output programmable DC power supply. It is a stable and reliable power supply for benchtop and basic automated test applications. E3648A provides excellent regulation, fast transient response and built-in GPIB and RS232 interfaces. It is designed to meet the needs of R&D design verification, production testing, QA verifications and other demanding applications with Keysight Technologies’s quality and reliability. With 0.01% + 3mV and line regulation, power supply is able to maintain a steady output when a power line and load changes occurs. It also specify normal mode voltage noise and low common mode current noise. The low normal mode noise specification assures clean power for precision circuitry applications and the low common mode current provides isolation from power line current injection. Keysight E364xA power supplies specify less than 90msec of voltage settling time at any output load conditions.




Calibrated programmable DC power supply

DC output rating is two 0 to 8V/5A or 0 to 20V/2.5A

AC input voltage is 115VAC ±10% (std)

Highly visible vacuum fluorescent display, selectable dual range provides flexibility & convenience

Store and recall up to five different operating status in non- volatile storage locations

Electronic calibration from the front panel, rear output and sensing terminals

Set the overvoltage protection and enable the overvoltage protection circuit

Rotary knob for quick, analogue control of voltage/current, cooling fan with automatic speed control

Versatile binding posts offer flexibility to use safety test leads, banana plugs or stripped wires

Dimension (without bumper) is 212.8mm W x 133mm H x 348.3mm D & weight is 9.2Kg





Applications


Test & Measurement






Contents

E3648A programmable DC power supply, User’s & service guide, Product reference CD, AC power cord.
