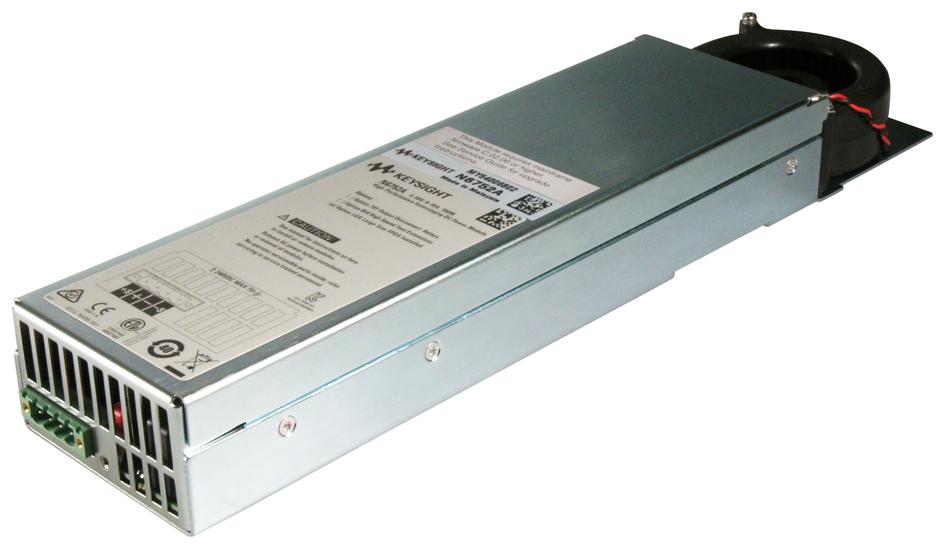

KEYSIGHT-TECHNOLOGIES N6752ACAL High-Performance DC Power Module
The Keysight N6752A CAL is a high-performance, calibrated DC power module from the N6750 series. It offers up to 50V, 10A, and 100W, with low noise, high accuracy, and rapid programming speeds—up to 50 times faster than conventional programmable power supplies. An optional high-speed test extension provides an oscilloscope-like digitizer, enhancing measurement precision for high-speed transient or pulse events within the device under test (DUT). Suitable for use in modular power systems such as the N6700 series (for ATE systems) and the N6705 DC power analyzer (for bench testing), it supports GPIB, LAN, USB, and LXI standards. The unit can connect up to four modules in parallel or series, functioning as multiple power supplies in one device. It features low output ripple and noise, high accuracy in sourcing and measurement, and precise control with fine programming resolution. Measurement and source effects, as well as temperature coefficients, are optimized for reliable testing applications.
KEYSIGHT-TECHNOLOGIES N6752ACAL High-Performance DC Power Module Specifications:
- Voltage Range: Up to 50 V
- Current Range: Up to 10 A
- Power Rating: 100 W
- Ripple & Noise: Low ripple, peak-to-peak 12 mV / RMS 2 mV
- Measurement Accuracy: 0.1% + 20 mV (voltage), 0.15% + 20 mA (current)
- Source/Measure Functionality: Both voltage and current outputs with high accuracy
- Measurement Resolution: Fine control with microvolt and microampere measurement accuracy
- High-Speed Test Extension: Oscilloscope-like digitizer, up to 97,656 samples/sec
- Connectivity: GPIB, LAN, USB, LXI-compliant
- Number of Modules Supported: Up to 4 modules in parallel or series
- Protection: Over-voltage, over-current, and over-temperature
- Environment: Operates at 0°C to 55°C, up to 95% humidity, altitude up to 2000 m
- Dimensions: 44.45 mm height, 432.5 mm width, 585.6 mm depth
- Weight: Approximately 2.3 kg
Buy the Buy KEYSIGHT N6752A CAL Part Number N6752ACAL Online
Order the KEYSIGHT N6752A CAL today and experience a high-performance, calibrated DC power module. With support for multiple modules in parallel or series, it delivers up to 50V, 10A, and 100W with ultra-low noise and rapid programming speeds—up to 50 times faster than standard supplies. Its versatile design supports GPIB, LAN, USB, and LXI interfaces, making it ideal for automated test systems and bench testing. Incorporate advanced measurement features including a digitizer for high-speed transient analysis, ensuring reliable, precise testing in various applications.
Get KEYSIGHT N6752A CAL today—high-speed, high-accuracy programmable DC power module for demanding automation and test applications.
Frequently Asked Questions
Where can I buy KEYSIGHT-TECHNOLOGIES N6752ACAL?
You can click on the BUY or RFQ button to purchase N6752ACAL from an authorized KEYSIGHT-TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part N6752ACAL?
You can download the N6752ACAL datasheet or visit the KEYSIGHT-TECHNOLOGIES website for support.
Who is the manufacturer of N6752ACAL?
KEYSIGHT-TECHNOLOGIES
