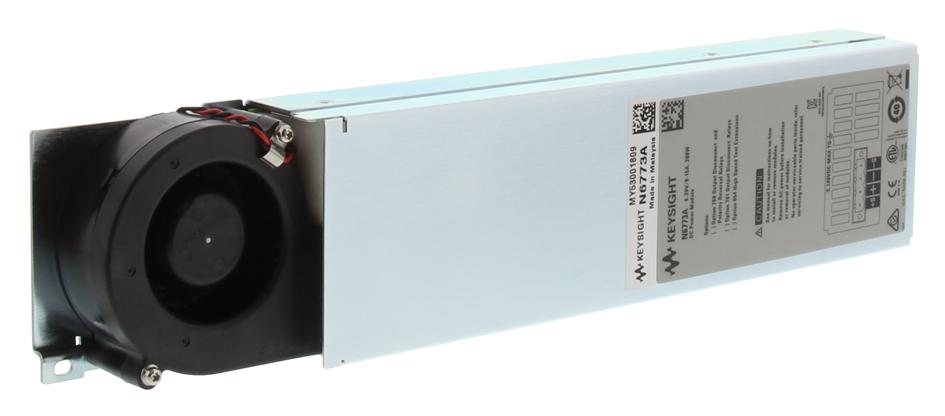

KEYSIGHT TECHNOLOGIES N6773A DC Power Module
The Keysight N6773A is a compact, programmable DC power module capable of delivering up to 20V, 15A, and 300W. Designed for automated test equipment (ATE) systems in research and development, design validation, and manufacturing, this power supply offers flexible modular configurations with up to four outputs in a 1U rack space. It provides precise voltage and current control, fast response times, and measurement and protection features. Connectivity options include GPIB, LAN, and USB, with full compliance to LXI Class C standards, making it suitable for critical testing and power management applications.
KEYSIGHT TECHNOLOGIES N6773A DC Power Module Specifications:
- Output Voltage: 20 V
- Output Current: 15 A
- Power Output: 300 W
- Measurement: Advanced voltage and current measurement
- Protection Features: Over-voltage, over-current, over-temperature protection
- Connectivity: GPIB, LAN, USB 2.0
- Compliance: Fully compliant with LXI Class C standards
- Size: 1U rack space, compact design
- Response Time: Fast command processing and output speed
- Environment: Indoor use, operating temperature 0°C to 55°C, humidity up to 95%
- Weight: Approximate weight 2.5 kg (5.5 lbs)
- Dimensions: 1.75 in. (H) x 4.32 in. (W) x 6.34 in. (D)
Buy the Keysight Series N6700 High-Performance DC Power: N6773A
Enhance your testing setup with the Keysight N6773A DC Power Module. Offering precise voltage and current regulation, fast response times, and multiple connectivity options, this module is perfect for automated test equipment, R&D, and manufacturing applications. Its compact 1U design saves rack space, and full compliance with LXI Class C standards ensures seamless integration. Whether for critical performance or basic power requirements, this module provides flexibility, reliability, and superior measurement accuracy, making it a valuable addition to any automated testing environment.
Buy Keysight N6773A now and experience unmatched reliability and performance for your automated testing needs.
Frequently Asked Questions
Where can I buy KEYSIGHT TECHNOLOGIES N6773A?
You can click on the BUY or RFQ button to purchase N6773A from an authorized KEYSIGHT TECHNOLOGIES distributor.
How do I troubleshoot issues or seek technical support for part N6773A?
You can download the N6773A datasheet or visit the KEYSIGHT TECHNOLOGIES website for support.
Who is the manufacturer of N6773A?
KEYSIGHT TECHNOLOGIES
