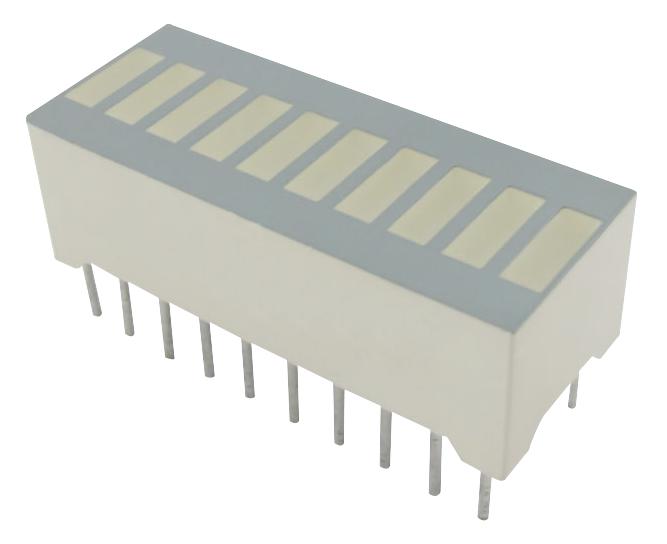

KINGBRIGHT DC10SYKWA LED Bar Graph Display
The DC-10SYKWA is a 10-segment LED bar graph display with a white diffused lens. It features super bright yellow LEDs made from AlGaInP on GaAs substrate, ideal for level indication. The device operates at low current, offers excellent ON/OFF contrast, and is end stackable for modular applications. Its rugged mechanical design includes a standard grey face with white segments. Suitable for automation, process control, sensing, instrumentation, industrial applications, and signaling. Note that lead times may vary due to market demand; no discounts available on this product.
KINGBRIGHT DC10SYKWA LED Bar Graph Display Specifications:
- Power dissipation: 75 mw
- Dc Forward Current: 30 mA
- Peak Forward Current: 175 mA
- Reverse Voltage: 5 V
- Operating / Storage Temperature: -40°C to +85°C
- Wavelength: 590 nm
- Luminous Intensity: 110000 ucd (typical)
- Luminous Flux: +/- 15%
- Capacitance: 20 pF
- Forward Voltage: 2.0 V (typical)
- Lead Solder Temperature: 260°C for 3-5 seconds
- Package Dimensions: Length 25.4 mm, width 3.7 mm, height 20 um
- RoHS compliant, end stackable, rugged, suitable for automation and industrial signaling
Buy the Kingbright DC10SYKWA – Reliable Yellow LED Bar Graph for Industrial Applications
Order the Kingbright DC10SYKWA LED bar graph display online now to enhance your automation systems, level indicators, and industrial signaling needs. This rugged, super bright yellow LED array is ideal for process control, sensing, and instrumentation applications, offering excellent contrast and energy efficiency. With end stackable design and reliable construction, it ensures long-term durability in demanding environments. Experience quick delivery and trusted performance on your projects—purchase your LED bar graph display from our online store today and improve your industrial solutions.
Get Kingbright DC10SYKWA today—built for precision and long-lasting durability, perfect for level indication, automation, and industrial signaling projects.
Frequently Asked Questions
Where can I buy KINGBRIGHT DC10SYKWA?
You can click on the BUY or RFQ button to purchase DC10SYKWA from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part DC10SYKWA?
You can download the DC10SYKWA datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of DC10SYKWA?
KINGBRIGHT
