KINGBRIGHT KA2810AQBSG Blue SMD Chip LED

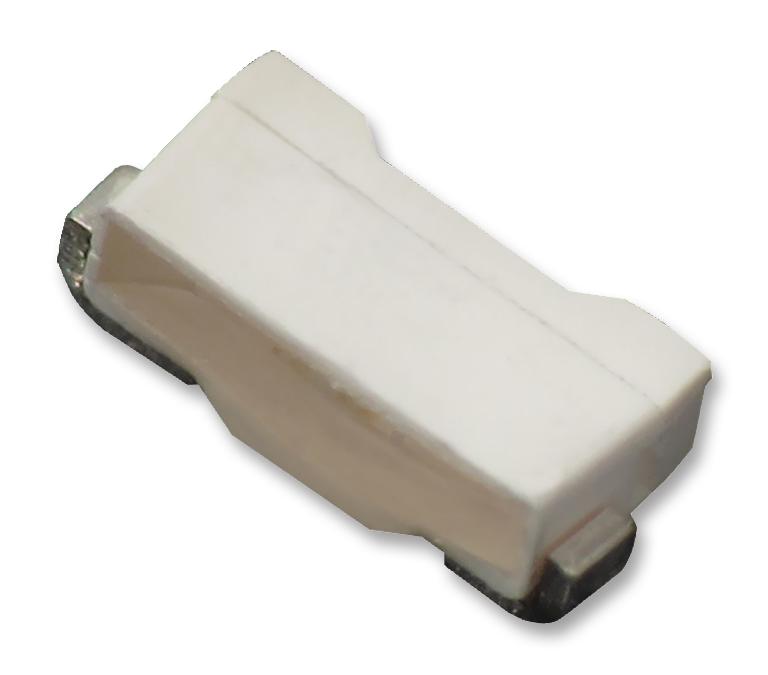

The KA-2810AQBS-G is a blue right-angle SMD chip LED with dimensions of 2.8mm x 0.8mm and a water-clear lens. It uses InGaN technology as the light source, making it suitable for backlighting and indicator applications. The LED features low power consumption and a moisture sensitivity level of 3. It is primarily used in LED lighting applications. Please note that market demand has extended lead times, and delivery dates may vary. The device is sensitive to electrostatic discharge (ESD), so proper handling precautions are recommended.
KINGBRIGHT KA2810AQBSG Blue SMD Chip LED Specifications:
- Dimensions: 2.8mm x 0.8mm x 1.2mm thickness
- Lens type: Water clear
- Technology: InGaN
- Peak wavelength: 461 nm
- Forward Voltage: 3.3V typical, 4V max at 20mA
- Reverse Current: 50 uA at 5V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture sensitivity level: 3
- Power Dissipation: 120 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 150 mA
- Reflow soldering recommended; temperature max 260°C
- Package: 2000 pcs per reel
- RoHS compliant
Buy the Kingbright KA-2810AQBS-G – Reliable Blue Indicator LED for Industrial Applications
Purchase the Kingbright KA-2810AQBS-G blue right-angle SMD chip LED online today to benefit from fast delivery and competitive pricing. This LED features a water-clear lens, low power consumption, and a robust InGaN light source, making it ideal for backlight and indicator applications in various industrial lighting setups. Its compact 2.8mm x 0.8mm size ensures easy integration into tight spaces. To maintain optimal performance, handle considering ESD precautions and follow recommended reflow soldering profiles. Buy now and optimize your LED lighting projects with dependable quality.
Order your Kingbright KA-2810AQBS-G series LED today and enhance your backlighting solutions with a low-power, high-efficiency design designed for industrial use.
Frequently Asked Questions
Where can I buy KINGBRIGHT KA2810AQBSG?
You can click on the BUY or RFQ button to purchase KA2810AQBSG from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KA2810AQBSG?
You can download the KA2810AQBSG datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KA2810AQBSG?
KINGBRIGHT
