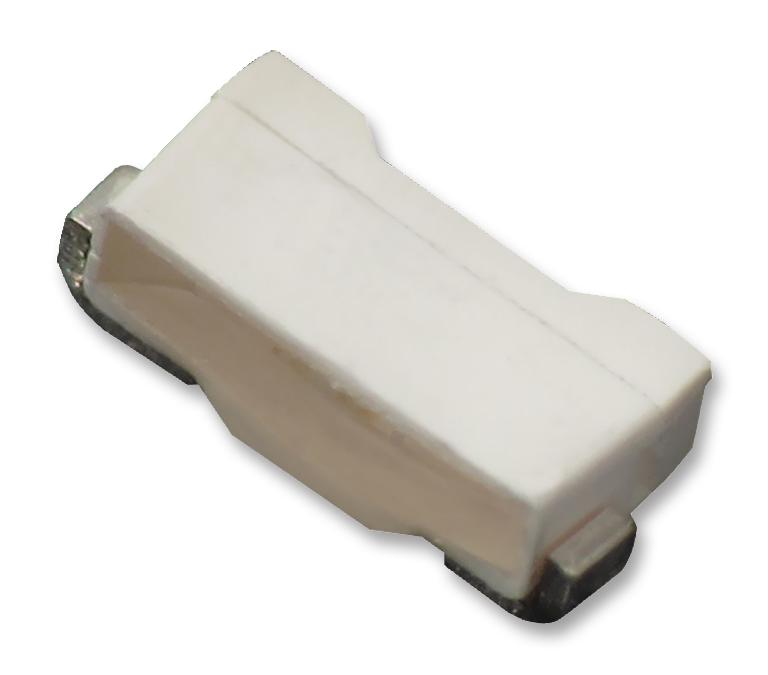

KINGBRIGHT KA2810ASURSK Right-Angle SMD LED
The KA-2810ASURSK is a 2.8 x 0.8mm right-angle blue SMD chip LED with a water-clear lens. Made with Al-GaInP on GaAs substrate, it offers bright red emission with low power consumption. Ideal for backlight and indicator functions, it features various colors and lens options. Designed for surface mounting, this LED is RoHS compliant and suits high-density assembly. Its small size and efficient performance make it suitable for compact, energy-efficient electronic devices where space-saving illumination and status indication are required. Delivery times may be extended due to high demand, with no discounts offered.
KINGBRIGHT KA2810ASURSK Right-Angle SMD LED Specifications:
- Size: 2.8mm x 0.8mm, thickness 1.2mm
- Lens Type: Water Clear
- Emission Color: Hyper Red (AlGaInP on GaAs substrate)
- Peak Wavelength: 645 nm
- Dominant Wavelength: 630 nm
- Luminous Intensity: (min) 150 mcd, (typ) 300 mcd
- Viewing Angle: 110°
- Forward Voltage: 1.95V at 20mA
- Peak Forward Current: 185 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Power Dissipation: 75 mW
- Reverse Voltage: 5 V
- Package: 2000 pcs per reel
- RoHS Compliance: Yes
- Solder Profile: Reflow soldering recommended at 245°C (+/-5°C), max 260°C, up to 2 reflow cycles
- Handling: Avoid direct contact with silicone lens surface to prevent damage; sensitive to external mechanical forces and gases like H2S
- Moisture Sensitivity Level: 3
Buy the Kingbright Series Hyper Red LED: KA2810ASURSK
Enhance your electronics with the Kingbright KA2810ASURSK right-angle SMD LED. This compact, water-clear lens LED offers bright red emission, low power consumption, and is designed for easy surface mounting. Perfect for backlighting and indicator applications, it ensures high reliability and ease of installation. The device's small size makes it ideal for space-constrained designs, while its RoHS compliance guarantees environmentally friendly manufacturing. Buy online now for fast delivery, guaranteed quality, and excellent performance in your electronic projects.
Get Kingbright KA2810ASURSK LED today—built for precision and long-lasting durability with efficient brightness and space-saving design.
