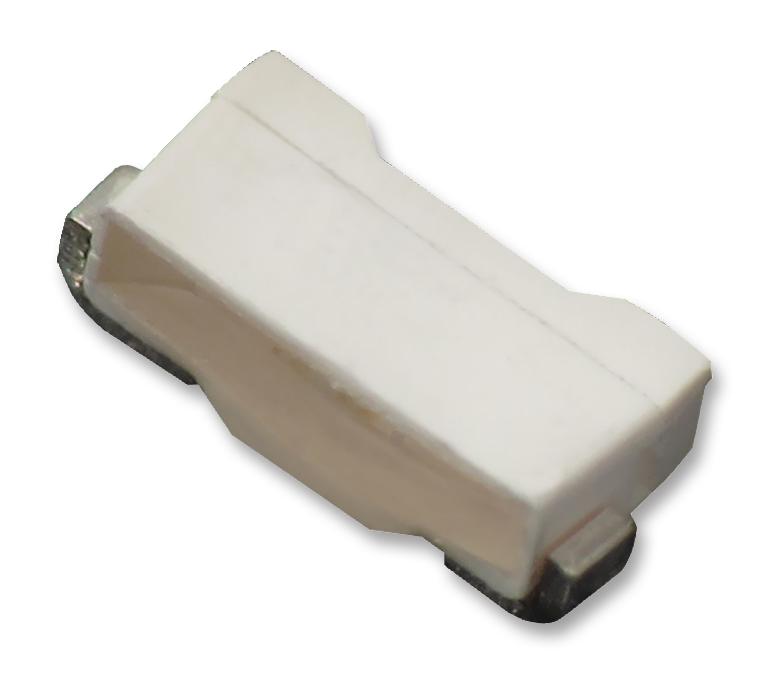

KINGBRIGHT KA2810AZGSG Green LED Lamp
The KA-2810AZGS-G is a compact 2.8 by 0.8 mm right-angle surface-mount green LED lamp designed for backlighting and indicator use. Featuring a water-clear lens and utilizing an InGaN diode, it produces a bright green light at 520 nm wavelength with minimal power consumption. This low-profile device has a 1.2 mm thickness, with a maximum forward voltage of 4 V at 20 mA and a peak current capacity of 100 mA. Suitable for electronics and signaling applications, it requires careful handling due to its silicone encapsulation and electrostatic sensitivity. Reflow soldering is recommended, with specific temperature profiles to ensure reliability.
KINGBRIGHT KA2810AZGSG Green LED Lamp Specifications:
- Size: 2.8mm x 0.8mm with 1.2mm thickness
- Wavelength: 520 nm (green light)
- Forward Voltage: 3.2V typical at 20mA, Max 4V
- Peak Forward Current: 100mA
- DC Forward Current: 30mA
- Reverse Voltage: 5V
- Peak Wavelength: 520 nm
- Spectral Line Half-width: 35 nm
- Capacitance: 100 pF
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Power Dissipation: 120mW
- Moisture Sensitivity Level: 3
- Handling Precautions: Use anti-electrostatic measures, avoid handling lens surface, and be cautious of gas permeable silicone encapsulation.
- Package: 2000 pcs per reel
- Soldering Method: Reflow recommended at 245°C (+/-5°C), max 260°C
- Lens Type: Water Clear
- Viewing Angle: 110°
Buy the Kingbright Series KA-Series Green LED: KA2810AZGS-G
Order the Kingbright Green LED Lamp KA2810AZGS-G online today and enhance your electronic projects with a compact, high-brightness LED. This surface-mount device features a water-clear lens for excellent light dispersion, making it ideal for backlighting and indicator applications. With low power consumption and a robust design, it provides long-lasting performance. Easy to install using reflow soldering, it is suitable for various electronic devices. Secure your supply now and ensure optimal visual signaling in your product designs.
Buy Kingbright KA2810AZGS-G now and experience unmatched reliability and performance in LED indicators and backlighting solutions.
Frequently Asked Questions
Where can I buy KINGBRIGHT KA2810AZGSG?
You can click on the BUY or RFQ button to purchase KA2810AZGSG from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KA2810AZGSG?
You can download the KA2810AZGSG datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KA2810AZGSG?
KINGBRIGHT
