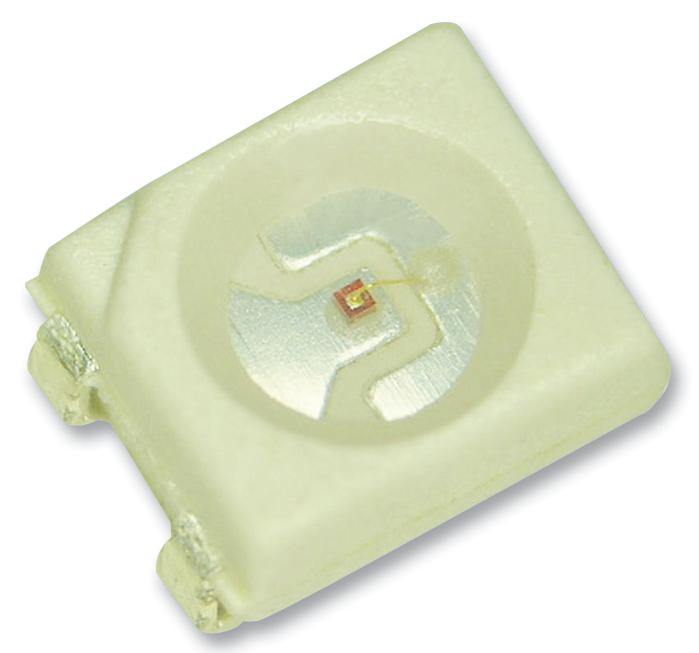

KINGBRIGHT KA3528SECKT Super Bright Orange LED
The KA-3528SECKT is a 3.5 x 2.8mm super bright orange SMD LED with a water-clear lens, made with AlGaInP on GaAs substrate. It offers high brightness, ideal for backlighting, signaling, and industrial lighting. Suitable for all SMT processes, it features RoHS compliance and moisture sensitivity level 4. The device exhibits a peak wavelength of 610 nm, dominant wavelength of 601 nm, and an operating temperature range of -40°C to +85°C. The LED's small form factor and high luminous intensity make it perfect for compact, efficient electronic lighting solutions.
KINGBRIGHT KA3528SECKT Super Bright Orange LED Specifications:
- Package Dimensions: 3.5 x 2.8mm
- Lens Type: Water Clear
- Peak Wavelength: 610 nm
- Dominant Wavelength: 601 nm
- Spectral Line Half-width: 29 nm
- Capacitance: 15 pF
- Forward Voltage: 24-25 V at 20mA
- Reverse Current: 10 μA at 5 V
- Power Dissipation: 75 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 195 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level: 4
- Soldering: Reflow recommended, profile includes max temperature of 260°C, 2 reflows maximum
Buy the Buy Kingbright Super Bright Orange LED Part Number KA3528SECKT Online
Order the Kingbright KA3528SECKT super bright orange LED online today for reliable, high-intensity illumination ideal for backlighting, signaling, and industrial lighting applications. Featuring a compact 3.5 x 2.8mm package, water-clear lens, and RoHS compliance, this LED is engineered for precision SMT assembly with extensive brightness and durability. Its high luminous flux and stable performance across a wide temperature range make it ideal for demanding electronic projects. Purchase online now for fast delivery and professional-grade performance in your electronic designs.
Get Kingbright KA3528SECKT today—built for high brightness, reliable backlighting, and efficient SMT assembly.
Frequently Asked Questions
Where can I buy KINGBRIGHT KA3528SECKT?
You can click on the BUY or RFQ button to purchase KA3528SECKT from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KA3528SECKT?
You can download the KA3528SECKT datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KA3528SECKT?
KINGBRIGHT
