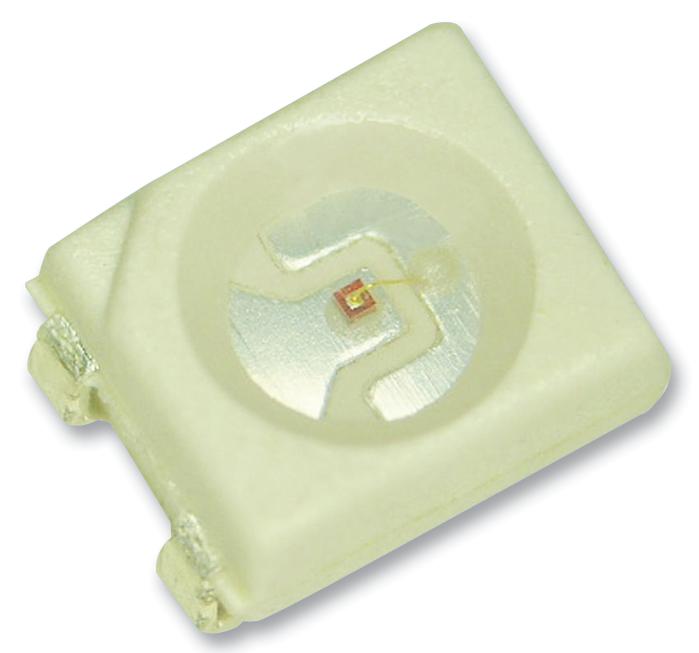

KINGBRIGHT KA3528SYCKT Surface Mount Yellow LED
The KA-3528SYCKT is a compact 3.5 x 2.8 mm super bright yellow surface-mount LED featuring a water-clear lens. Crafted with AlGaInP on GaAs substrate, it provides high luminous intensity and excellent color purity, ideal for backlighting, signage, and industrial lighting. Designed for all SMT assembly and solder processes, this single-color LED offers a forward voltage of approximately 2.25V at 20mA, with a maximum current of 30mA and an operating temperature range of -40°C to +85°C. Compliant with RoHS, it ensures environmentally friendly manufacturing and reliable performance in diverse applications.
KINGBRIGHT KA3528SYCKT Surface Mount Yellow LED Specifications:
- Package Dimensions: 3.5 x 2.8 mm
- Lens Type: Water Clear
- Luminous Intensity Min: 80 mcd at 20mA
- Peak Wavelength: 590 nm
- Dominant Wavelength: 590 nm
- Spectral Line Half-width: 20 nm
- Forward Voltage: approximately 2.25V at 20mA
- Reverse Current: 10 μA at 5V
- Power Dissipation: 75 mW
- Maximum DC Forward Current: 30 mA
- Peak Forward Current: 175 mA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- RoHS Compliant
Buy the Kingbright Series KA-3528 Yellow LED: KA3528SYCKT
Order the Kingbright Surface Mount Yellow LED now and enhance your lighting projects with high brightness and dependable performance. Engineered for all SMT assembly lines, this 3.5 x 2.8 mm LED with water-clear lens delivers vibrant yellow illumination suitable for backlighting, signage, and industrial use. It features a low forward voltage of around 2.25V at 20mA, ensuring energy-efficient operation. RoHS compliant and designed for temperature ranges from -40°C to +85°C, this LED guarantees durability and environmental safety, making it the ideal choice for your next project.
Buy Kingbright KA3528SYCKT now and experience unmatched reliability with high luminous intensity for backlighting and signage applications.
Frequently Asked Questions
Where can I buy KINGBRIGHT KA3528SYCKT?
You can click on the BUY or RFQ button to purchase KA3528SYCKT from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KA3528SYCKT?
You can download the KA3528SYCKT datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KA3528SYCKT?
KINGBRIGHT
