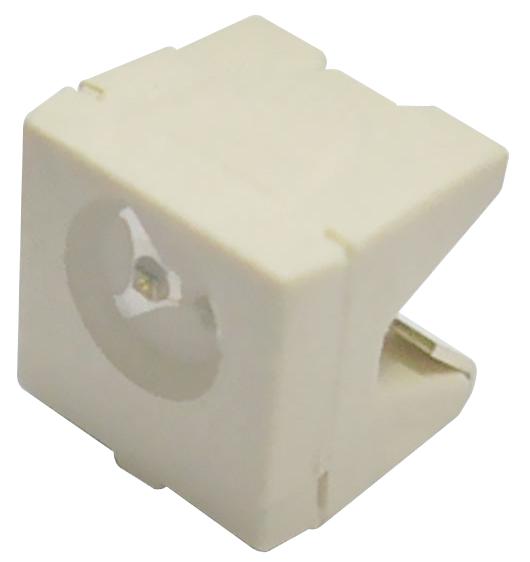

KINGBRIGHT KA4040SURSK Right-Angle Surface Mount LED
The KA-4040SURSK is a 4mm by 4mm right-angle surface-mount LED with a water-clear lens, emitting hyper red light. Made with AlGaInP technology on a GaAs substrate, it offers high brightness and reliability. The LED is compatible with all SMT assembly and soldering processes, ideal for backlighting, signage, LED lighting, and industrial signaling applications. It features a 120° viewing angle, with peak wavelength around 650 nm and forward voltage at approximately 1.95V. Suitable for various electronic and lighting projects requiring a vibrant red light source.
KINGBRIGHT KA4040SURSK Right-Angle Surface Mount LED Specifications:
- Package Dimensions: 4.0x4.0 mm, water-clear lens, 120° viewing angle
- Peak Wavelength: 650 nm, dominant wavelength: 630 nm, spectral line half-width: 28 nm
- Forward Voltage: 1.95V at 20mA, maximum DC forward current: 30mA
- Peak current: 185mA, reverse voltage: 5V, power dissipation: 75mW
- Operating Temperature: -40°C to +85°C, Storage Temperature: -40°C to +85°C
- Capacitance: 35pF, moisture sensitivity level: 3, RoHS compliant
- Reflow soldering recommended, profile max temperature 260°C
- Material: AlGaInP on GaAs substrate, with silicone encapsulation
Buy the Kingbright KA-4040SURSK – Reliable Hyper Red LED for Industrial Applications
Enhance your electronic projects with the Kingbright KA-4040SURSK, a high-quality 4x4mm hyper red surface-mount LED. Its right-angle design and water-clear lens ensure versatile installation, making it perfect for backlighting, industrial signaling, and signage. RoHS compliant and compatible with all SMT soldering processes, this LED offers excellent brightness at a forward voltage of approximately 1.95V. Its 120° viewing angle guarantees wide illumination coverage, ensuring dependable performance in demanding applications.
Buy Kingbright KA-4040SURSK now and experience unmatched reliability and performance in industrial lighting and signage projects.
Frequently Asked Questions
Where can I buy KINGBRIGHT KA4040SURSK?
You can click on the BUY or RFQ button to purchase KA4040SURSK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KA4040SURSK?
You can download the KA4040SURSK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KA4040SURSK?
KINGBRIGHT
