KINGBRIGHT KA4040ZGS Green SMT LED
The KA-4040ZGS is a compact 4x4mm right-angle surface-mount LED emitting bright green light with a water-clear lens made from InGaN on sapphire. Designed for all SMT assembly and soldering processes, it is suitable for backlighting, signaling, and industrial applications. Its RoHS compliance ensures environmental safety, while its design minimizes thermal stress with silicone encapsulation, though careful handling is required. The LED's spectral range centers around 515-525 nm, with a peak wavelength at 515 nm and a dominant wavelength at 525 nm, making it ideal for reliable, energy-efficient illumination solutions. The device has a maximum power dissipation of 102.5 mW, a forward voltage of 3.3 V, and a maximum forward current of 25 mA, capable of peak currents up to 150 mA, operating reliably from -40°C to +85°C.
KINGBRIGHT KA4040ZGS Green SMT LED Specifications:
- Package Dimensions: Length 4.157 mm, Water-clear lens, Water-clear lens, 4.0x4.0 mm package size, 2.54 mm spacing between leads, 1.4 mm height
- Electrical Characteristics: Forward Voltage 3.3 V at 20 mA, Max Power Dissipation 102.5 mW, Peak Forward Current 150 mA, Reverse Voltage 5 V, Spectral Wavelength 515 nm (peak), Dominant Wavelength 525 nm, Spectral Line Half-width 30 nm
- Operating Temperature Range: -40°C to +85°C, Storage Temperature Range: -40°C to +85°C, Moisture Sensitivity Level: 3, RoHS compliant
- Electrical & Mechanical Details: Capacitance 45 pF, Handling precautions include static discharge prevention, silicone encapsulation sensitivity, and proper mounting techniques, compatible with reflow soldering at 245°C, maximum soldering temperature 260°C, and up to 2 reflow cycles

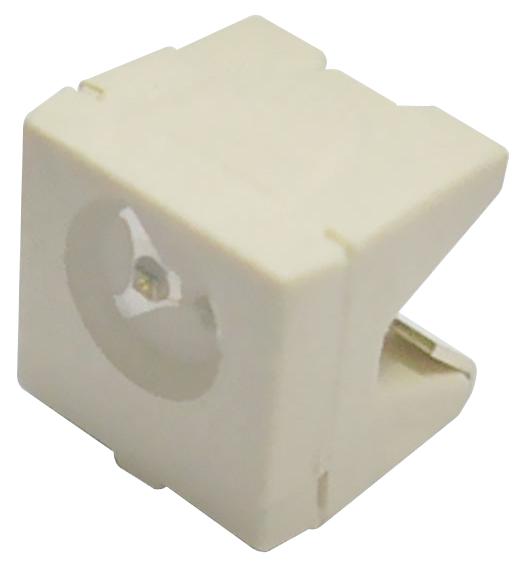

Buy the Buy Kingbright LED Part Number KA4040ZGS Online
Order the Kingbright Green SMT LED now and experience high-quality illumination for your electronics projects. The KA4040ZGS features a 4x4mm right-angle package with a water-clear lens, emitting bright green light suited for backlighting, signaling, and industrial indicators. Its InGaN on sapphire chip provides excellent brightness, reliability, and energy efficiency, operating from -40°C to +85°C. Suitable for all SMT processes, it ensures seamless integration into your manufacturing line. Secure your stock today for quick delivery, and enhance your product performance with this RoHS-compliant LED.
Buy Kingbright KA4040ZGS LED now and enjoy reliable green illumination with optimal backlighting and signaling performance for industrial applications.
Frequently Asked Questions
Where can I buy KINGBRIGHT KA4040ZGS?
You can click on the BUY or RFQ button to purchase KA4040ZGS from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KA4040ZGS?
You can download the KA4040ZGS datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KA4040ZGS?
KINGBRIGHT
