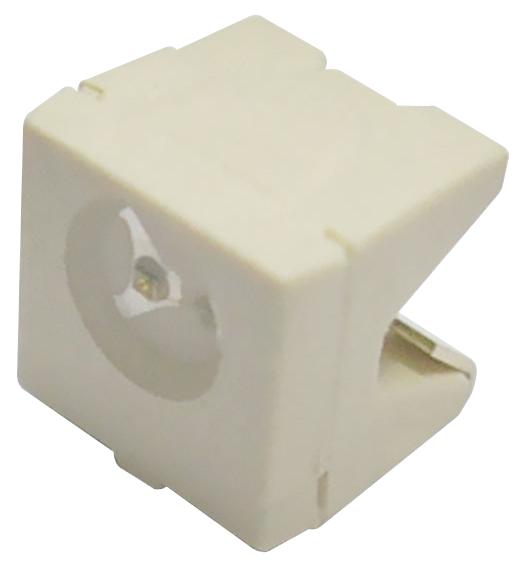

KINGBRIGHT KA4040ZGSG Surface-mount LED
The KA-4040ZGS-G is a 4x4mm right-angle surface-mount LED lamp featuring a water-clear lens and bright green color generated by InGaN technology. Designed for all SMT assembly and soldering processes, it is ideal for backlighting, signaling, and industrial lighting applications. The LED operates at 20mA with a forward voltage of 3.2-4V, and has a peak wavelength of 520 nm. With a moisture sensitivity level 3 and RoHS compliance, it requires careful handling to avoid electrostatic damage. Its robust design makes it suitable for long-term use in various electronic equipment.
KINGBRIGHT KA4040ZGSG Surface-mount LED Specifications:
- Package: 500 pieces per reel
- Dimensions: 4.0x4.0mm, water-clear lens
- Material: InGaN LED
- Peak Wavelength: 520 nm
- Forward Voltage: 3.2-4 V at 20mA
- Capacitance: 100 pF
- Maximum Power Dissipation: 120 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 100 mA (1/10 duty cycle)
- Reverse Voltage: 5 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level: 3
- RoHS compliant
- Soldering Profile: Reflow at 245°C ±5°C, max 260°C, 2 reflows max
Buy the Kingbright Series 4040 LED: KA4040ZGSG
Purchase the Kingbright Series 4040 LED model KA4040ZGSG today for precise green illumination in compact 4x4mm form factor. Ideal for backlighting, signaling, and industrial applications, this water-clear lens LED offers high brightness with a peak wavelength of 520 nm and a forward voltage of 3.2-4V. Designed for SMT assembly, it complies with RoHS standards and boasts a moisture sensitivity level 3 for reliable long-term operation. Secure your supply now to ensure steady performance in your electronic projects.
Order your Kingbright Series 4040 LED KA4040ZGSG today and enhance your projects with reliable, high-quality green indicator illumination.
Frequently Asked Questions
Where can I buy KINGBRIGHT KA4040ZGSG?
You can click on the BUY or RFQ button to purchase KA4040ZGSG from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KA4040ZGSG?
You can download the KA4040ZGSG datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KA4040ZGSG?
KINGBRIGHT
