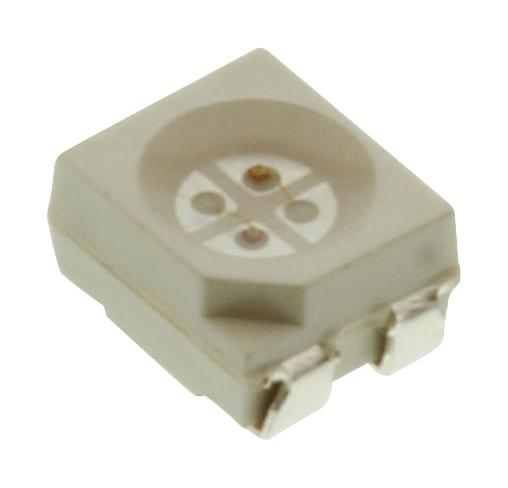

KINGBRIGHT KAA3528ESGC Bi-color Surface Mount LED
The Kingbright KAA-3528ESGC is a surface-mount, round bi-color LED designed for high efficiency illumination. It features two separate chips that can be controlled independently. The device measures 3.5mm by 2.8mm and emits red and green light using gallium arsenide phosphide and gallium phosphide technologies. The red LED provides a forward voltage of 2.0V, a forward current of 20mA, dominant wavelength at 625nm, peak wavelength at 627nm, and luminous intensity of 30mcd at 120°. The green LED has a forward voltage of 2.2V, same current, dominant wavelength 568nm, peak wavelength 565nm, and luminous intensity 20mcd at 120°, suitable for LED lighting, portable devices, industrial equipment, and consumer electronics.
KINGBRIGHT KAA3528ESGC Bi-color Surface Mount LED Specifications:
- Dimensions: 3.5mm x 2.8mm
- Package Type: Surface mount, tape and reel
- Chips: Red (GaAsP/GaP), Green (GaP)
- Forward Voltage: Red 2.0V, Green 2.2V at 20mA
- Forward Current: 20mA (max)
- Luminous Intensity: Red 30mcd, Green 20mcd at 120°
- Peak Wavelength: Red 627nm, Green 565nm
- Dominant Wavelength: Red 625nm, Green 568nm
- Viewing Angle: 120°
- Operating Temperature: -40°C to +85°C
- RoHS Compliant, Moisture Sensitivity Level: 4
- Materials: Gallium Arsenide Phosphide and Gallium Phosphide
- Package: 1500 pcs per reel
Buy the Kingbright KAA-3528ESGC – Reliable Bi-Color Surface Mount LED for Industrial Applications
Purchase the Kingbright KAA-3528ESGC series LED online today and benefit from high efficiency dual-color illumination. Perfect for industrial equipment, lighting, and consumer electronics, this compact 3.5x2.8mm surface mount LED features independently controllable red and green chips made with gallium arsenide phosphide and gallium phosphide. With a durable package, excellent brightness, and RoHS compliance, it guarantees reliable performance for a wide range of applications. Secure your stock now and power your electronic devices with dependable LED technology.
Order your Kingbright KAA-3528ESGC series LED today and enhance your industrial projects with high efficiency, compact dual-color illumination solutions.
Frequently Asked Questions
Where can I buy KINGBRIGHT KAA3528ESGC?
You can click on the BUY or RFQ button to purchase KAA3528ESGC from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KAA3528ESGC?
You can download the KAA3528ESGC datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KAA3528ESGC?
KINGBRIGHT
