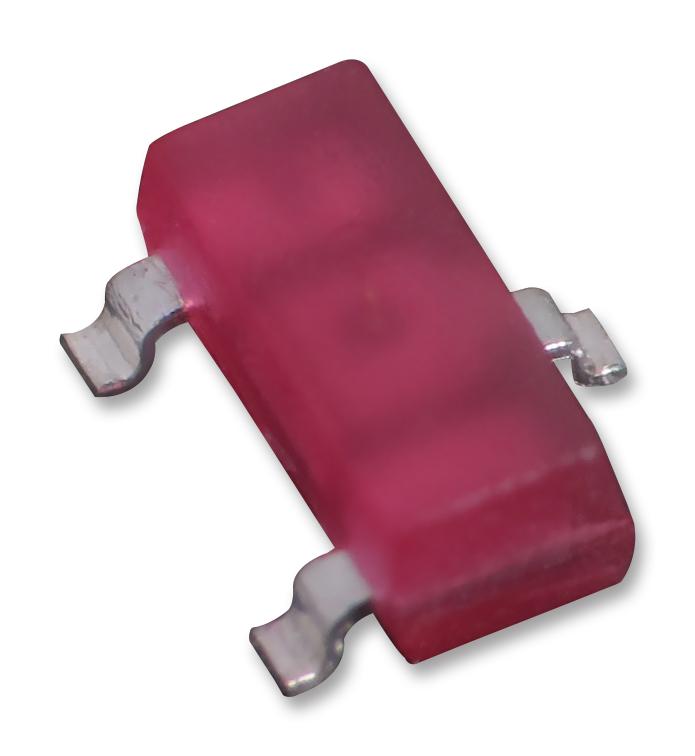

KINGBRIGHT KM23LIDF Red LED lamp
The KM-23LID-F is a high-efficiency red surface-mount LED lamp in a SOT-23 package, utilizing gallium arsenide phosphide on gallium phosphide for bright red emission. Designed for energy-efficient LED lighting and industrial use, it features low power consumption, long life, and solid-state reliability. The LED operates at IF=2mA with a forward voltage of approximately 17V and a wavelength of 617nm. It withstands temperatures from -40°C to +85°C, with a maximum power dissipation of 75mw, making it ideal for compact, reliable electronic illumination solutions.
KINGBRIGHT KM23LIDF Red LED lamp Specifications:
- Package: SOT-23 Surface Mount
- Color: Red
- Wavelength: 617 nm (Dominant), 627 nm (Peak)
- Spectral Line Half-width: 45 nm
- Forward Voltage: approximately 17 V at IF=2mA
- DC Forward Current: 30 mA
- Peak Forward Current: 160 mA
- Reverse Voltage: 5V
- Power Dissipation: 75 mW
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Luminous Intensity: 0.2 to 0.5 cd at 2mA
- Viewing Angle: 140°
- Moisture sensitivity level: Level 3
- RoHS compliant
- Soldering: Reflow profile recommended, max temp 260°C, profile duration 60-120s
- Package Dimensions: 2.1mm x 1.05mm x 0.7mm approx.
Buy the Kingbright KM-23LID-F – Reliable Red LED for Industrial Applications
Purchase the Kingbright KM-23LID-F high-efficiency red surface-mount LED online today for reliable illumination in industrial and electronic applications. This compact, RoHS compliant LED offers long life and low power consumption, suitable for demanding environments. With a broad viewing angle and consistent luminous intensity, it enhances your lighting solutions and electronic devices. Easy to install with recommended reflow soldering, ensuring durability and performance. Get your KM-23LID-F now and improve your project’s reliability and efficiency with this advanced LED technology.
Order your Kingbright Series KM-23LID-F today and ensure your projects benefit from dependable, long-lasting red LED illumination solutions.
Frequently Asked Questions
Where can I buy KINGBRIGHT KM23LIDF?
You can click on the BUY or RFQ button to purchase KM23LIDF from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KM23LIDF?
You can download the KM23LIDF datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KM23LIDF?
KINGBRIGHT
