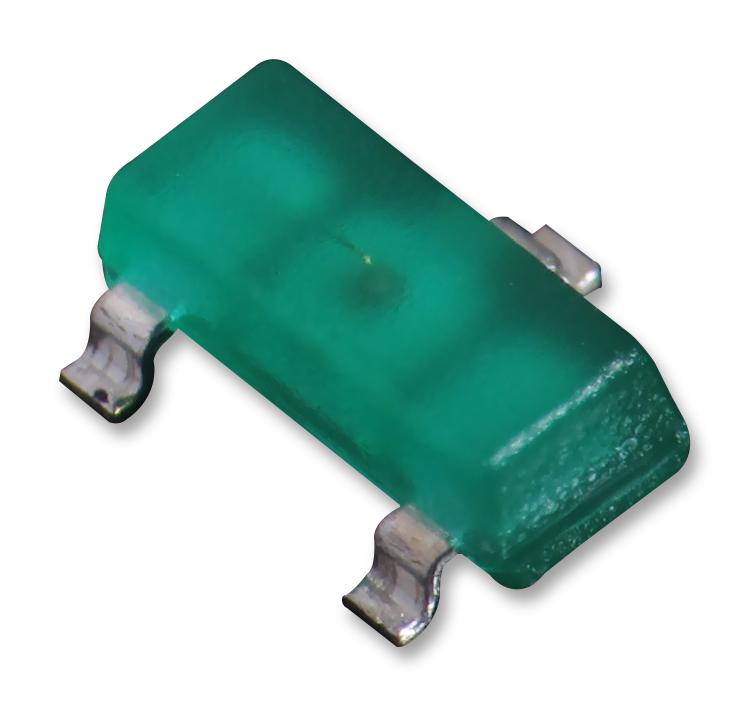

KINGBRIGHT KM23LSGDF Surface Mount Green LED
The Kingbright Super Bright Green LED in SOT-23 package is a low power, reliable surface-mount diode with gallium phosphide technology. Designed for efficient, long-lasting illumination in electronic projects, it features a 565 nm wavelength at 2mA current, with a forward voltage of 1.9V. Its compact size and moisture sensitivity level 3 make it suitable for various industrial applications, including indicator lights and illumination systems. Reflow soldering is recommended, with a profile ensuring safe handling and assembly in automated manufacturing environments.
KINGBRIGHT KM23LSGDF Surface Mount Green LED Specifications:
- Package: SOT-23 surface mount
- Color: Super Bright Green (Gallium Phosphide)
- Wavelength: 565 nm at 2mA
- Forward Voltage: 1.9V at 2mA
- Peak Wavelength: 565 nm
- Dominant Wavelength: 568 nm
- Spectral Line Half-width: 30 nm
- Capacitance: 15 pF
- Reverse Current: 10 μA at VR=5V
- Power Dissipation: 62.5 mW
- DC Forward Current: 25 mA
- Peak Forward Current: 140 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Reflow soldering profile with maximum temperature of 260°C
- Moisture sensitivity level: 3
- RoHS compliant
Buy the Kingbright KM-23LSGD-F – Reliable Green LED for Industrial Applications
Purchase the Kingbright KM-23LSGD-F Super Bright Green LED online today and enjoy rapid delivery. Ideal for industrial, electronics, and indicator applications, this SOT-23 package diode offers excellent brightness at low current, with a long lifespan and proven reliability. Its compact size and RoHS compliance make it suitable for many modern electronic designs. Get your supply now and ensure your projects benefit from top-quality illumination components that deliver both performance and durability for various industrial and consumer electronics.
Order your Kingbright KM-23LSGD-F green surface-mount LED today and enhance your lighting projects with reliable, low power illumination solutions.
Frequently Asked Questions
Where can I buy KINGBRIGHT KM23LSGDF?
You can click on the BUY or RFQ button to purchase KM23LSGDF from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KM23LSGDF?
You can download the KM23LSGDF datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KM23LSGDF?
KINGBRIGHT
