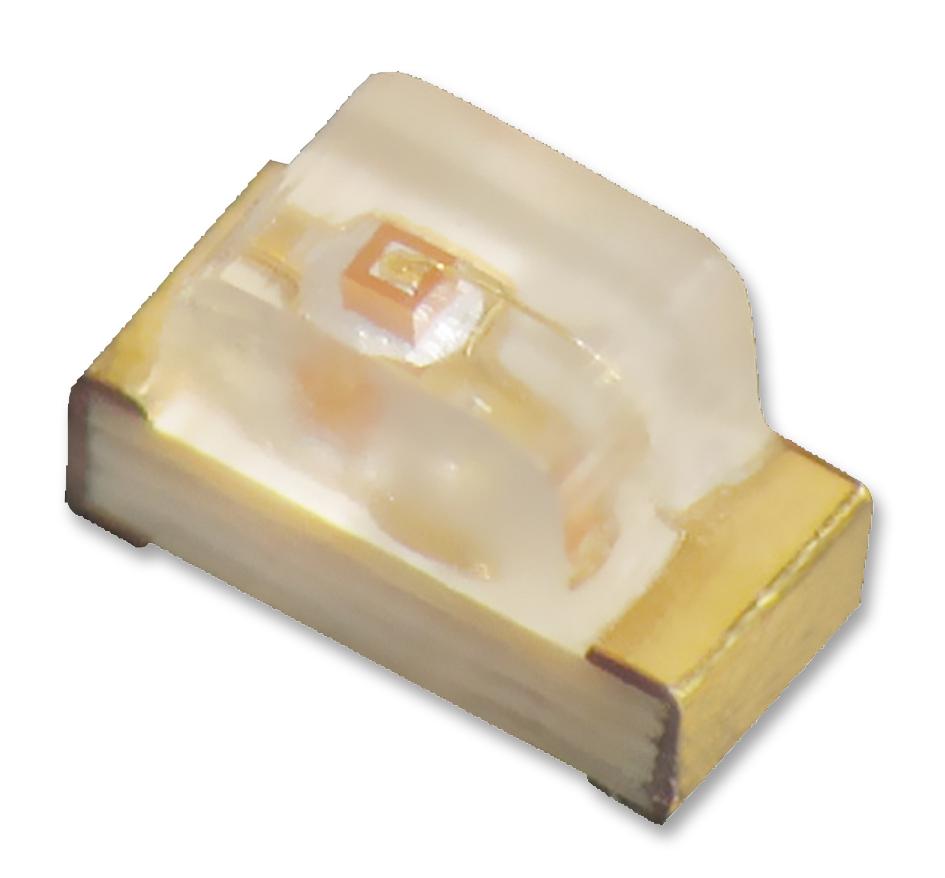

KINGBRIGHT KP1608P1C Phototransistor Module
The KP-1608P1C is a compact silicon phototransistor with a water-clear lens, designed for infrared detection and optical sensing applications. It features a small form factor of 1.6mm x 0.8mm with a thickness of 1.1mm, making it ideal for space-constrained environments such as LED lighting systems and optical communication devices. The device operates reliably within -40°C to +85°C, and its spectral matching with infrared LEDs ensures optimal performance. Suitable for industrial automation, sensors, and electronic control systems, it is RoHS compliant and compatible with reflow soldering processes for easy assembly.
KINGBRIGHT KP1608P1C Phototransistor Module Specifications:
- Size: 1.6mm x 0.8mm, thickness 1.1mm
- Material: Silicon phototransistor with water-clear lens
- Operating temperature: -40°C to +85°C
- Saturation Voltage: 0.8V at 2mA collector current
- Collector-to-Emitter Breakdown Voltage: 30V
- Power Dissipation: 100mW
- Dark Current: 100A at 10V
- Maximum Soldering Temperature: 245°C for reflow, max 260°C
- Package: SMT, reel packaging of 2000pcs
- Moisture Sensitivity Level: Level 3
- RoHS compliant
- Reflow soldering recommended with profile at 245°C (+/-5°C)
Buy the Kingbright KP1608P1C – Reliable Phototransistor for Industrial Applications
Order the Kingbright KP1608P1C phototransistor now online and enjoy fast delivery, superior quality, and proven performance in infrared detection. Perfect for compact sensor solutions and optical communication, this device offers high reliability, RoHS compliance, and easy integration with reflow soldering. Whether for industrial automation, LED lighting, or electronic control systems, buying online ensures you get the latest version at competitive prices, backed by dependable support and detailed technical specifications for all your project needs.
Buy Kingbright KP1608P1C now and experience unmatched reliability and performance in infrared sensing and optical systems.
