KINGBRIGHT KP1608SURCK Miniature SMD LED
This hyper red SMD chip LED measures 1.6mm by 0.8mm with a thickness of 1.1mm, made from AlGaInP on a GaAs substrate for bright red emission. It features low power consumption, a wide viewing angle of 120°, and is ideal for backlighting, indicators, wearable, and portable devices. The device has a spectral line half-width of 28nm, forward voltage of 1.95V at 20mA, and peak wavelength of 650nm, with a maximum power dissipation of 75mW. Suitable for high-volume automated assembly processes, it is RoHS compliant and must be handled with electrostatic precautions.
KINGBRIGHT KP1608SURCK Miniature SMD LED Specifications:
- Dimensions: 1.6mm x 0.8mm x 1.1mm thickness
- Material: AlGaInP on GaAs substrate
- Peak Wavelength: 650 nm
- Dominant Wavelength: 630 nm
- Spectral Line Half-width: 28 nm
- Forward Voltage: 1.95V at 20mA
- Maximum Power Dissipation: 75 mW
- Peak Forward Current: 185 mA
- Reverse Voltage: 5V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Viewing Angle: 120°
- Moisture Sensitivity Level: 3
- RoHS Compliant

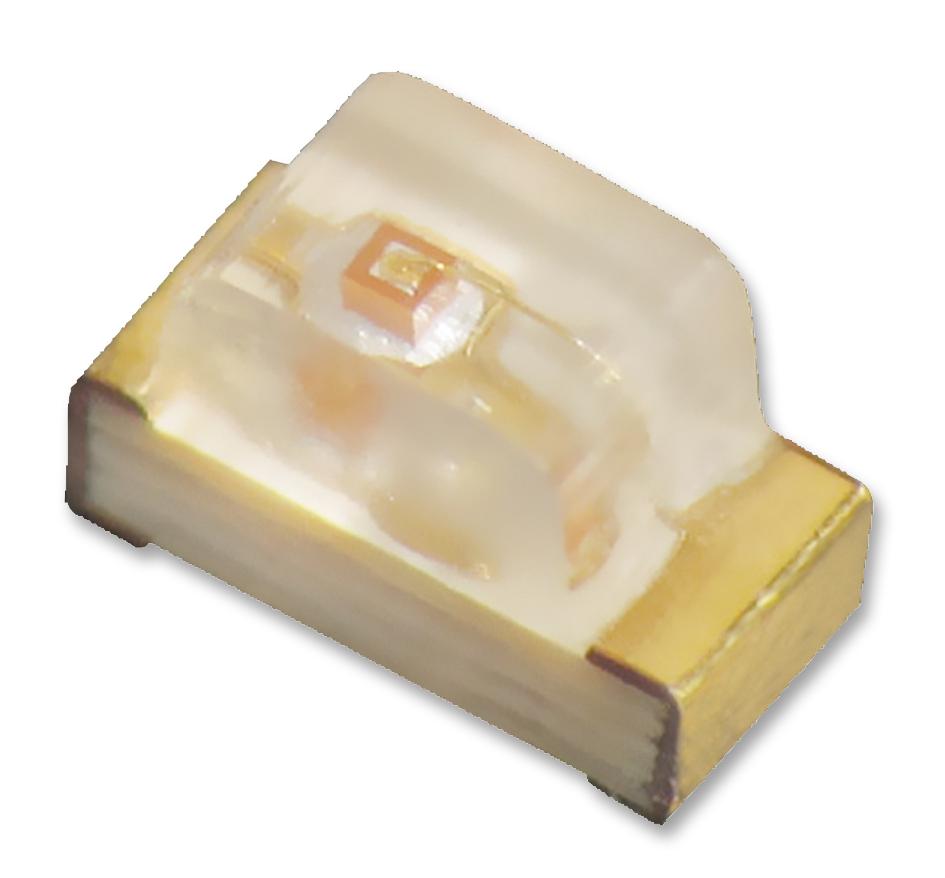

Buy the Buy Kingbright LED Part Number KP1608SURCK Online
Enhance your electronic projects with Kingbright's miniature SMD LED, KP1608SURCK. This hyper red LED offers bright illumination, low power consumption, and a wide 120° viewing angle, making it perfect for backlighting, indicators, and portable devices. Its compact 1.6x0.8mm size fits easily into automated SMT assembly lines, ensuring efficiency and reliability. RoHS compliant and designed for durability, purchase this high-quality LED online today for your manufacturing needs and innovative designs.
Get Kingbright KP1608SURCK today—built for high brightness, low power, and reliable performance in compact SMD LED applications.
Frequently Asked Questions
Where can I buy KINGBRIGHT KP1608SURCK?
You can click on the BUY or RFQ button to purchase KP1608SURCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KP1608SURCK?
You can download the KP1608SURCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KP1608SURCK?
KINGBRIGHT
