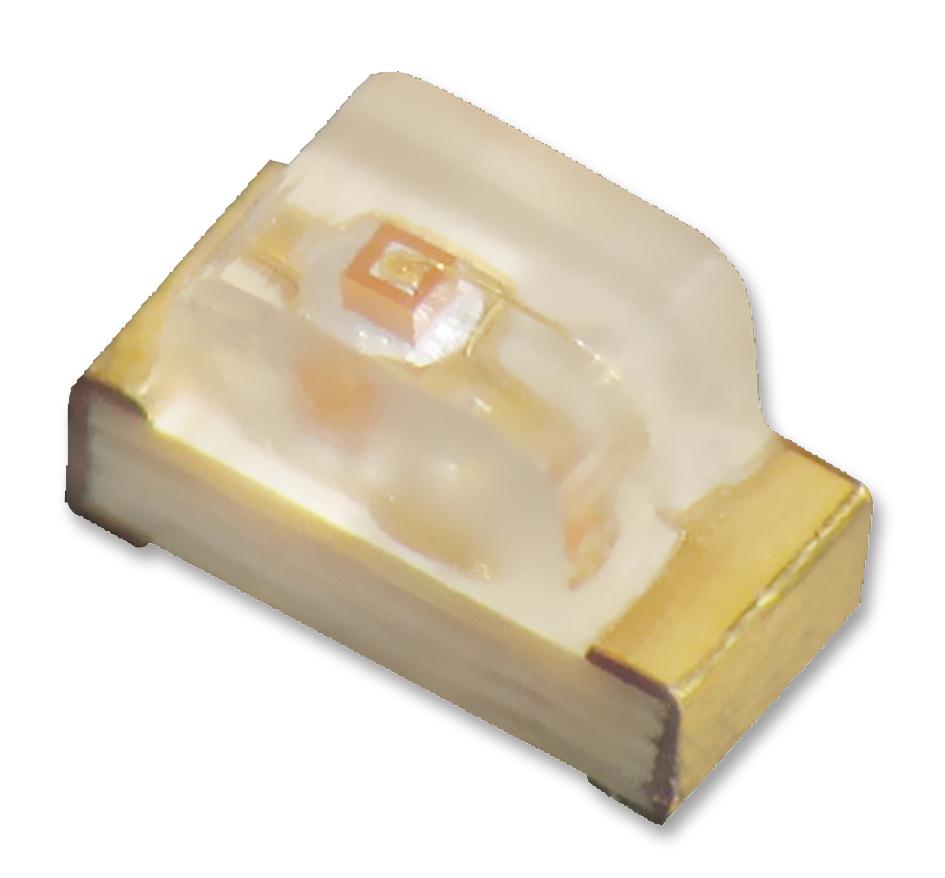

KINGBRIGHT KP1608SYCK Yellow Surface Mount LED
The KP-1608SYCK is a super bright yellow SMD chip LED with a water-clear lens, measuring 1.6 x 0.8 mm and 1.1 mm thick. Crafted with AlGaInP on a GaAs substrate, it offers high luminous intensity at 590 nm wavelength, ideal for backlighting and indicator use. It features a wide 120° viewing angle, low power consumption, and is RoHS compliant. Suitable for industrial electronics, it has a forward voltage of approximately 2.25 V at 20 mA, with a maximum power dissipation of 75 mW, and operates from -40°C to +85°C, ensuring reliable performance in diverse environments.
KINGBRIGHT KP1608SYCK Yellow Surface Mount LED Specifications:
- Size: 1.6 mm x 0.8 mm
- Thickness: 1.1 mm
- Wavelength: 590 nm
- Luminous Intensity: 150 mcd (typical)
- Viewing Angle: 120°
- Forward Voltage: 2.25 V at 20 mA
- Peak Forward Current: 175 mA
- Power Dissipation: 75 mW
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Material: AlGaInP on GaAs substrate
- Moisture Sensitivity Level: 3
- RoHS compliant
- Electrostatic Discharge Threshold: 3000 V
- Storage & Operating Humidity: Suitable for typical electronic environments
Buy the Kingbright KP-1608SYCK – Reliable Yellow LED for Industrial Applications
Order the Kingbright KP-1608SYCK yellow SMD LED online today to ensure superior brightness and reliability for your industrial, electronics, and indicator applications. This compact 1.6 x 0.8 mm LED features a wide viewing angle, low power consumption, and RoHS compliance, making it ideal for various backlight or signaling projects. Easy to mount with a recommended reflow soldering profile, it guarantees consistent performance in demanding environments. Enhance your electronic designs by purchasing this high-quality LED directly from authorized distributors online.
Buy Kingbright KP-1608SYCK now and experience high brightness and energy-efficient performance for your backlighting and indicator projects.
Frequently Asked Questions
Where can I buy KINGBRIGHT KP1608SYCK?
You can click on the BUY or RFQ button to purchase KP1608SYCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KP1608SYCK?
You can download the KP1608SYCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KP1608SYCK?
KINGBRIGHT
