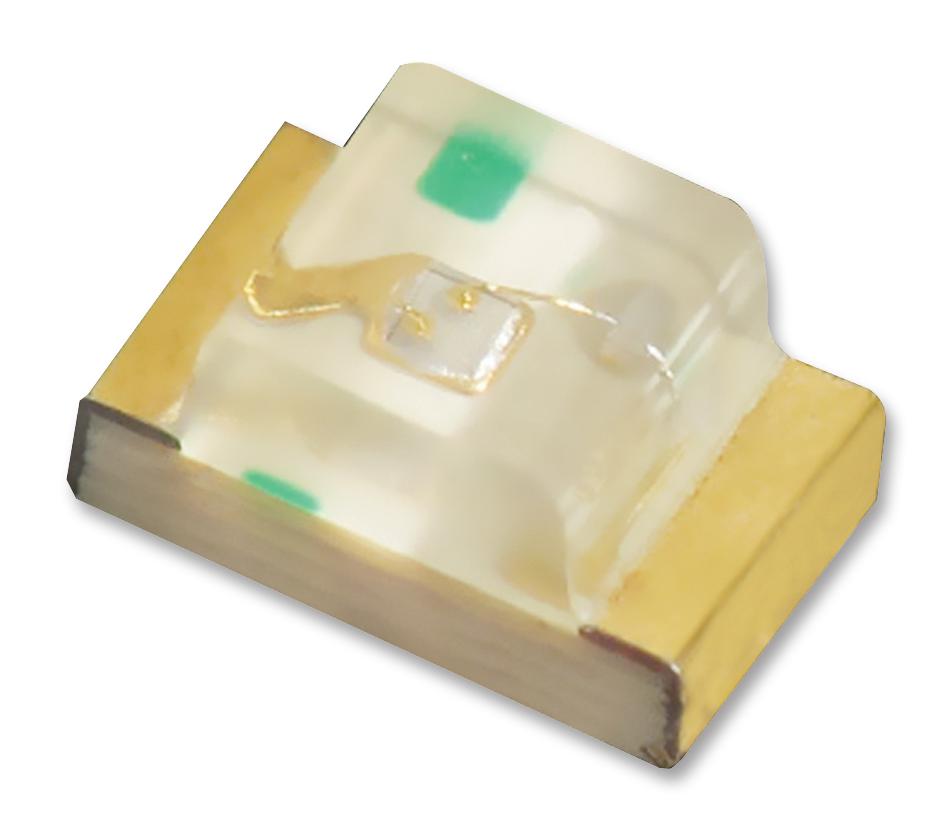

KINGBRIGHT KP2012CGCK green SMD LED
The KP-2012CGCK is a compact green SMD chip LED with a 2.0 x 1.25 mm size and 1.1 mm thickness, featuring a water-clear lens and low power consumption. It uses AlGaInP on GaAs substrate, providing a wide viewing angle and high brightness, ideal for backlighting and indicators in various electronic devices. This RoHS-compliant device has Level-3 moisture sensitivity, making it suitable for diverse industrial applications. Proper handling and static precautions are required to ensure optimal performance and longevity in LED lighting projects.
KINGBRIGHT KP2012CGCK green SMD LED Specifications:
- Size: 2.0mm x 1.25mm
- Thickness: 1.1mm
- Lens Type: Water Clear
- Material: AlGaInP on GaAs substrate
- Wavelength: 574 nm peak, 570 nm dominant
- Spectral Line Half-width: 20 nm
- Capacitance: 15 pF
- Forward Voltage: 24-25 V at 20 mA
- Forward Current: 30 mA (max), 150 mA (peak)
- Reverse Voltage: 5 V
- Power Dissipation: 75 mW
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Viewing Angle: 120°
- Moisture Sensitivity Level: 3
- RoHS Compliant
Buy the Kingbright KP-2012CGCK – Reliable Green LED for Industrial Applications
Discover the Kingbright KP-2012CGCK green SMD LED, designed for high-performance backlighting and indicator applications. This compact, low power consumption device features a 2.0 x 1.25 mm size, water-clear lens, and wide 120° viewing angle, making it ideal for diverse industrial projects. RoHS compliant and Level-3 moisture sensitive, it ensures durability and environmental safety. Order online today and enhance your electronic solutions with a trusted LED component known for brightness, reliability, and excellent optical performance.
Order your Kingbright KP-2012CGCK green SMD LED today and give your projects the dependable lighting solution they deserve with high brightness and wide viewing angles.
Frequently Asked Questions
Where can I buy KINGBRIGHT KP2012CGCK?
You can click on the BUY or RFQ button to purchase KP2012CGCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KP2012CGCK?
You can download the KP2012CGCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KP2012CGCK?
KINGBRIGHT
