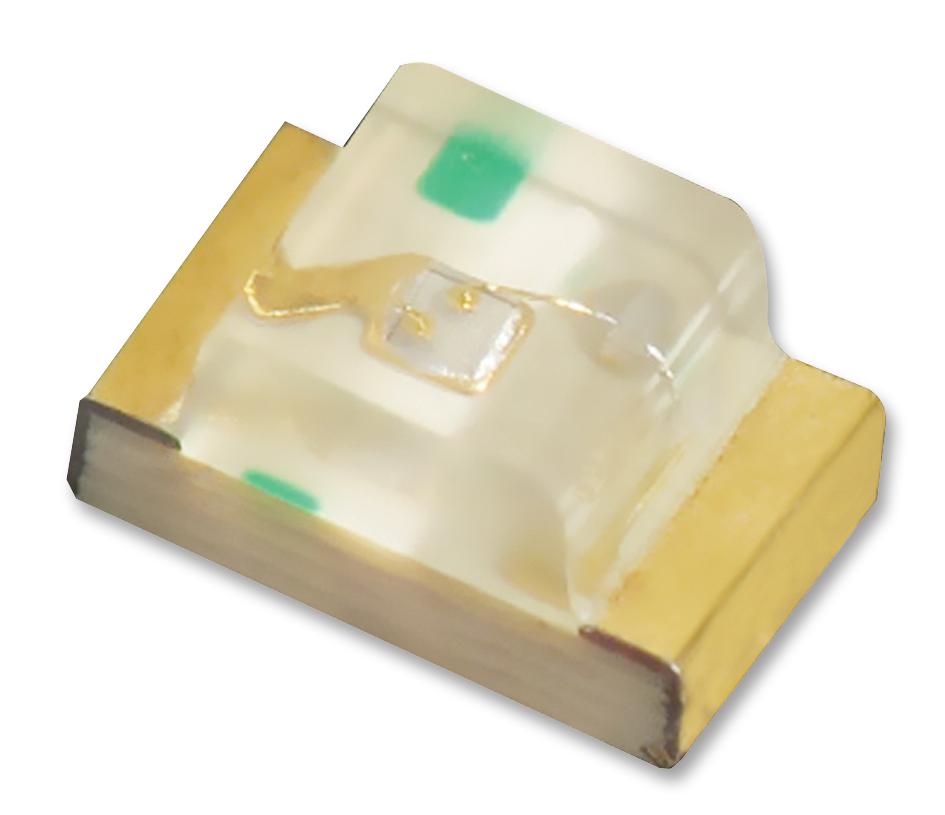

KINGBRIGHT KP2012F3C Infrared LED
The KP-2012F3C infrared emitting diode features a water-clear lens and a 120° viewing angle, optimized for infrared illumination in cameras, remote controls, and data transmission systems. Made with gallium arsenide, it is housed in a compact, 2.0x1.25mm SMT package with a thickness of 1.1mm, ensuring easy integration for industrial electronics, machine vision, and surveillance applications. Its spectral wavelength peaks at 940 nm with a max forward voltage of 1.6V at 20mA. The device operates within -40°C to +85°C, supports 50mA forward current, and is RoHS compliant for environmentally friendly manufacturing.
KINGBRIGHT KP2012F3C Infrared LED Specifications:
- Package Size: 2.0x1.25mm SMT, thickness 1.1mm
- Lens Type: Water Clear
- Viewing Angle: 120°
- Wavelength: Peak at 940 nm
- Forward Voltage: 1.2V typical at 20mA, Max 1.6V
- Reverse Current: 10μA at 5V
- Capacitance: 90 pF at 0V, 1MHz
- Peak Spectral Wavelength: 940 nm
- Spectral Bandwidth: 50 nm
- Power Dissipation: 80 mW
- DC Forward Current: 50 mA
- Peak Forward Current: 12 mA at 1/100 duty cycle, 10s pulse
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- RoHS Compliant
Buy the Kingbright Series Infrared LED: KP-2012F3C
Purchase the Kingbright KP-2012F3C infrared LED online today and enhance your electronic projects with reliable IR illumination. Featuring a water-clear lens and 120° viewing angle, this compact device offers a peak wavelength of 940 nm, a low forward voltage of 1.2V at 20mA, and operates in a temperature range from -40°C to +85°C. Its RoHS compliance ensures environmentally friendly manufacturing, making it ideal for cameras, remote controls, and industrial systems. Order now for fast delivery and consistent performance.
Buy Kingbright KP-2012F3C now and experience high-performance infrared illumination perfect for camera, remote control, and industrial applications.
Frequently Asked Questions
Where can I buy KINGBRIGHT KP2012F3C?
You can click on the BUY or RFQ button to purchase KP2012F3C from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KP2012F3C?
You can download the KP2012F3C datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KP2012F3C?
KINGBRIGHT
