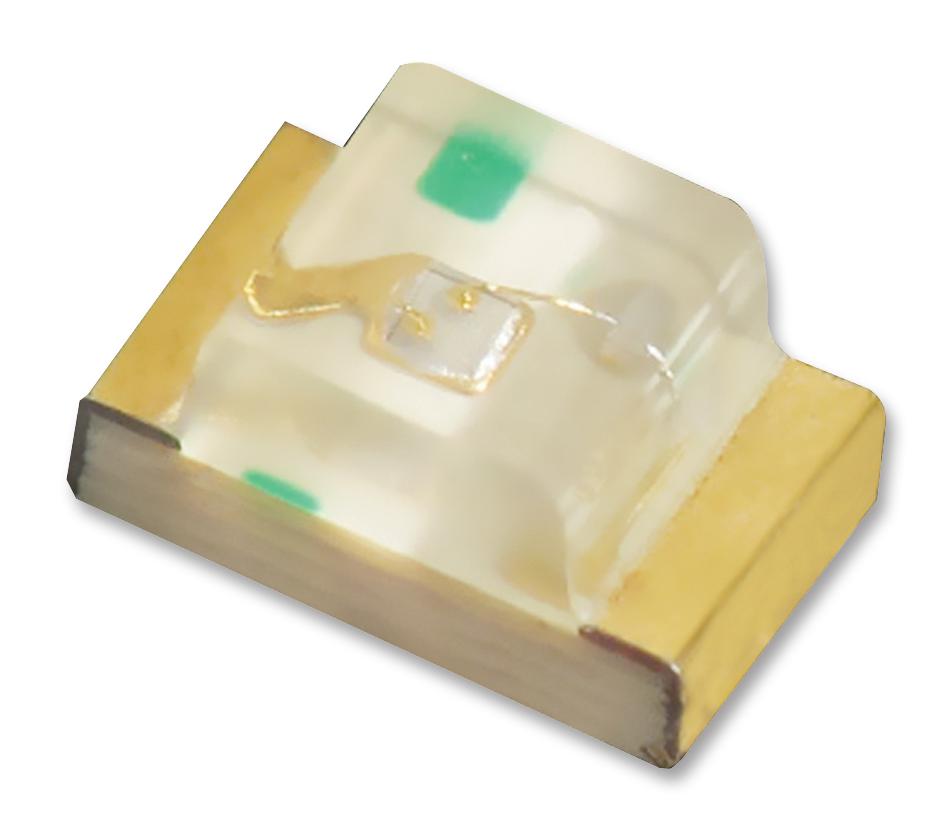

KINGBRIGHT KP2012SF4C Infrared Emitting Diode
The KP-2012SF4C infrared emitter diode features a gallium aluminum arsenide construction with a water-clear lens, optimized for precise infrared signaling and detection. Its compact size of 2.0mm by 1.25mm and 1.1mm thickness makes it ideal for space-constrained electronic devices. It offers high radiant intensity at 880 nm wavelength, with a typical forward voltage of 1.3V at 20mA current, and a maximum operating temperature of 85°C. The device is compatible with surface-mount technology and suitable for various automation and remote control applications.
KINGBRIGHT KP2012SF4C Infrared Emitting Diode Specifications:
- Material: Gallium Aluminum Arsenide
- Lens Type: Water Clear
- Wavelength: 880 nm
- Forward Voltage: 1.3V at 20mA (max 1.6V)
- Reverse Current: 10 μA at 5V
- Capacitance: 90 pF
- Peak Spectral Wavelength: 880 nm
- Spectral Bandwidth: 50 nm
- Power Dissipation: 80 mW
- DC Forward Current: 50 mA
- Peak Forward Current: 12 mA
- Reverse Voltage: 5 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Package: 2000 pcs per reel
- Moisture Sensitivity Level: 3
- RoHS Compliant
- Reflow Soldering Profile: Max temperature 260°C, recommended 245°C
- Dimensions: 2.0mm x 1.25mm x 1.1mm thickness
Buy the Buy Kingbright Infrared Emitting Diode Part Number KP2012SF4C Online
Order the Kingbright KP2012SF4C infrared emitting diode online now to enhance your remote control, detection, or automation project. Designed with gallium aluminum arsenide and water-clear lens, it offers reliable infrared light at 880 nm wavelength, high radiant intensity, and stable operation up to 85°C. Compact size, RoHS compliance, and suitability for surface-mount technology make it ideal for space-efficient designs. Secure your supply of this high-quality infrared LED today for precise and durable performance in your applications.
Get Kingbright KP2012SF4C today—optimized for infrared signaling and long-lasting durability.
Frequently Asked Questions
Where can I buy KINGBRIGHT KP2012SF4C?
You can click on the BUY or RFQ button to purchase KP2012SF4C from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KP2012SF4C?
You can download the KP2012SF4C datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KP2012SF4C?
KINGBRIGHT
