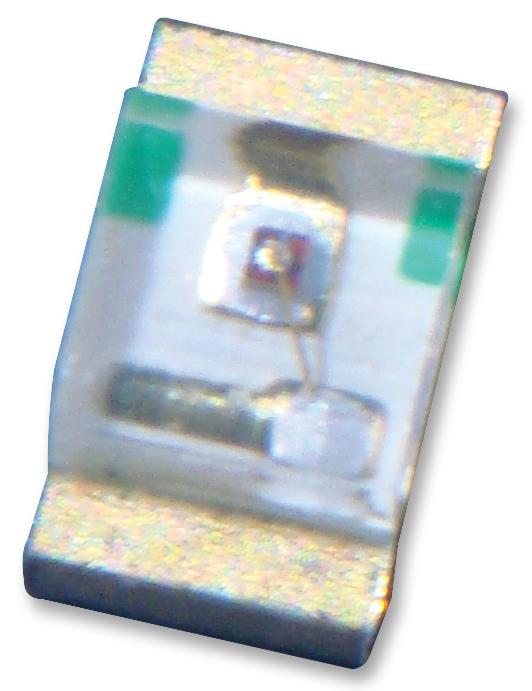

KINGBRIGHT KP2012SGC Green LED
The KP-2012SGC is a compact 2.0x1.25mm surface-mount LED with a water-clear lens, emitting bright green light through gallium phosphide technology. It offers low power consumption and a wide view angle of 120°, making it ideal for backlight and indicator uses. Rated for operation at -40°C to +85°C, it features a maximum forward voltage of 25V at 20mA, with peak wavelength at 565nm. This RoHS-compliant LED is suitable for electronic signaling, display, and lighting applications, providing reliable performance in various environments.
KINGBRIGHT KP2012SGC Green LED Specifications:
- Dimensions: 2.0mm x 1.25mm x 1.1mm thickness
- Wavelength: 565 nm (peak), 568 nm (dominant)
- Spectral line width: 30 nm
- Forward Voltage: 22-25V at 20mA
- Maximum Power Dissipation: 62.5 mW
- Peak Forward Current: 140 mA
- Reverse Voltage: 5V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Luminous Intensity: Min 8, Typ 15, Max 120° viewing angle
- Made with gallium phosphide, RoHS compliant, moisture sensitivity level 3
- Package: 2000 pcs per reel, water-clear lens, refractor type
Buy the Buy Kingbright LED Part Number KP-2012SGC Online
Purchase the Kingbright KP-2012SGC LED online now for high efficiency, bright green illumination, and durable design. Perfect for backlighting, indicators, and electronic displays. This compact SMD component has water-clear lenses, wide viewing angles of 120°, and operates efficiently from -40°C to +85°C. Ideal for various applications needing reliable, visually appealing signals. With fast delivery, competitive pricing, and RoHS compliance, buy now to upgrade your electronic assemblies with a trusted, bright green LED that offers excellent performance and long-term stability.
Order your Kingbright Series KP-2012SGC bright green LED today and enhance your electronic signaling projects with reliable, high-quality illumination.
Frequently Asked Questions
Where can I buy KINGBRIGHT KP2012SGC?
You can click on the BUY or RFQ button to purchase KP2012SGC from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KP2012SGC?
You can download the KP2012SGC datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KP2012SGC?
KINGBRIGHT
