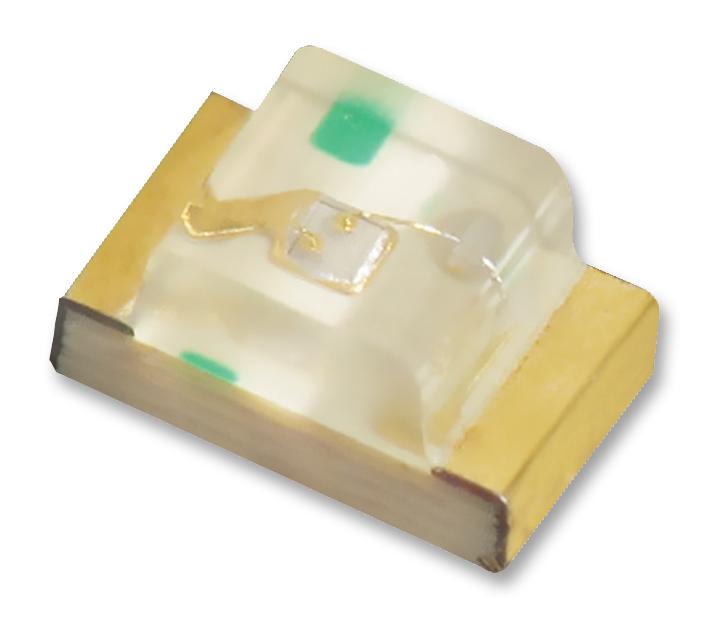

KINGBRIGHT KP2012SRCJ4 Red SMD LED
The KP-2012SRC-J4 is a 2 x 1.25mm super bright red SMD chip LED with a water-clear lens. It features a high-brightness red light source made from AlGaInP on a silicon substrate. This LED offers low power consumption and a wide viewing angle, making it ideal for use in backlighting and indicator applications. Suitable for LED lighting and signaling purposes.
KINGBRIGHT KP2012SRCJ4 Red SMD LED Specifications:
- Size: 2.0mm x 1.25mm, thickness 1.1mm
- Material: AlGaInP on Si substrate
- Lens Type: Water clear
- Viewing Angle: 120°
- Peak Wavelength: 660 nm
- Dominant Wavelength: 640 nm
- Spectral Line Half-width: 20 nm
- Forward Voltage: 2.4V to 2.5V at 20mA
- Reverse Current: 10 μA at 5V
- Power Dissipation: 75 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 150 mA
- Reverse Voltage: 5V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Package: 2000 pcs per reel
- Moisture Sensitivity Level: Level 3
- RoHS Compliant
- Soldering Profile: Reflow temperature 245°C (+/-5°C), maximum 260°C, two reflow cycles maximum
Buy the Kingbright KP2012SRCJ4 – Reliable Red SMD LED for Industrial Applications
Order the Kingbright KP2012SRCJ4 LED online today and enhance your electronic projects with a super bright, low power consumption red SMD LED. Designed with a wide viewing angle of 120°, water-clear lens, and durable packaging, this LED is perfect for backlighting and indicator functions. Its efficient performance ensures long-lasting operation and compliance with RoHS standards. Click now to secure your supply of this high-quality, reliable LED component for your industrial and signaling applications.
Buy Kingbright KP2012SRCJ4 now and experience unmatched reliability and high brightness for backlighting and indicator applications.
Frequently Asked Questions
Where can I buy KINGBRIGHT KP2012SRCJ4?
You can click on the BUY or RFQ button to purchase KP2012SRCJ4 from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KP2012SRCJ4?
You can download the KP2012SRCJ4 datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KP2012SRCJ4?
KINGBRIGHT
