KINGBRIGHT KP2012SRCPRV Super Bright Red SMD LED

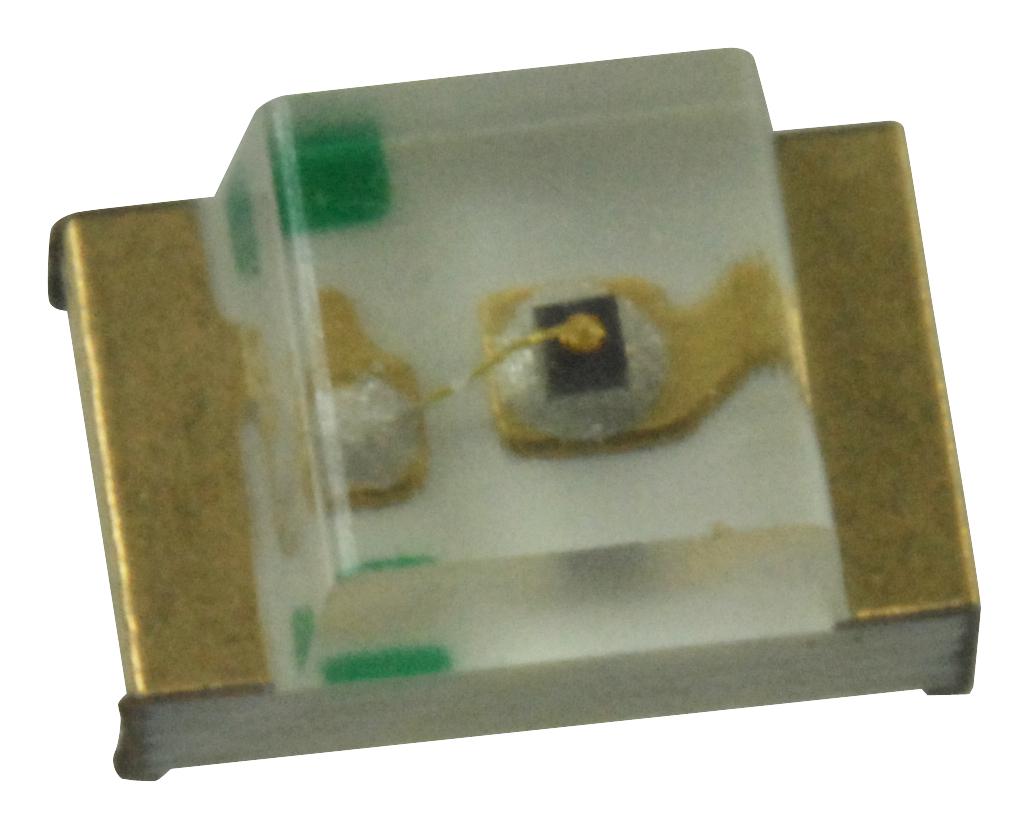

The KP-2012SRC-PRV is a 2.0 x 1.25mm super bright red SMD ceramic chip LED with a water-clear lens. It features a gallium aluminium arsenide red light emitting diode that provides high brightness with low power consumption. The device offers a wide viewing angle of 120° and is ideal for backlighting and indicator applications in various electronic projects. It supports reflow soldering with a recommended profile at 245°C, operating temperature from -40°C to +85°C, and has a maximum forward current of 30 mA. The package includes 2000 pieces per reel, RoHS compliant, and suitable for industrial use and LED lighting systems.
KINGBRIGHT KP2012SRCPRV Super Bright Red SMD LED Specifications:
- Size: 2.0 x 1.25 mm
- Thickness: 1.1 mm
- Lens Type: Water Clear
- Wavelength: 660 nm (peak), 640 nm (dominant)
- Spectral Line Half-width: 20 nm
- Viewing Angle: 120°
- Luminous Intensity: Min. 55 mcd, Typ. 100 mcd
- Forward Voltage: Max. 1.85 V at 20mA
- Forward Current: Max. 30 mA
- Peak Forward Current: 155 mA
- Reverse Voltage: 5 V
- Power dissipation: 75 mW
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Soldering Profile: Reflow at 245°C (+/-5°C), max 2 reflows
- Package: 2000 pcs per reel, RoHS compliant
Buy the Kingbright KP-2012SRC-PRV – Reliable Red LED for Industrial Applications
Enhance your electronic projects with the reliable and bright super red SMD LED. The KP-2012SRC-PRV offers wide viewing angles, low power consumption, and excellent brightness for backlighting and signaling. Suitable for industrial, automotive, and general LED lighting systems, this component ensures consistent performance with a robust design. Available in reels of 2000 pieces, RoHS compliant, and designed for reflow soldering, it's the perfect choice for professionals demanding quality and durability in LED components.
Order your Kingbright series KP-2012SRC-PRV today and give your projects the dependable quality they deserve, perfect for backlighting and indicators in industrial electronics.
