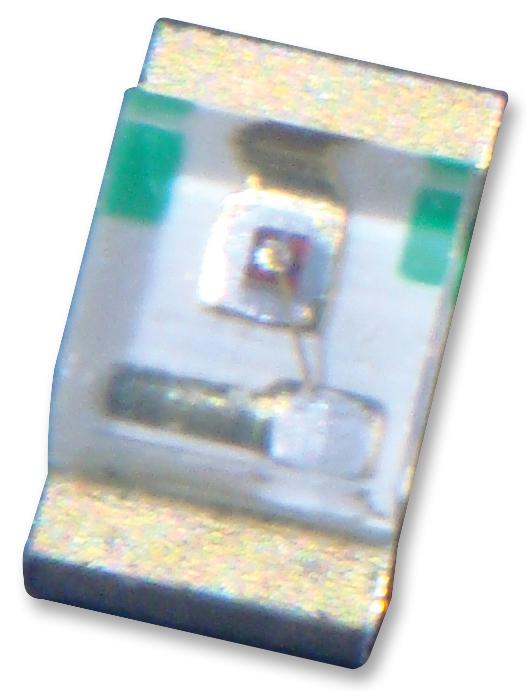

KINGBRIGHT KP2012YC Yellow SMD LED
The KP-2012YC is a yellow SMD chip LED measuring 2 x 1.25mm with a water-clear lens, made using gallium arsenide phosphide on gallium phosphide for bright yellow emission. It has low power consumption, a wide viewing angle of 120°, and is suitable for backlighting and indicator applications. This RoHS-compliant LED is ideal for LED lighting, signaling, and display purposes, providing high reliability and efficiency in compact form factors. Suitable for use in various electronic devices requiring indicators or illumination.
KINGBRIGHT KP2012YC Yellow SMD LED Specifications:
- Size: 2.0 x 1.25 mm
- Thickness: 1.1 mm
- Lens Type: Water Clear
- Luminous Intensity: Min. 3, Typ. 8, Max. 120 mcd at 20mA
- Wavelength: Peak 590 nm, Dominant 588 nm
- Spectral Line Half-width: 35 nm
- Capacitance: 20 pF
- Forward Voltage: 24-25 V at 20mA
- Reverse Current: 10 μA at 5 V
- Power Dissipation: 75 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 140 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- RoHS compliant
- Package: 2000 pcs per reel
Buy the Kingbright KP2012YC – Reliable Yellow SMD LED for Industrial Applications
Order the Kingbright KP-2012YC yellow SMD LED today for high-quality illumination and signaling solutions. Featuring a compact 2 x 1.25mm size, wide 120° viewing angle, and low power consumption, this LED is perfect for backlighting, displays, and indicator light applications. RoHS compliant and suitable for various electronic projects, it ensures durability and efficiency. Available in 2000-piece reels, it guarantees quick delivery and excellent performance for industrial and commercial uses. Make your purchase now to enhance your electronic designs.
Buy Kingbright KP2012YC now and experience unmatched reliability and performance in your LED lighting and indicator projects.
Frequently Asked Questions
Where can I buy KINGBRIGHT KP2012YC?
You can click on the BUY or RFQ button to purchase KP2012YC from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KP2012YC?
You can download the KP2012YC datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KP2012YC?
KINGBRIGHT
