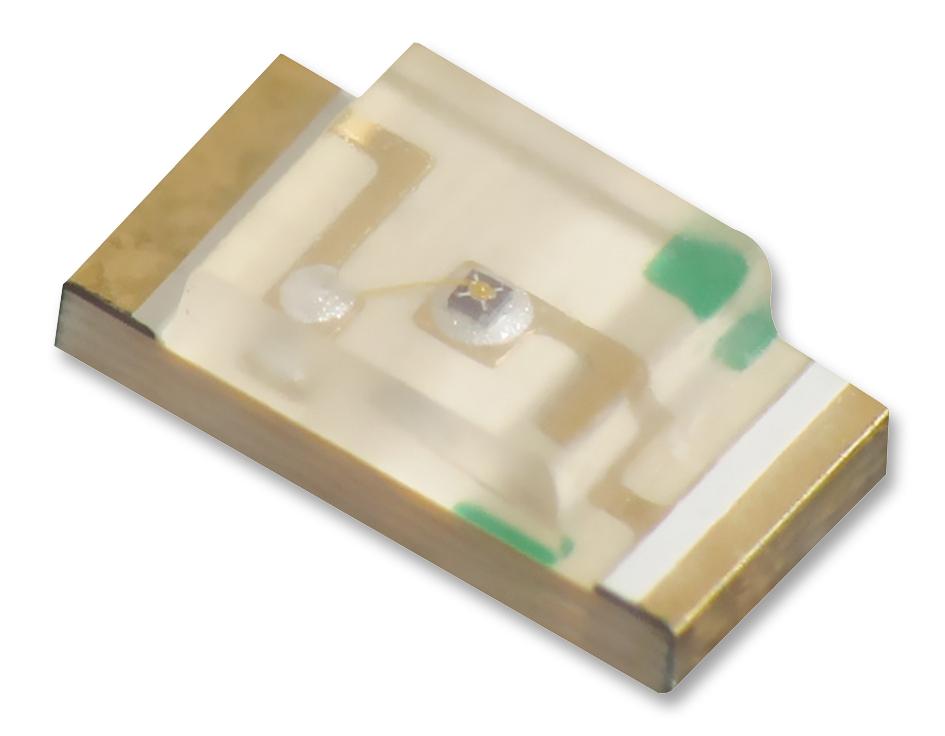

KINGBRIGHT KP3216CGCK Surface-Mount Green LED
The KP-3216CGCK is a green surface-mount device (SMD) chip LED lamp featuring a water-clear lens. The green light source utilizes AlGaInP technology on a GaAs substrate. This LED is ideal for backlighting and indicator applications. It measures 3.2 x 1.6 mm with a thickness of 1.1 mm, offering low power consumption and a wide viewing angle. Certified with Level-3 moisture sensitivity, it is suitable for various LED lighting applications. Please note that high market demand may affect lead times and delivery schedules. The device is sensitive to electrostatic discharge (ESD); proper handling precautions, such as wearing anti-static wristbands and suits, are essential during installation.
KINGBRIGHT KP3216CGCK Surface-Mount Green LED Specifications:
- Dimensions: 3.2mm x 1.6mm x 1.1mm thickness
- Color: Green (AlGaInP on GaAs substrate)
- Lens Type: Water Clear
- Peak Wavelength: 574 nm
- Dominant Wavelength: 570 nm
- Luminous Intensity: 50 mcd (min), 120° viewing angle
- Forward Voltage: 2.4V to 2.5V at 20mA
- Reverse Current: 10 μA at 5V
- Power Dissipation: 75 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 150 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level: 3
- RoHS Compliant
Buy the Buy Kingbright Green Part Number KP3216CGCK Online
Purchase the Kingbright surface-mount green LED with water-clear lens online today. Ideal for backlighting and indicator use, it offers low power consumption, wide viewing angle, and high reliability. Measuring 3.2x1.6 mm with a thickness of 1.1 mm, this RoHS-compliant LED is suitable for various lighting applications. Its moisture sensitivity level is 3, ensuring durability in different environments. Secure your supply of premium LED technology with a simple online order and enjoy fast delivery and excellent performance for your projects.
Buy Kingbright KP3216CGCK now and experience unmatched reliability and performance in LED indicator solutions.
Frequently Asked Questions
Where can I buy KINGBRIGHT KP3216CGCK?
You can click on the BUY or RFQ button to purchase KP3216CGCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KP3216CGCK?
You can download the KP3216CGCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KP3216CGCK?
KINGBRIGHT
